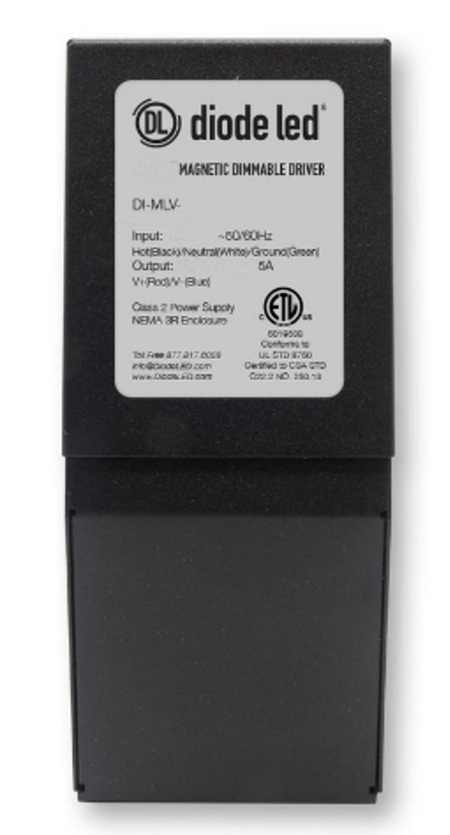

Diode LED Magnetic Low Voltage (MLV) Dimmable Driver 24V, 60W (DI-MLV-24V60W)

Product Overview

The Diode LED DI-MLV-24V60W is a magnetic dimmable LED driver that provides a regulated 24 VDC constant-voltage output rated for up to 60 W for low-voltage LED tape and fixtures.

This model is dimmable with many common magnetic low-voltage (MLV) dimmers, includes internal primary and secondary auto‑reset protection, and carries a 5‑year limited warranty from the manufacturer.

Key Features

• 24 VDC constant-voltage output
• 60 W maximum load
• Magnetic-dimmable (compatible with many common MLV dimmers)
• Internal primary and secondary auto‑reset protection
• NEMA 3R environment rating (listed for indoor/damp locations)
• 5‑year limited warranty

What this driver does

The DI-MLV-24V60W supplies regulated constant-voltage power at 24 VDC for low-voltage LED tape and fixtures. It is rated for a maximum output power of 60 W.

• Output: 24 VDC constant voltage
• Maximum load: 60 W

Dimming compatibility and recommended dimmers

This magnetic dimmable driver is compatible with many common magnetic low-voltage (MLV) dimmers. The manufacturer lists several recommended dimmer families for use with its MLV drivers; verify specific dimmer model compatibility for your installation.

• Compatible with many MLV dimmers — verify model compatibility before installation
• Manufacturer provides recommended dimmer families for MLV drivers

Electrical requirements and protection

Follow national and local electrical codes when installing. The product family specifies 120 VAC input. Use copper wiring rated for at least 176°F (80°C) where required. Each maximum run should receive a dedicated power feed from the driver; consider voltage drop and wire gauge for longer runs.

The driver includes internal primary and secondary auto‑reset protection and is Class 2 rated.

• Input (product family): 120 VAC
• Output: 24 VDC constant-voltage, Class 2
• Internal protection: primary and secondary auto‑reset
• Use copper conductors rated ≥176°F (80°C) where applicable

Mounting orientation and physical notes

The magnetic dimmable driver must be mounted vertically; mounting it horizontally or upside down may void the warranty. Reference the manufacturer's mechanical diagrams for exact dimensions and mounting clearances for the 24 V 60 W model.

• Mount vertically — warranty may be void if mounted horizontally or upside down
• Refer to manufacturer's mechanical diagram for precise dimensions

Typical applications

Suitable for powering low-voltage LED tape and fixtures in commercial and residential lighting projects where a 24 V constant-voltage supply and MLV dimming are required. Confirm total connected load does not exceed 60 W and that runs, wiring, and controls meet Class 2 and voltage-drop considerations.

• Low-voltage LED tape and fixtures
• Commercial and residential lighting runs
• Retrofit and new-construction low-voltage installations

Before You Order

Verify the DI-MLV-24V60W is the correct model and that the total connected LED load does not exceed 60 W at 24 VDC.

• Confirm model and quantity
• Verify dimmer compatibility with MLV drivers
• Ensure connected load ≤ 60 W at 24 VDC
• Product must be installed by a qualified, licensed electrician per local codes

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Magnetic Low Voltage (MLV) Dimmable Driver 24V, 60W (DI-MLV-24V60W). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
