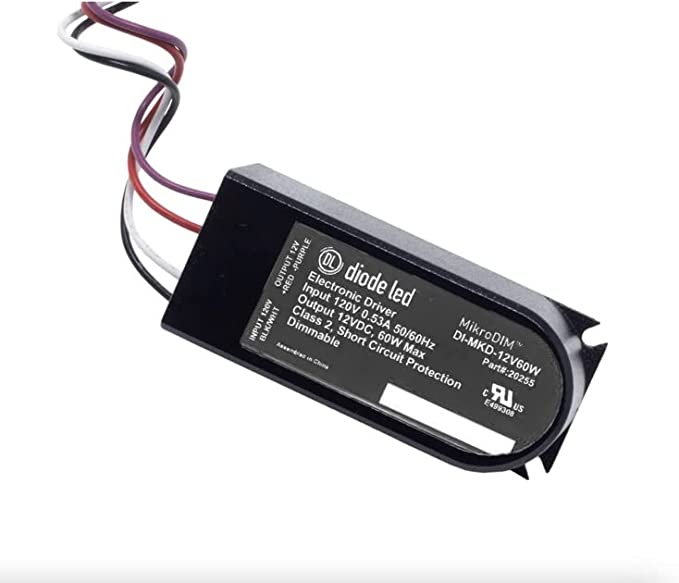

Diode LED MikroDIM Electronic Dimmable Driver - 12V, 60W (DI-MKD-12V60W)

Product Overview

The Diode LED MikroDIM DI-MKD-12V60W is a 12 VDC, 60 W constant-voltage electronic dimmable driver for compatible low-voltage LED lighting.

It accepts 120 VAC input, has Class 2 output and requires no minimum load. The driver is rated for indoor or damp locations and has an IP20 case.

Key Features

• 12 VDC constant-voltage output with a maximum load of 60 W
• Electronic low-voltage (ELV) dimming; no minimum load
• Class 2 output and wire input/output connections
• Dimensions: 3.05 × 1.36 × 1.03 in. (L × W × H)

12 V Constant-Voltage Output for Loads up to 60 W

The DI-MKD-12V60W provides regulated 12 VDC constant-voltage output and supports a maximum load of 60 W. Select it for compatible 12 V LED tape or fixtures, keeping the connected load within the driver's maximum rating.

The driver accepts 120 VAC input and has Class 2 output. Its specified efficiency is 85%, with power factor greater than 0.9.

ELV Dimming and Listed Lighting Options

This MikroDIM driver uses electronic low-voltage (ELV) dimming and has no minimum load. Listed dimmers are Lutron Caseta PD-5NE, Diva DVELV-300P and Maestro MAELV-600.

Listed tape-light families are BLAZE, BLAZE Wet Location, BLAZE X, BLAZE X Wet Location, BLAZE COLORS, BLAZE Mini and NEON BLAZE. The driver is not for use with AlphaTECH X, GRAZE X, STREAMLITE, VALENT or VALENT X tape lights. Use with AFCI breakers is not recommended.

Indoor and Damp-Location Rating

The driver is rated for indoor or damp locations and has an IP20 case. Its specified working humidity is 10–90% RH, non-condensing. The manufacturer lists an ambient temperature range of -4 to 113°F (-20 to 45°C) and an operating temperature range of -40 to 176°F (-40 to 80°C).

Dimensions and Installation Requirements

The DI-MKD-12V60W measures 3.05 × 1.36 × 1.03 in. (78 × 35 × 27 mm), in length, width and height. Input and output connections are wire type.

The manufacturer specifies installation and service by a qualified, licensed electrician in accordance with applicable national and local electrical codes. Follow the product specifications for wiring and maximum run requirements.

Before You Order

Confirm that the connected lighting is rated for 12 VDC and that its total load does not exceed 60 W.
