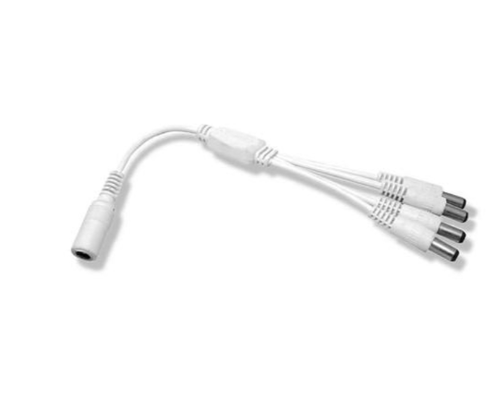

Diode LED 4-Way DC Splitter, White, 25 Pack (DI-DCSP4-25)

Product Overview

The Diode LED DI-DCSP4-25 is a white 4-way DC splitter that splits power from a plug-in adapter to four male DC plugs. It is supplied as a 25-pack.

Its maximum load is 60W at 12V or 100W at 24V. Confirm the connected system’s voltage, load, connector type, and polarity before use.

Key Features

• Splits power from one plug-in adapter to four male DC plugs.
• Maximum load: 60W at 12V or 100W at 24V.
• White finish; package quantity is 25.
• 22/2 AWG wire; dimensions are 8.0 x 0.60 in. (length x diameter).

What the 4-Way DC Splitter Does

The DI-DCSP4-25 splits power from a plug-in adapter to four male DC plugs.

Voltage and Maximum Load

The splitter is listed for 12VDC and 24VDC systems, with a different maximum load for each voltage.

• 12VDC: maximum 60W
• 24VDC: maximum 100W

Indoor Use and Routing Limits

This DC plug accessory is for indoor, dry environments only. It is not rated for in-wall installation, and its cords must not be routed through building structures. Do not exceed the maximum load for the system voltage.

Pack Quantity and Dimensions

The DI-DCSP4-25 is the white 25-pack version of the 4-way DC splitter. It uses 22/2 AWG wire and measures 8.0 x 0.60 inches, listed as length by diameter.

Before You Order

Confirm connector type and polarity, system voltage, and total load are compatible with the connected components and the splitter’s maximum load.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED 4-Way DC Splitter, White, 25 Pack (DI-DCSP4-25). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
