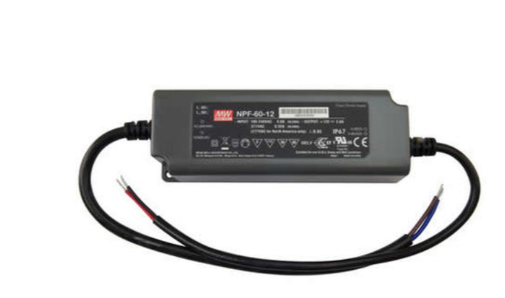

Diode LED Commercial Grade 12V DC Constant Voltage Driver, 60W, 120-277V AC (DI-CV-MW12V60W-277)

Product Overview

The Diode LED DI-CV-MW12V60W-277 is a constant-voltage LED driver that provides 12 VDC output up to 60 W from a 120–277 VAC input.

It has a Class 2 rated output intended for powering low-voltage LED tape and compatible 12 V LED fixtures.

Key Features

• 120–277 VAC universal input
• 12 VDC constant-voltage output
• 60 W maximum output power
• Class 2 output

What this driver does

Provides a regulated 12 VDC constant-voltage output capable of delivering up to 60 W for low-voltage LED tape and 12 V LED fixtures. Accepts a 120–277 VAC input.

• Delivers 12 VDC constant-voltage output (up to 60 W)
• Accepts 120–277 VAC input

Typical applications

Used to power 12 V LED tape, strips, and compatible low-voltage LED fixtures in commercial and residential lighting projects, including retrofit and new-construction installations.

• 12 V LED tape and strip lighting
• Low-voltage LED fixtures

Electrical input/output and load limits

Connect where a 120–277 VAC supply is available. Ensure the combined connected load does not exceed the driver's 60 W rating at 12 VDC.

• Input: 120–277 VAC
• Output: 12 VDC constant voltage
• Maximum output power: 60 W
• Class 2 output

Installation and code-related notes

The product has a Class 2 output. Confirm the driver's 12 VDC constant-voltage output is compatible with the LED products being powered and follow local electrical codes during installation.

• Confirm voltage and total wattage of connected LED products prior to installation
• Follow local wiring codes and standard Class 2 practices

Key specifications

Verified product details for specification and planning.

• Brand: Diode LED
• Model / SKU: DI-CV-MW12V60W-277
• Product type: LED Driver
• Input voltage: 120–277 VAC
• Output voltage: 12 VDC
• Wattage: 60 W
• Output type: Constant Voltage
• Class rating: Class 2

Before You Order

Confirm total connected LED wattage does not exceed 60 W at 12 VDC.

• Verify LED tape/fixture voltage is 12 VDC and combined wattage ≤ 60 W
• Confirm site supply matches 120–277 VAC

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Commercial Grade 12V DC Constant Voltage Driver, 60W, 120-277V AC (DI-CV-MW12V60W-277). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
