Diode LED CLICKTIGHT Splice Connector: AV/BL/FV - White, 96 in, Diode Window, 2464 wire, 5 Pack, 5 Pack (DI-CKT-96SP8-5)

Product Overview

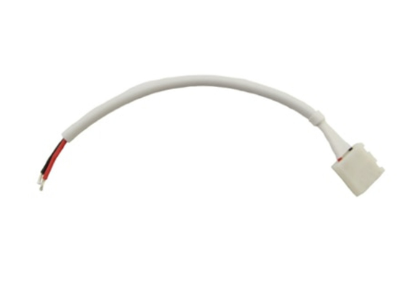

The Diode LED DI-CKT-96SP8-5 is an 8 mm ClickTight splice connector that attaches compatible LED tape light directly to a hard-wired connection. This SKU is supplied as a 5-pack for multi-run installations and repairs.

Select ClickTight splice connectors include an LED chip window that allows the tape to seat deeper under the ClickTight terminals. This model includes a wire lead using UL 2464 20/2 cable.

Key Features

• 8 mm ClickTight splice connector with LED chip window
• Specified for AVENUE 24, BLAZE and FLUID VIEW 8 mm tape families
• Wire: UL 2464 20/2 AWG
• Dimensions: 96.00" x 0.50" x 0.20" (L x W x H)
• Supplied as a 5-pack
• Compact profile intended to fit shallow channels and tight corners

What this connector does

The DI-CKT-96SP8-5 is a ClickTight splice connector that provides a solderless connection to attach compatible LED tape to a hard-wired power lead. The design secures the tape under ClickTight terminals and includes a fixed wire lead for wiring.

• Solderless splice for feeding power to tape lighting runs
• LED chip window on 8 mm models allows the tape to seat deeper under the terminals

Compatible tape light families

This 8 mm ClickTight splice is specified for Diode LED AVENUE 24, BLAZE and FLUID VIEW tape light families. Use with the tape types listed by the manufacturer.

• Specified for: AVENUE 24, BLAZE, FLUID VIEW (8 mm tape families)

Wire and electrical details

The connector includes a wire lead using UL 2464 20/2 AWG. It is intended for low-voltage DC tape light installations; confirm system voltage and model compatibility before use and follow all national and local electrical codes.

• Wire type: UL 2464 20/2 AWG
• Confirm system voltage and compatibility before installation

Size and packaging

The DI-CKT-96SP8-5 is supplied as a 96-inch length splice in a pack of five connectors. The compact cross-section is intended to fit shallow channels and tight corners.

• Dimensions (L x W x H): 96.00" x 0.50" x 0.20"
• Color: White
• Package quantity: 5

Installation and safety notes

Follow the manufacturer's installation guidance and applicable electrical codes. The manufacturer documentation states these accessories are suitable for indoor, dry environments only and are not rated for in-wall installations.

• Turn main power off before installing or servicing
• Do not route cords through building structures or use for in-wall installations
• Do not modify the product beyond instructions; warranty may be affected
• Observe Class 2 load limits

Before You Order

Confirm the tape family and connector length required for your project before ordering. Verify system voltage and suitability for indoor/dry installations.

• Confirm tape family (AVENUE 24, BLAZE, FLUID VIEW) matches your tape
• Verify connector length (96") and pack quantity (5)
• These connectors are not rated for in-wall installations

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED CLICKTIGHT Splice Connector: AV/BL/FV - White, 96 in, Diode Window, 2464 wire, 5 Pack, 5 Pack (DI-CKT-96SP8-5). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
