Diode LED ATTRIBUTE RGB(W) Color Controller and Receiver (DI-ATT-RGBW-REM)

Product Overview

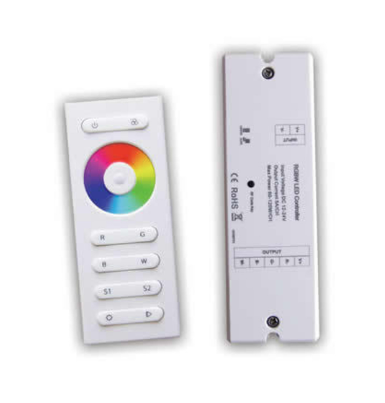

The Diode LED DI-ATT-RGBW-REM is an ATTRIBUTE single-zone RF control system for compatible 12–24V DC constant-voltage RGB and RGBW LED lighting. It includes a receiver and radio-frequency remote.

Use the remote’s color wheel for RGB color mixing or choose from 10 dynamic color modes. The system uses PWM output and supports a fourth white channel for RGBW applications.

Key Features

• Single-zone RF control for compatible 12–24V DC constant-voltage LED loads
• RGB color wheel and 10 dynamic color modes
• Four-channel PWM output, rated up to 5A per channel
• Remote requires three AAA 1.5V batteries, not included

RGB and RGBW Color Control

The ATTRIBUTE system provides single-zone control for compatible RGB and RGBW LED lighting. Use the remote’s color wheel to mix RGB colors, select from 10 dynamic modes, or adjust RGB brightness. The remote also includes controls for individual color channels and saved static colors.

For RGBW installations, the fourth channel controls white separately. The remote also offers RGB white presets for applications that do not use a separate white channel.

Voltage and Output Capacity

The receiver accepts 12–24V DC constant-voltage input from a compatible Class 2 LED driver and provides 12–24V DC constant-voltage output to the load. Its PWM output is rated at up to 5A per channel.

• Maximum listed load: 4 channels × 5A
• Maximum listed power: 4 channels × 60W at 12V, or 4 channels × 100W at 24V

RF Remote and Operating Range

The remote communicates with the receiver by radio frequency at 434MHz or 868MHz and has a listed range of 95 feet. The receiver can be synced with and controlled by only one remote. The remote requires three AAA 1.5V batteries, which are not included.

Compatible Loads and Installation Conditions

Diode LED lists Dazzle 24 RGB, Dazzle 24 RGBW, and True Focus RGB among the compatible luminaires. The product is for indoor use only and is not protected against moisture.

Installation requires a compatible 12V or 24V DC constant-voltage LED driver; do not connect the product directly to high-voltage power. Diode LED specifies installation and service by a qualified, licensed electrician in accordance with applicable national and local electrical codes.

Before You Order

Confirm that the LED load is compatible, uses 12V or 24V DC constant voltage, and stays within the receiver’s listed output limits. This product is for indoor use only.

• The remote’s three AAA batteries are not included.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED ATTRIBUTE RGB(W) Color Controller and Receiver (DI-ATT-RGBW-REM). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
