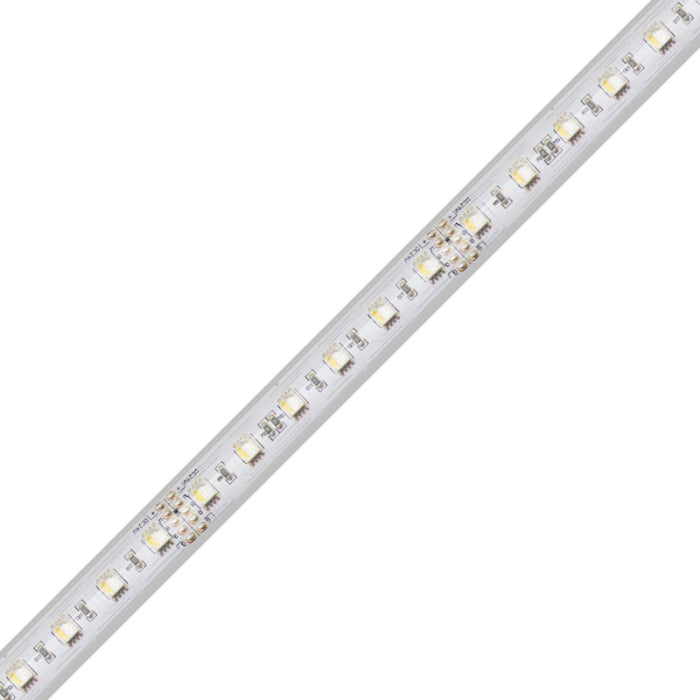

Diode LED DAZZLE 24 RGBW 4D LED Wet Location Strip Light - 24V, 16.4 ft (DI-24V-RGBW4-W016)

Product Overview

The Diode LED DAZZLE® DI-24V-RGBW4-W016 is a 24 V constant-voltage, wet-location-rated RGBW 4D LED tape light designed for color-changing linear illumination.

Sold as a 16.4 ft spool, it uses a quad-chip RGBW LED arrangement with increased LED density for saturated and blended colors, and is listed with a 12-year limited warranty.

Key Features

• Model: DI-24V-RGBW4-W016 — 24 VDC constant-voltage platform
• Length: 16.4 ft (maximum run per spool as shown on specification sheet)
• LEDs: 36 LED chips per foot (quad-chip RGBW configuration)
• Power: 6.4 W/ft (manufacturer specification)
• Beam angle: 120°
• Environment: Wet location — IP65
• Control compatibility: DMX and PWM-compatible controllers (manufacturer lists Nicolaudie DMX controllers and CASAMBI/PWM options)
• Warranty: 12 Year Limited (manufacturer)

What this tape light does

The DI-24V-RGBW4-W016 is a constant-voltage RGBW 4D tape light designed for saturated and pastel color effects using a quad-chip LED architecture. The manufacturer positions it for accent, cove, display and under-cabinet lighting where color control is required.

• Wet-location rated (IP65) for environments where a wet-location product is specified.
• Applications noted by the manufacturer include under-cabinet task lighting, cove and millwork accent lighting, and retail/display lighting.

Performance and output

Use the manufacturer-provided metrics below to size runs and estimate output. Photometric and colorimetry measurements are reported by the manufacturer.

• Power consumption: 6.4 W/ft (manufacturer specification).
• Reported lumen value (RGBW combined): 239 lm/ft (manufacturer photometry).
• LED density: 36 LED chips per foot (quad-chip RGBW).
• Beam angle: 120°.
• Field cut points: 4 in.

Drivers and controls

This tape light requires a 24 V constant-voltage driver sized above the total run wattage. The manufacturer lists compatible driver families and recommends controllers for color-changing control.

• Recommended driver families cited by the manufacturer include Meanwell constant-voltage models and the Diode LED VLM series — consult the manufacturer specifications for exact model selection and sizing.
• Control options listed by the manufacturer include DMX controllers (examples: Nicolaudie DMX controllers) and CASAMBI/PWM controllers.
• Each maximum run requires a dedicated power feed from the driver per the manufacturer; do not exceed the recommended maximum run without separate feeds.

Dimensions, mounting and connections

The tape is a 16 mm wet-location tape with low-profile dimensions and recommended channel/lens options from the manufacturer.

• Tape dimensions: 0.625 in. x 0.125 in. (W x H) / 16 mm x 4 mm.
• Recommended channels: MUD-IN 1 and MUD-IN 2 recessed channels; lenses and channel choices affect light diffusion and may change light loss and IP rating as noted by the manufacturer.
• Lead wires: factory-supplied 11 in. 20/4 AWG UL 2464 leads with connectors (manufacturer-specified lengths and connector types).
• Field-cuttable at 4 in. intervals.

Certifications and warranty

The manufacturer supplies safety listings and warranty information; installers should follow the manufacturer's installation guidelines to preserve warranty coverage.

• Safety listings: UL listings for low-voltage lighting systems and other certifications referenced on the manufacturer sheet (file # E469769).
• Environment rating: IP65 wet-location rated (manufacturer specification).
• Warranty: 12 Year Limited (manufacturer).
• RoHS compliant (manufacturer statement).

Before You Order

Confirm model and total length required. This product is a 24 V constant-voltage tape light and requires a properly sized 24 V constant-voltage driver and compatible controller.

• Calculate driver capacity: total wattage = 6.4 W/ft × run length; choose a driver with capacity above the run wattage.
• Each maximum run requires a dedicated power feed from the driver per manufacturer guidance.
• Installation should be performed by a qualified, licensed electrician following local codes and the manufacturer's instructions.
