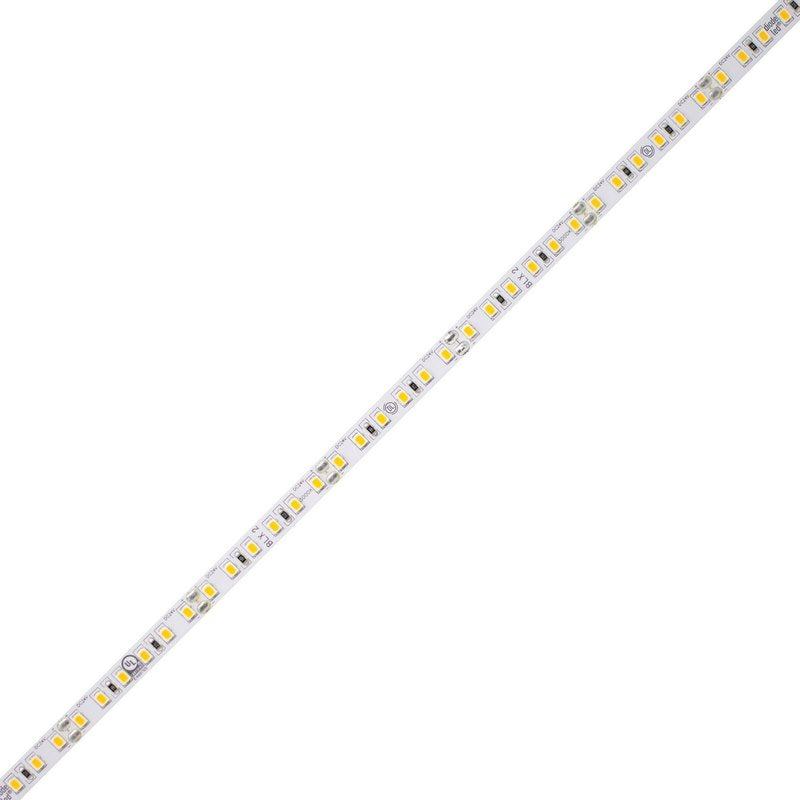

Diode LED BLAZE X 200 LED Tape Light, 24V, 3000K, 16.4 ft. Spool (DI-24V-BLX2-30-016)

Product Overview

The Diode LED DI-24V-BLX2-30-016 (BLAZE X 200) is a 24VDC LED tape light on a 16.4 ft spool delivering 3000K color with 95+ CRI for high-fidelity color rendering in interior lighting.

It features 2 in cut intervals, a 120° beam angle, and supports single runs up to 45 ft. The product requires a 24V constant-voltage driver sized above the run wattage.

Key Features

• 3000K color temperature with 95+ CRI
• 24VDC constant-voltage platform
• Cut points every 2 in
• Maximum single run up to 45 ft
• 120° beam angle
• Dimmable when used with compatible drivers and controls
• UL Listed 2108; rated for indoor / damp locations

Function and Common Applications

This tape light is intended for interior task, accent, and display lighting where higher CRI is desired. Typical uses include under-cabinet and shelf task lighting, cove and millwork accent lighting, and retail/display illumination.

It is a 24V constant-voltage tape intended to be used with appropriate drivers and accessories for linear installations.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Retail displays and merchandise lighting
• Interior linear lighting in dry or damp locations

Light Performance and Color Quality

Spec sheet values list a 3000K color temperature and 95+ CRI for high-fidelity color rendering. The LED package is specified as Epistar 2835 Guang Mau emitters with a 120° beam angle.

• Color temperature: 3000K
• CRI: 95+
• Beam angle: 120°

Electrical and Driver Requirements

The product operates on 24VDC constant-voltage. The provided product data lists power as 253 W/ft; size the 24V constant-voltage driver above the total calculated run wattage. Use drivers and dimming controls that are compatible with 24V constant-voltage LED tape.

• Input: 24VDC constant-voltage
• Power (as specified): 253 W/ft — use to size driver capacity
• Dimmable with compatible drivers and controls

Installation, Cutting and Run Lengths

Cut intervals are every 2 inches to allow termination at common cabinet lengths. The tape supports single runs up to 45 ft as specified. The product is rated for indoor/damp locations; plan placement accordingly.

• Cut points: every 2 in
• Maximum single run: 45 ft
• Location rating: Indoor / Damp Location

Key Specifications and Certifications

Quick reference of the main technical specifications and the safety listing provided in the product data.

• Model / SKU: DI-24V-BLX2-30-016
• Spool length: 16.4 ft
• LED type: Epistar 2835 Guang Mau
• Dimensions: Width = 0.32 in, Height = 0.1 in
• Cut interval: 2 in
• Max run: 45 ft
• Certification: UL Listed 2108

Before You Order

Confirm the model and quantity. This tape requires a 24VDC constant-voltage driver sized above the total run wattage.

• Verify driver wattage meets or exceeds total run wattage (use 253 W/ft × run length as listed)
• Confirm installation environment is compatible with an indoor / damp location rated product
• Plan cuts at 2 in intervals and account for feed/connector placement

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE X 200 LED Tape Light, 24V, 3000K, 16.4 ft. Spool (DI-24V-BLX2-30-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
