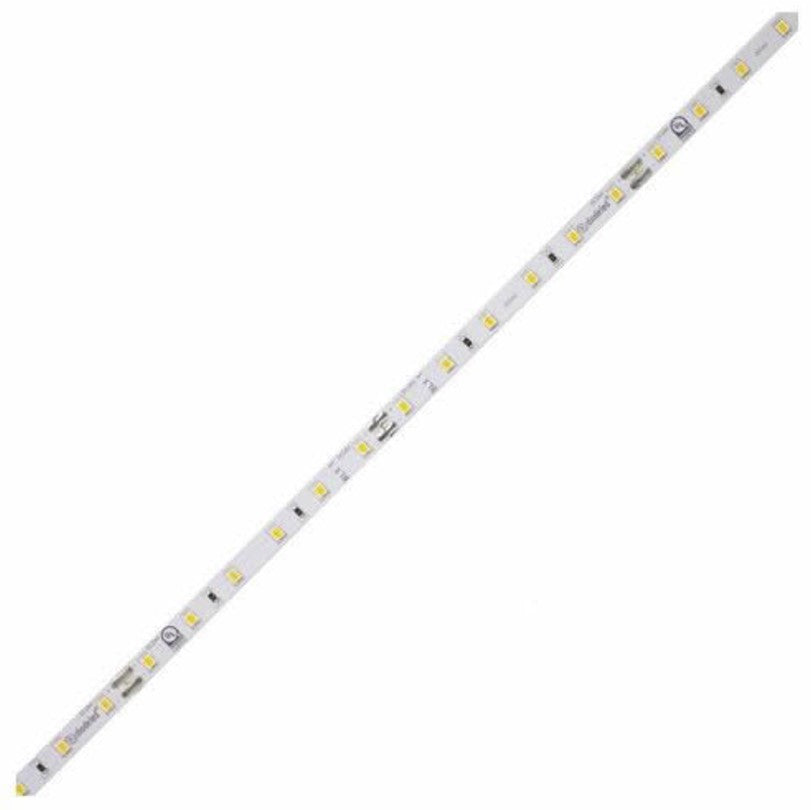

Diode LED BLAZE X 100 LED Tape Light, 24V, 6300K, 16.4 ft. Spool (DI-24V-BLX1-63-016)

Product Overview

The Diode LED BLAZE X DI-24V-BLX1-63-016 is a 16.4 ft spool of 24VDC LED tape light. It produces 123 lumens per foot at 6300K with a 95+ CRI.

This tape light is suited to indoor task, accent and display lighting. It is dimmable and has cut points every 4 inches.

Key Features

• 24VDC tape light with a power draw of 1.54 W/ft
• 6300K color temperature, 123 lm/ft output and 95+ CRI
• 4-inch cut intervals and a maximum run of 70 ft
• 120° beam angle; dimmable
• Indoor / damp location rating; UL Listed 2108

Where to Use This BLAZE X Tape Light

The DI-24V-BLX1-63-016 is intended for indoor linear lighting, including under-cabinet and shelf task lighting, cove and millwork accents, and display or retail lighting.

6300K Light with High Color Rendering

This tape emits 6300K light at 123 lumens per foot and has a 95+ CRI. Its beam angle is 120°.

Power and Run Planning

Use a 24VDC constant-voltage driver sized above the run's total wattage. The tape draws 1.54 W/ft, and the stated maximum single run is 70 ft.

Cut Intervals and Location Rating

The tape has cut points every 4 inches and is rated for indoor / damp locations.

Before You Order

Plan for a 24VDC constant-voltage driver sized above the run wattage.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE X 100 LED Tape Light, 24V, 6300K, 16.4 ft. Spool (DI-24V-BLX1-63-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
