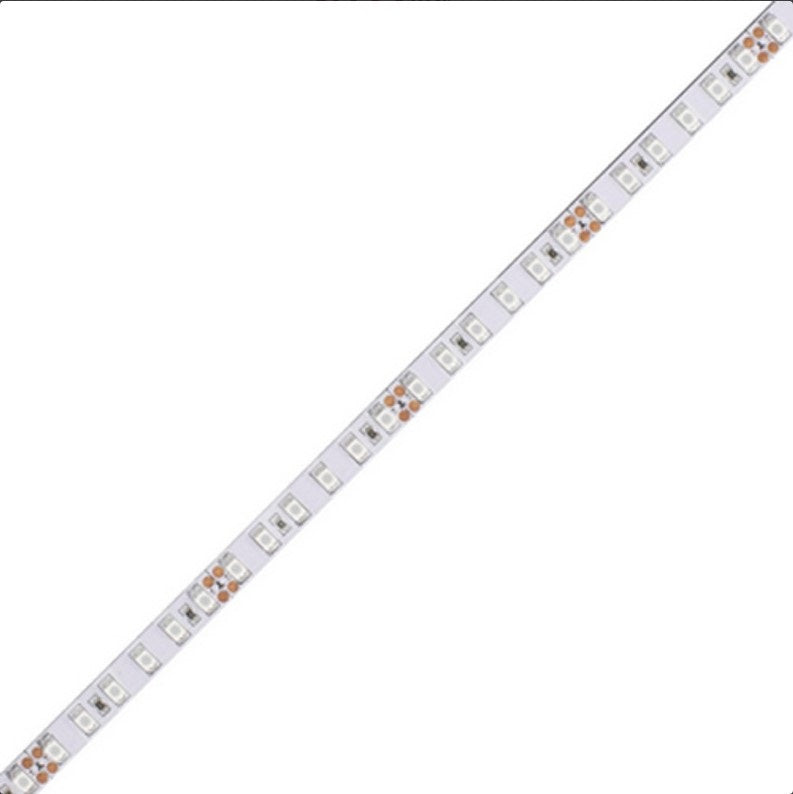

Diode LED BLAZE COLORS Tape Light, 24V, Blue, 100 ft. Spool (DI-24V-BLC-BL-100)

Product Overview

The Diode LED DI-24V-BLC-BL-100 is a 100 ft spool of 24 Volt blue BLAZE COLORS LED tape light. It provides 45 lumens per foot and draws 2.93 watts per foot on a constant-voltage 24V platform.

Intended for interior dry or damp-location linear lighting, the tape has 2 in cut intervals, a 120° beam angle, and a maximum single run of 40 ft. It is UL Listed to 2108 and is dimmable when used with compatible drivers/controllers.

Key Features

• 45 lm/ft luminous output
• 2.93 W/ft power consumption
• 24 Volt constant-voltage tape (requires a 24V driver)
• Cut intervals every 2 in
• Maximum single run: 40 ft
• LED type: 2835 Guang Mau chip
• 120° beam angle
• Indoor / Damp location rated
• UL Listed 2108
• Dimmable with compatible drivers/controllers

Intended uses

This spool supplies blue-colored accent and task illumination on a 24V low-voltage platform. Typical uses noted for this product include under-cabinet and shelf task lighting, cove and millwork accent lighting, display and retail lighting, and other interior linear applications in dry or damp locations.

• Interior accent, display, and task lighting
• 100 ft spool for extended coverage
• Blue-only color output for accent effects

Light output and electrical

Output is specified as 45 lumens per foot with a power draw of 2.93 W per foot on a 24V constant-voltage system. Use the per-foot wattage multiplied by run length to determine total run wattage for driver sizing.

The manufacturer specifies a maximum single run of 40 ft.

• 45 lm/ft
• 2.93 W/ft
• Maximum single run: 40 ft

Installation and configuration notes

Cut at the specified 2 in intervals to terminate cleanly at the desired lengths. This product requires a separate 24V constant-voltage driver sized above the total wattage of the planned runs. The tape is noted as dimmable when paired with compatible 24V dimming drivers or controllers.

• Cut points every 2 in
• Use a 24V constant-voltage driver sized above combined run wattage
• Dimmable with compatible 24V drivers/controllers

Ratings and safety listing

The product is rated for indoor and damp locations and is UL Listed to standard 2108 as provided in the product data.

• Location rating: Indoor / Damp Location
• Certification: UL Listed 2108

Before You Order

This product requires a separate 24V constant-voltage driver sized above the total wattage of your planned runs.

• Confirm DI-24V-BLC-BL-100 is the desired blue color and 100 ft spool
• Select a 24V constant-voltage driver sized above total run wattage (2.93 W/ft × run length)
