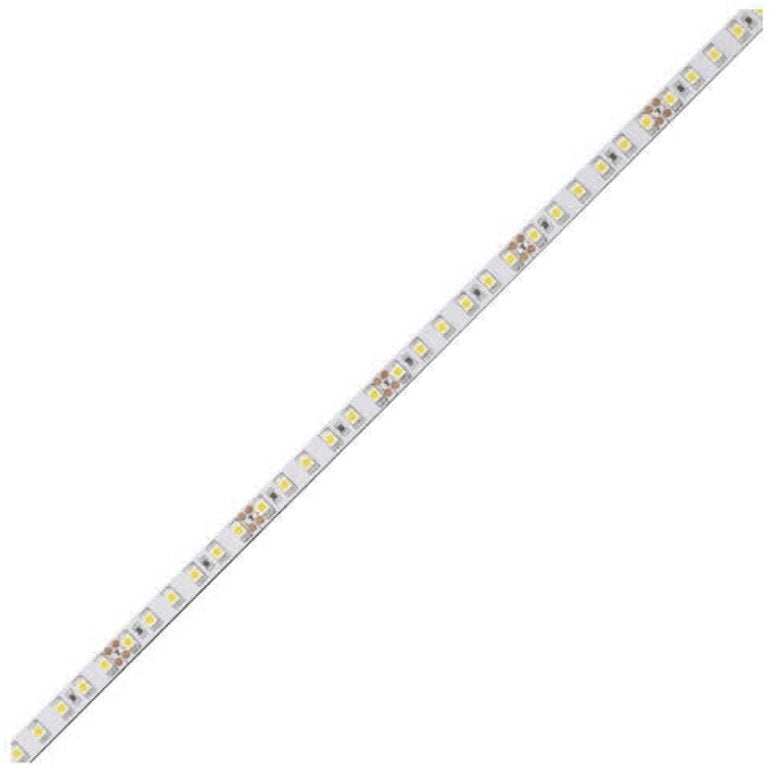

Diode LED BLAZE Basics 200 LED Tape Light, 24V, 3000K, 16.4 ft Spool (DI-24V-BLBSC2-30-016)

Product Overview

The Diode LED DI-24V-BLBSC2-30-016 is a 16.4 ft spool of 24 VDC LED tape light producing 237 lumens per foot at 3000K with 90+ CRI. It uses 2835 LEDs at a density of 36 LEDs per foot and is UL Listed for damp locations (UL 2108).

The tape draws 2.93 W/ft, is dimmable, has 2 in cut intervals, and supports single runs up to 40 ft on a constant-voltage 24 VDC system.

Key Features

• 24 VDC constant-voltage LED tape, 16.4 ft spool (DI-24V-BLBSC2-30-016)
• 3000K color temperature with 90+ CRI
• 237 lumens per foot at 2.93 W/ft; 2835 LED type, 36 LEDs per foot
• Cut points every 2 in; single-run capability up to 40 ft
• 120° beam angle and 3M 55280 adhesive backing
• UL Listed (UL 2108) for indoor damp locations; dimmable with compatible drivers

What this tape light does

The DI-24V-BLBSC2-30-016 delivers linear illumination for interior task and accent lighting. With a color temperature of 3000K and a CRI over 90, it is intended to render materials and merchandise accurately under close-range light.

Common applications include under-cabinet and above-cabinet task lighting, display case and shelf accent lighting, cove and millwork detail lighting, and other indoor architectural linear installations in dry or damp interior areas.

• Output: 237 lumens per foot
• Color: 3000K, CRI 90+
• LEDs: 2835, 36 LEDs per foot; 120° beam angle

Electrical and driver requirements

This is a 24 VDC constant-voltage LED tape and requires a 24 VDC driver. Size the driver so its wattage rating exceeds the total wattage of the assembled run.

The tape is dimmable when used with compatible 24 V dimmable drivers or control systems. Verify compatibility with the dimmer or driver manufacturer for the intended control method.

• Nominal power draw: 2.93 W per foot
• Maximum recommended single run: 40 ft

Mounting, cut intervals, and run layout

The tape ships on a 16.4 ft spool with 3M 55280 adhesive backing for mounting to a clean channel or substrate. Cut intervals are every 2 inches to allow terminations at cabinets, shelves, or millwork details.

Although a single spool length is 16.4 ft, the product supports single runs up to 40 ft; plan feed points and supply wiring to address voltage drop and driver capacity as needed.

• Spool length: 16.4 ft
• Cut points: every 2 in
• Adhesive: 3M 55280 backing

Performance and physical specifications

Key performance and physical attributes for selection and integration.

• Model / SKU: DI-24V-BLBSC2-30-016
• Voltage: 24 VDC
• Wattage: 2.93 W/ft
• Lumens: 237 lm/ft
• Color Temperature: 3000K
• CRI: 90+
• LED Type: 2835
• LED Density: 36 per ft
• Beam Angle: 120°
• Max Run: 40 ft
• Width: 0.32 in
• Dimmable: Yes
• Location Rating: Indoor / Damp
• Certification: UL Listed 2108

Before You Order

This product is a 16.4 ft spool of 24 V tape light; plan driver capacity and wiring for the assembled run.

• Requires a 24 VDC constant-voltage driver sized above the run's total wattage.
• Not wet-rated; suitable for indoor dry or damp locations only.
• Verify dimmer/driver compatibility for dimming applications.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE Basics 200 LED Tape Light, 24V, 3000K, 16.4 ft Spool (DI-24V-BLBSC2-30-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
