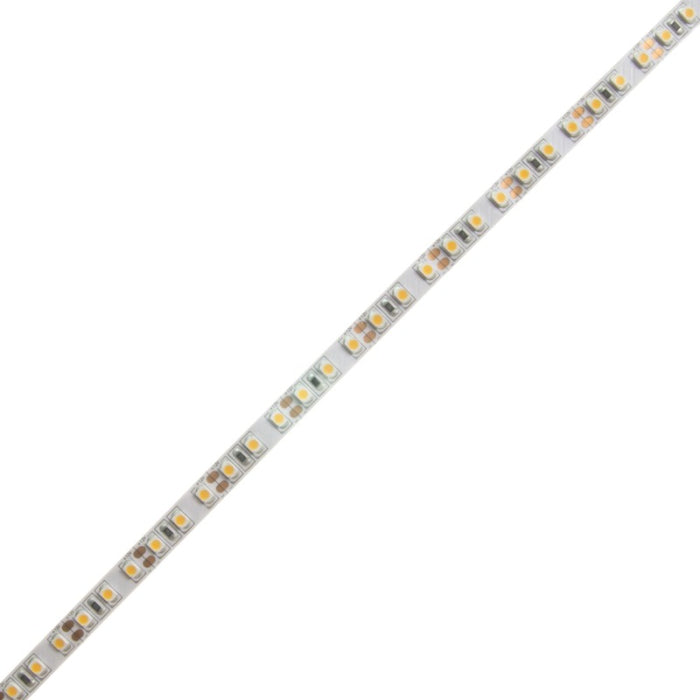

Diode LED BLAZE 200 LED Tape Light, 24V, 2700K, 16.4 ft. Spool (DI-24V-BLBSC2-27-016)

Product Overview

The Diode LED DI-24V-BLBSC2-27-016 (BLAZE 200) is a 24 Volt LED tape light on a 16.4 ft spool producing 233 lumens per foot at 2700K with 90+ CRI.

It is dimmable, UL Listed to 2108, rated for indoor/damp locations, has cut points every 2 in, and supports single runs up to 40 ft.

Key Features

• 233 lm/ft at 2700K with 90+ CRI
• Power draw: 2.93 W/ft
• 24 Volt constant-voltage platform; dimmable
• Cut points every 2 in
• Single runs up to 40 ft
• UL Listed 2108; indoor/damp location rating

What this tape light does

The DI-24V-BLBSC2-27-016 provides warm-white illumination (2700K) with high color fidelity (90+ CRI) for interior task and accent lighting.

• Produces 233 lumens per foot
• Dimmable on a 24V constant-voltage system

Light and electrical performance

Use the listed lumen and wattage values to compare output and estimate total load for driver selection.

• Light output: 233 lm/ft
• Power draw: 2.93 W/ft
• Beam angle: 120°

Typical applications

Suitable for interior linear lighting where high CRI and warm color temperature are desired.

• Under-cabinet and shelf task lighting
• Cove and millwork accent lighting
• Retail display and merchandising lighting
• Interior dry or damp-location linear lighting

Driver and installation considerations

The tape operates on 24 Volt constant-voltage. Select a driver with sufficient wattage for the total run and follow the product's cut and run length details.

• Requires a 24V constant-voltage driver sized above the total run wattage
• Cut interval: every 2 in
• Maximum single run: 40 ft

Certifications and location rating

This product is UL Listed to standard 2108 and is rated for indoor/damp locations.

• UL Listed 2108
• Location rating: Indoor / Damp Location

Before You Order

Verify the SKU and confirm driver capacity for the total planned run wattage.

• Confirm DI-24V-BLBSC2-27-016 as the required SKU
• Choose a 24V constant-voltage driver with wattage greater than (2.93 W/ft × total run length)
• Account for 2 in cut intervals and 40 ft maximum single run
• Intended for indoor/damp locations

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED BLAZE 200 LED Tape Light, 24V, 2700K, 16.4 ft. Spool (DI-24V-BLBSC2-27-016). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
