Diode LED Wet Location Splitter Plug (10.5mm Plugs): 5-Way, White PVC 2464 (DI-10MM-WLSP5)
Description
Product Overview

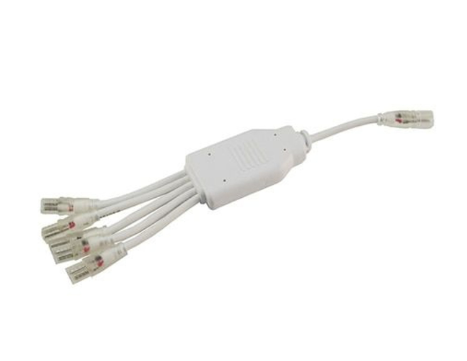

The Diode LED DI-10MM-WLSP5 is a five-way splitter plug for wet location connections with 10.5mm plugs. It splits one connection into five outputs.
Its 20/2 AWG stranded copper wire has an extruded PVC jacket. The 10.5mm plugs are compatible with Diode LED UL-listed wet location FLUID VIEW and BLAZE 12V LED strip light options.
Key Features
- Five-way splitter for wet location connections with 10.5mm plugs
- Compatible with UL-listed wet location FLUID VIEW and BLAZE 12V LED strip light options
- Stranded 20/2 AWG copper wire with extruded PVC jacket
- For wet location use; not for submersion or in-wall installation
Five-way power splitting
The DI-10MM-WLSP5 splits a wet location connection into five outputs. It is designed for connections using 10.5mm wet location plugs.
Compatible 10.5mm wet location connections
The 10.5mm plugs are compatible with Diode LED UL-listed wet location FLUID VIEW and BLAZE 12V LED strip light options. Confirm that the connector type and polarity match the components you intend to connect.
Wet location use and limitations
This connector may be used in wet location environments, but it must not be submerged. Wet location connectors are not rated for in-wall installations.
Cable and electrical specifications
The splitter uses stranded 20/2 AWG copper wire with an extruded PVC jacket. The 300VAC value is the wire voltage specification.
- Wire diameter: 0.22 in. (5.5 mm)
- Maximum temperature: 176°F (80°C)
- Flammability ratings: VW-1 and FT2
- Wet location connector Class 2 amp rating: 60W/5A at 12VDC or 100W/4.17A at 24VDC
Before You Order
Confirm the 10.5mm connector type and polarity match the components you intend to connect.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Diode LED Wet Location Splitter Plug (10.5mm Plugs): 5-Way, White PVC 2464 (DI-10MM-WLSP5). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-10MM-WLSP5 |
| Product Type | Wet location splitter plug |
| Configuration | 5-way |
| Plug Size | 10.5 mm |
| Dimensions | 9.25 × 0.8 × 0.63 in. (L × W × H) |
| Wire | Stranded 20/2 AWG copper; AWM 758 UL 2464 |
| Wire diameter | 0.22 in. (5.5 mm) |
| Jacket | Extruded PVC |
| Wire voltage rating | 300VAC |
| Maximum temperature | 176°F (80°C) |
| Flammability Rating | VW-1, FT2 |
| Location Rating | Wet location; not submersible |
| Certifications | UL R/C E339137 and/or E301305 |
