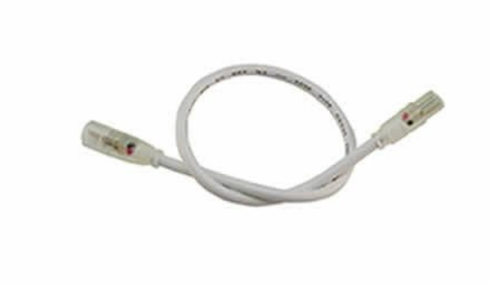

Diode LED Wet Location Extension Cable (10.5mm Plugs) - Male to Female, White PVC 2464, 6 in (DI-10MM-WL6-EXT)

Product Overview

The Diode LED DI-10MM-WL6-EXT is a 6-inch male-to-female extension cable for connections between wet location 10.5mm plugs.

It has an extruded PVC jacket. Wet location connectors, including extension cables, are not rated for submersion or in-wall installation.

Key Features

• 6-inch male-to-female extension for wet location 10.5mm plugs
• 10.5mm plugs are compatible with UL-listed wet location FLUID VIEW 12V and BLAZE 12V LED strip lights
• 20/2 AWG stranded copper wire with an extruded PVC jacket
• Wet location connector Class 2 amp rating: 60W/5A at 12VDC; 100W/4.17A at 24VDC

What the 6-Inch Extension Cable Connects

The DI-10MM-WL6-EXT creates a male-to-female extension between wet location 10.5mm plugs. It measures 6 inches long.

• Connector configuration: male to female
• Plug size: 10.5mm
• Dimensions: 6 inches long by 0.41 inches in diameter

Compatibility and Class 2 Rating

The 10.5mm wet location plugs are compatible with UL-listed wet location FLUID VIEW 12V and BLAZE 12V LED strip lights. The wet location connectors have a Class 2 amp rating.

• 60W / 5A at 12VDC
• 100W / 4.17A at 24VDC

Wet Location Use and Restrictions

Wet location connectors and extension cables are not rated for submersion or in-wall installation. This cable uses AWM 758 UL 2464 stranded copper wire, 20/2 AWG, with an extruded PVC jacket.

• Maximum temperature: 176°F (80°C)
• Flammability ratings: VW-1, FT2
• Certifications: UL R/C E339137 and/or E301305

Before You Order

Confirm the connected components use compatible 10.5mm wet location plugs.

• Not rated for submersion or in-wall installation.
