Diode LED Mini Terminal Junction Box (DI-0841)

Product Overview

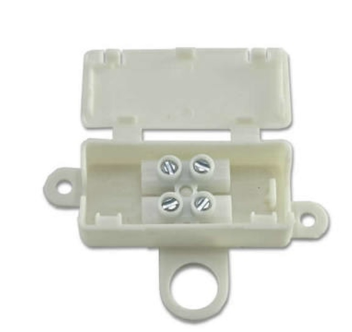

The Diode LED DI-0841 is a compact mini terminal junction box for making and protecting two-conductor wire splices in lighting installations. Its low-profile housing includes a removable terminal block to enclose screw-type connections and help meet enclosure requirements for conductor terminations.

The DI-0841 accepts conductors up to 14 AWG, provides screw connections for solid or stranded wire, and is rated for up to 450V AC and 24A. It is not rated for in-wall installation.

Key Features

• Low-profile junction box with removable terminal block
• Screw connections for solid or stranded conductors
• Accommodates wire up to 14 AWG; larger opening fits 14 AWG Romex insulation
• Rated to 450V AC and 24A
• Includes strain relief sheath for larger wire gauges
• Complies with EN/IEC 60998

Function and purpose

The DI-0841 provides a small enclosure for making and protecting two-conductor splices. It encloses screw-type terminations inside a snap-fit lid to avoid exposed bare-wire connections.

• Removable terminal block makes connections accessible during wiring and inspection.
• Used where an external junction box is needed to enclose conductor terminations.

Electrical ratings and connections

Use the DI-0841 where circuit conditions fall within its electrical ratings. It uses screw terminals compatible with solid or stranded conductors.

• Maximum voltage: 450V AC
• Maximum current: 24A
• Connection type: screw connection for solid or stranded wire
• Terminals accept conductors up to 14 AWG

Dimensions and wire capacity

The compact footprint is suited for low-profile installations where space is limited and an accessible enclosure is required.

• Dimensions: 1.87 in (L) × 1.00 in (W) × 0.75 in (H)
• Wire gauge capacity: terminals accommodate up to 14 AWG
• Housing openings: larger opening fits 14 AWG Romex insulation; smaller opening fits two-strand wire 18 AWG or smaller
• Includes a strain relief sheath for larger wire gauges

Installation notes and compliance

The DI-0841 is designed to provide an enclosed connection point and is compliant with EN/IEC 60998 for terminal devices. It is not rated for in-wall installation and should remain accessible as required by applicable installation rules.

• Compliance: EN/IEC 60998
• Not rated for in-wall use — must remain accessible
• Designed to enclose conductor terminations up to its rated voltage and current

Before You Order

Verify the circuit voltage and current do not exceed the DI-0841’s 450V/24A ratings and that you will not use it for concealed/in-wall splices.

• Confirm terminals accept your wire size (up to 14 AWG).
