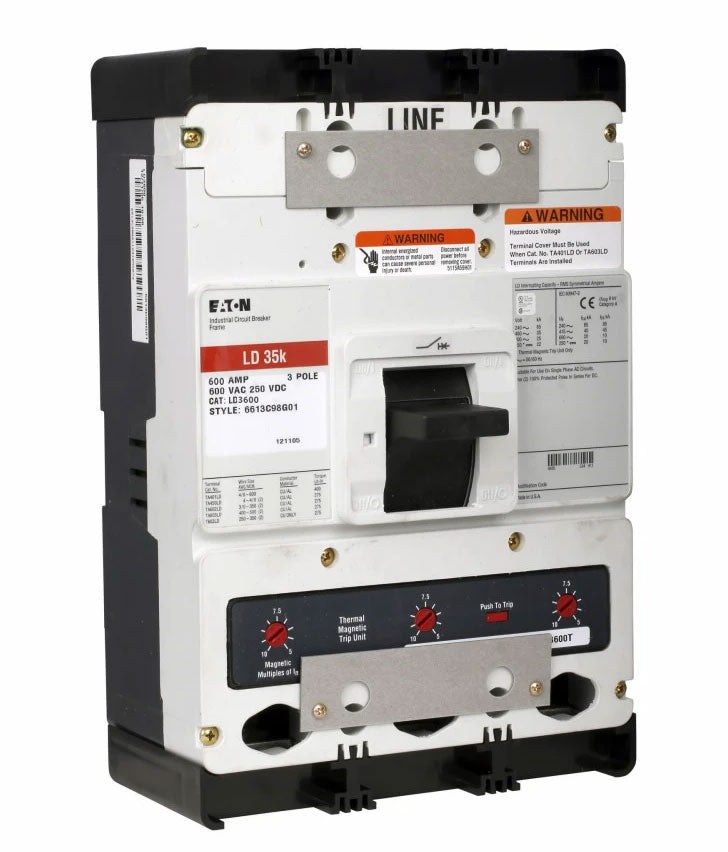

LD3600 - Cutler Hammer 600A 600V 3P L-Frame Molded Case Circuit Breaker, Series C, Thermal Magnetic Trip, UL 489, CSA, Feed-Thru Mounting, 35kAIC @ 480VAC, 65kAIC @ 240VAC

Product Overview

The Cutler Hammer LD3600 is a Series C, L-frame molded case circuit breaker rated 600A and 600V, with three poles, a thermal magnetic trip, and feed-thru mounting.

Its specified interrupting ratings are 35 kAIC at 480VAC and 65 kAIC at 240VAC. The product designation includes UL 489 and CSA.

Key Features

• 600A, 600V, three-pole L-frame molded case circuit breaker
• Series C with thermal magnetic trip
• Feed-thru mounting
• 35 kAIC at 480VAC and 65 kAIC at 240VAC
• UL 489 and CSA designations

LD3600 breaker configuration

The LD3600 is a three-pole, L-frame molded case circuit breaker rated 600A and 600V. It has a thermal magnetic trip and is identified as Series C.

Interrupting ratings by voltage

The LD3600 has an interrupting rating of 35 kAIC at 480VAC and 65 kAIC at 240VAC.

Mounting and product designations

The specified mounting is feed-thru. The product designation includes UL 489 and CSA.

Before You Order

Confirm that the model number, LD3600, matches the breaker you need.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for LD3600 - Cutler Hammer 600A 600V 3P L-Frame Molded Case Circuit Breaker, Series C, Thermal Magnetic Trip, UL 489, CSA, Feed-Thru Mounting, 35kAIC @ 480VAC, 65kAIC @ 240VAC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
