Alteck Pez 15 in. AFM0067 LED Outdoor Flush Mount, Selectable CCT

Product Overview

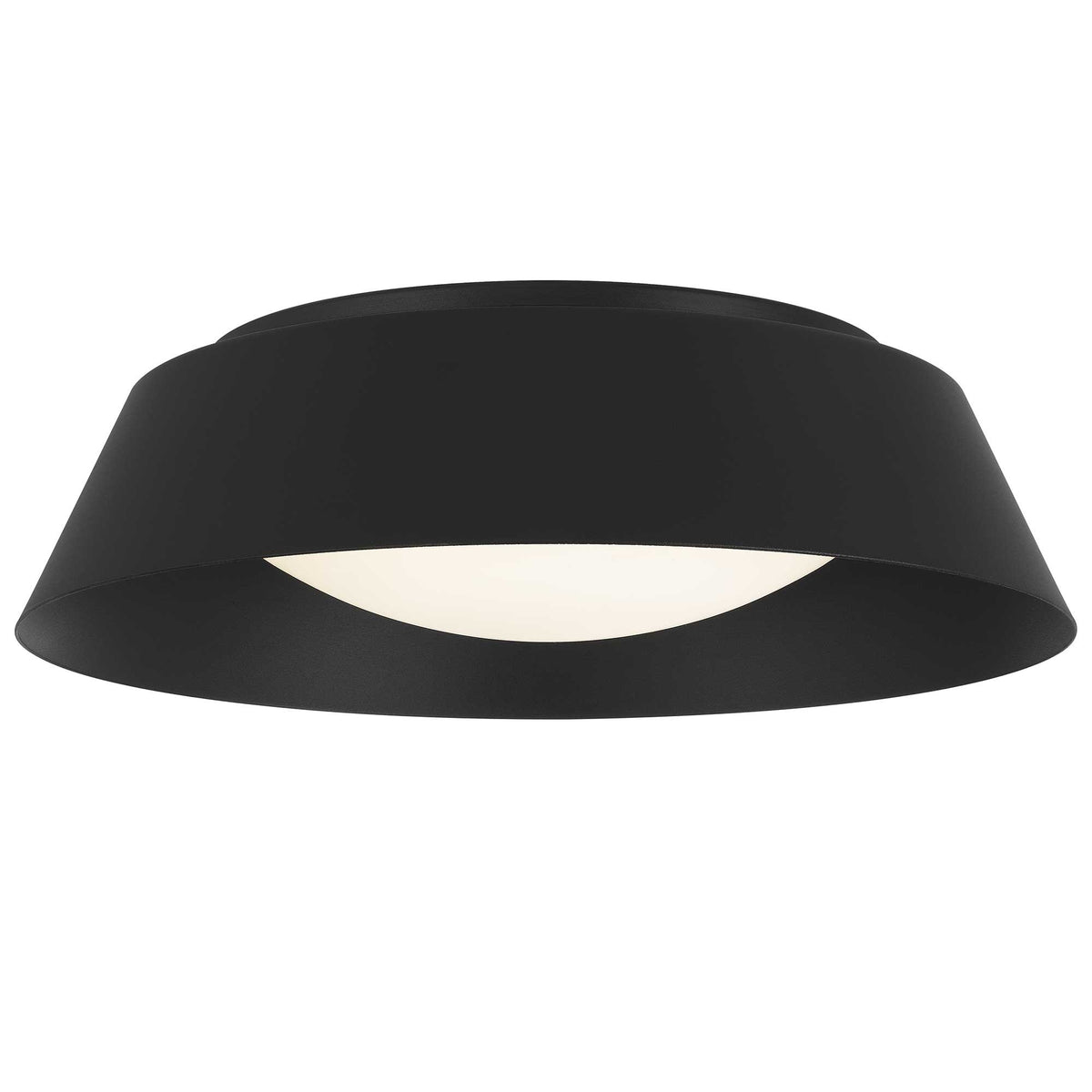

The Alteck Pez AFM0067 is a 15-inch integrated LED outdoor flush mount with field-selectable color temperature (5-CCT: 2700K–5000K). It produces 1,283 lumens from a 35 W LED engine and is designed for covered porches, soffits, and entry ceilings.

Made from aluminum with an Etched White Opal glass diffuser, the AFM0067 carries an IP44 rating, ETL listing, triac (forward-phase) dimming compatibility, and an ADA-compliant low profile. It is offered in Painted Brass (AFM0067-5CCT-W-PB) and Black (AFM0067-5CCT-W-BK) finishes.

Key Features

• Field-selectable color temperature: 2700K–5000K (5-CCT)
• Integrated 35 W LED — 1,283 lumens, 80 CRI
• Rated life: 54,000 hours; LED warranty: 5 years; finish warranty: 3 years
• IP44 wet-location rating and ETL listed
• Triac (forward-phase) dimmable
• Aluminum housing with Etched White Opal glass diffuser; ADA-compliant low profile

Function & output

The AFM0067 produces 1,283 lumens from a 35 W integrated LED and uses an Etched White Opal glass diffuser to provide even, diffuse illumination.

Color temperature is field-selectable across five settings (2700K, 3000K, 3500K, 4000K, 5000K). CRI is specified at 80.

• Light output: 1,283 lumens
• Power: 35 W integrated LED
• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K (5-CCT)
• CRI: 80

Recommended applications

Intended for low-profile exterior ceiling locations where a wet-location rated flush mount is appropriate, such as covered porches, entry ceilings, soffits, and exterior walkways or passages.

Selectable CCT allows matching adjacent fixtures or achieving a desired exterior light appearance without changing SKUs.

• Covered porches and entries
• Soffits and overhangs
• Exterior walkways and passages
• Replacement for dated exterior flush mounts

Electrical & dimming

The fixture is rated for 120V line-voltage operation and is specified as triac (forward-phase) dimmable. Verify dimmer compatibility and load range before installation.

CCT selection is performed at the fixture.

• Voltage: 120V
• Dimming: Triac (forward-phase) compatible
• Fixture wattage: 35 W

Size & mounting

Surface/flush ceiling-mount fixture with a 15-inch diameter and a 4-inch height, designed for low-profile exterior installations.

Mount to an appropriate junction box following local electrical codes and installer practices.

• Diameter: 15 in
• Height: 4 in
• Mounting type: Surface / flush ceiling mount
• Material: Aluminum housing with Etched White Opal glass diffuser

Environmental & safety ratings

Specified with an IP44 rating for wet-location exposure and an ETL safety listing. The fixture is described as ADA-compliant.

Warranty coverage includes a 3-year finish warranty and a 5-year LED warranty; rated LED life is 54,000 hours.

• IP rating: IP44
• Location rating: Wet Location
• Safety listing: ETL Listed
• ADA compliant: Yes
• Rated life: 54,000 hours
• Finish warranty: 3 years; LED warranty: 5 years

Before You Order

Confirm the model number, finish, and quantity before ordering.

• Choose the correct SKU for finish: AFM0067-5CCT-W-PB (Painted Brass) or AFM0067-5CCT-W-BK (Black).
• Verify the mounting location is compatible with an IP44 wet-location rated fixture.
• If using dimming, confirm your wall dimmer supports forward-phase (triac) dimming and is compatible with the fixture.
