Alteck Jaz 16 in. AP0077 LED Outdoor Pendant, Selectable CCT
Description
Product Overview
The Alteck Jaz AP0077 is a 16-inch suspended outdoor pendant with an integrated 25W LED producing 1100 lumens. Its five selectable color temperatures range from 2700K to 5000K.
Finish options are Brass and Black. The fixture is rated for wet locations and has an IP44 rating.
Key Features
- Integrated 25W LED with 1100 lumens and 80 CRI
- Five selectable color temperatures from 2700K to 5000K
- Triac forward-phase dimming
- Wet-location rated with IP44 rating
- ETL Listed; rated LED life of 54,000 hours
Selectable Color Temperature and Light Output
The AP0077 produces 1100 lumens from an integrated 25W LED. Its five selectable color temperatures range from 2700K through 5000K, and the light source has an 80 CRI.
Dimming and Electrical Details
This pendant is designed for 120V operation and supports Triac forward-phase dimming. Use a compatible dimmer and check its load range for the fixture.
Outdoor Use and Location Rating
The AP0077 is rated for wet locations and carries an IP44 rating. Stated applications include covered patios, porches, exterior entries and breezeways.
- For exterior projects subject to Title 24, use a Title 24-compliant control device.
Pendant Size, Mounting and Finish Options
The fixture mounts as a suspended pendant. It measures 16 inches wide and 11 inches high, with a maximum drop of 55 inches. Finish options are Brass and Black.

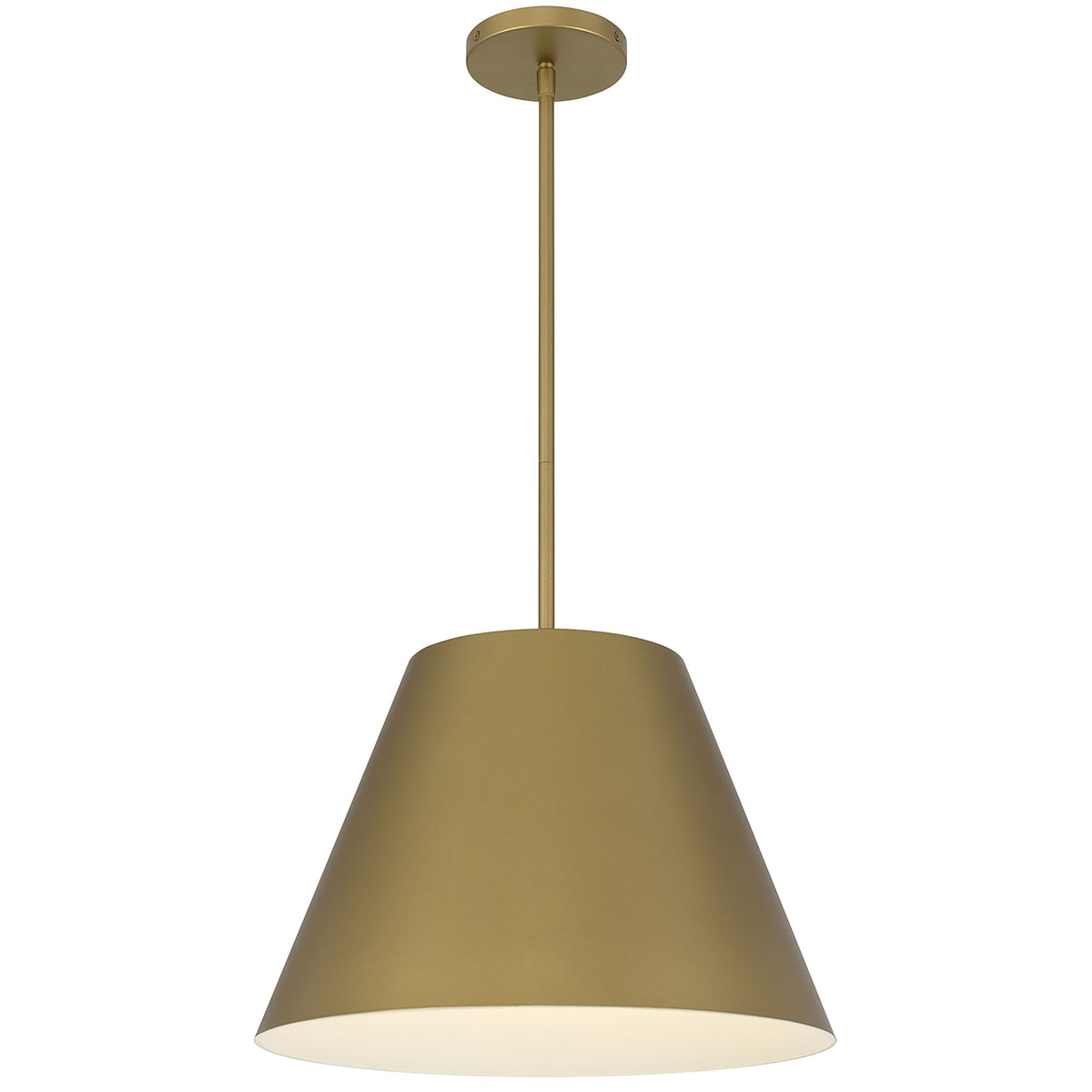

- The Brass option is SKU AP0077-5CCT-W-PB.

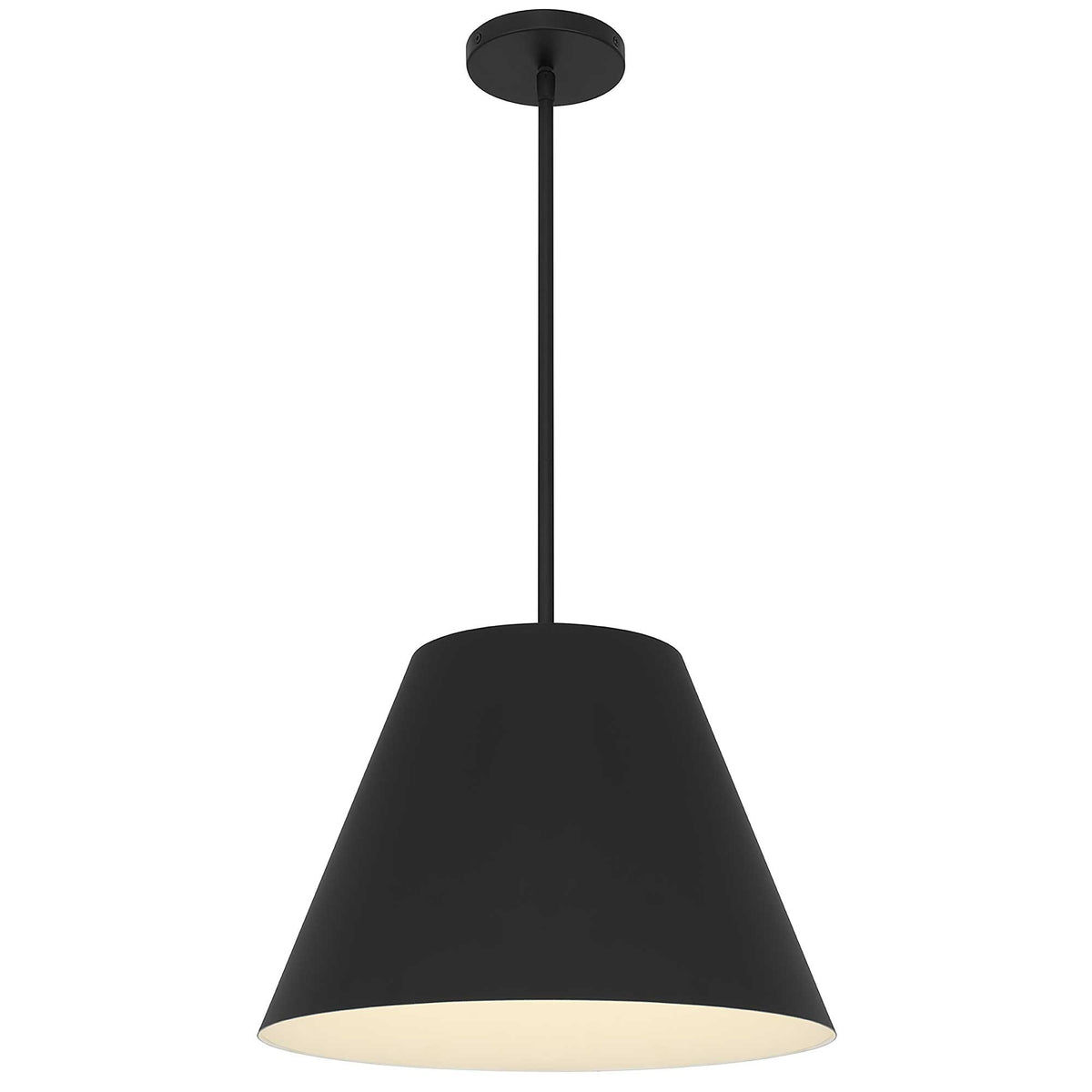

- The Black option is SKU AP0077-5CCT-W-BK.
Before You Order
Choose the Brass or Black finish option and confirm the AP0077 SKU matches your selection.
- For dimming, verify compatibility and load range with the selected Triac forward-phase dimmer.
- For Title 24 exterior projects, use a Title 24-compliant control device.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Alteck Jaz 16 in. AP0077 LED Outdoor Pendant, Selectable CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Alteck |
|---|---|
| Category | Jaz |
| SKU | AP0077 |
| Product Type | Outdoor LED pendant |
| LED Wattage | 25W |
| Lumens | 1100 lumens |
| Color Temperature | Selectable 2700K–5000K (5-CCT) |
| CRI | 80 |
| Voltage | 120V |
| Dimming | Triac, forward-phase |
| Mounting Type | Suspended pendant |
| Dimensions | 16 in. wide × 11 in. high |
| Maximum overall height | 55 in. maximum drop |
| Material | Aluminum |
| Shade / Diffuser | Etched white glass |
| Available Finishes | Brass or Black |
| Location Rating | Wet location |
| IP Rating | IP44 |
| Rated Life | 54,000 hours |
| Certifications | ETL Listed |
| Warranty | 3-year finish warranty; 5-year LED warranty |
