Alteck Foursquare 8 in. AFM0014 LED Outdoor Flush Mount, Selectable CCT

Product Overview

The Alteck Foursquare AFM0014 is an 8-inch integrated LED outdoor flush mount with field-selectable 3000K, 4000K, or 5000K color temperature. It delivers 627 lumens from a 14 W LED and is intended for covered porches, soffits, and exterior entry ceilings.

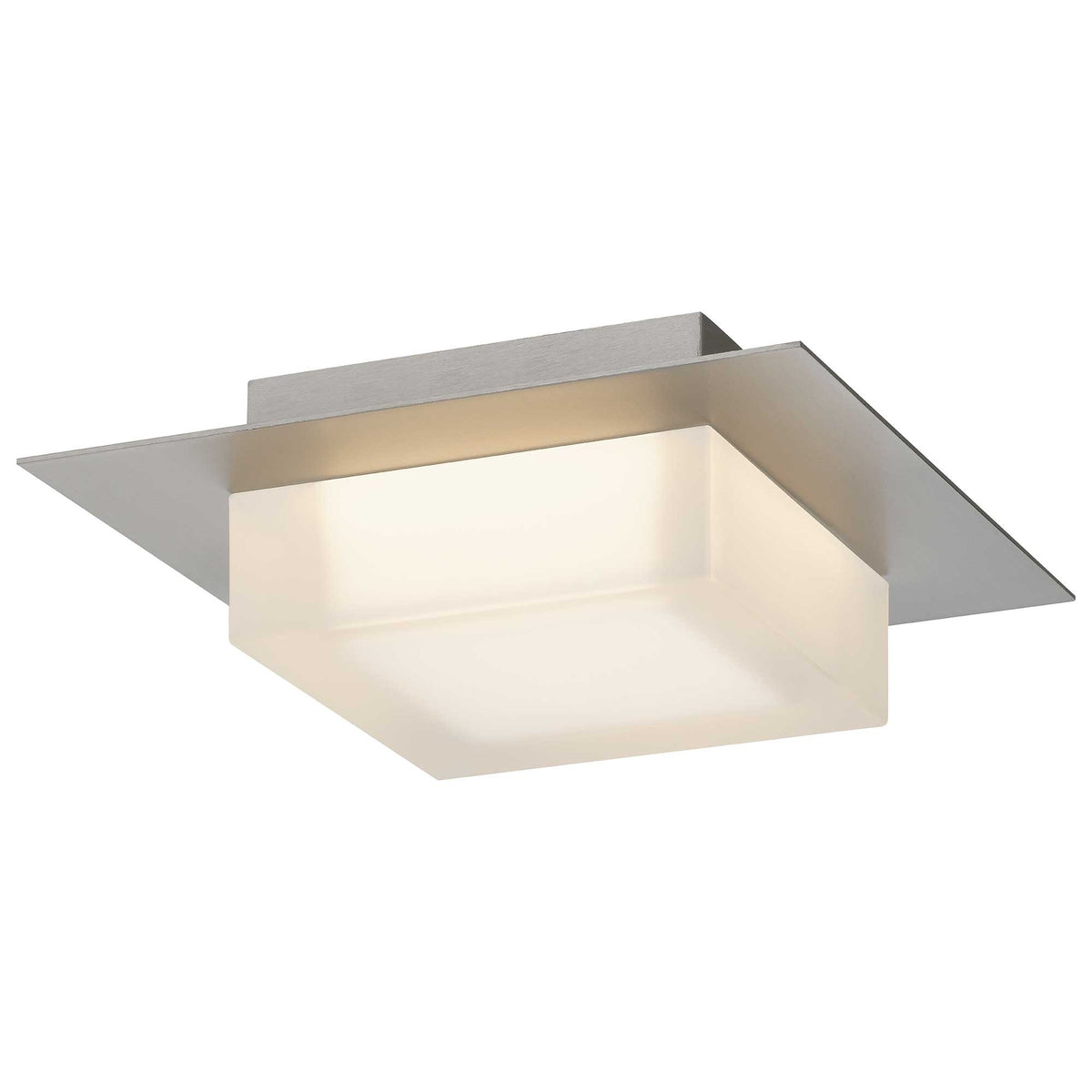

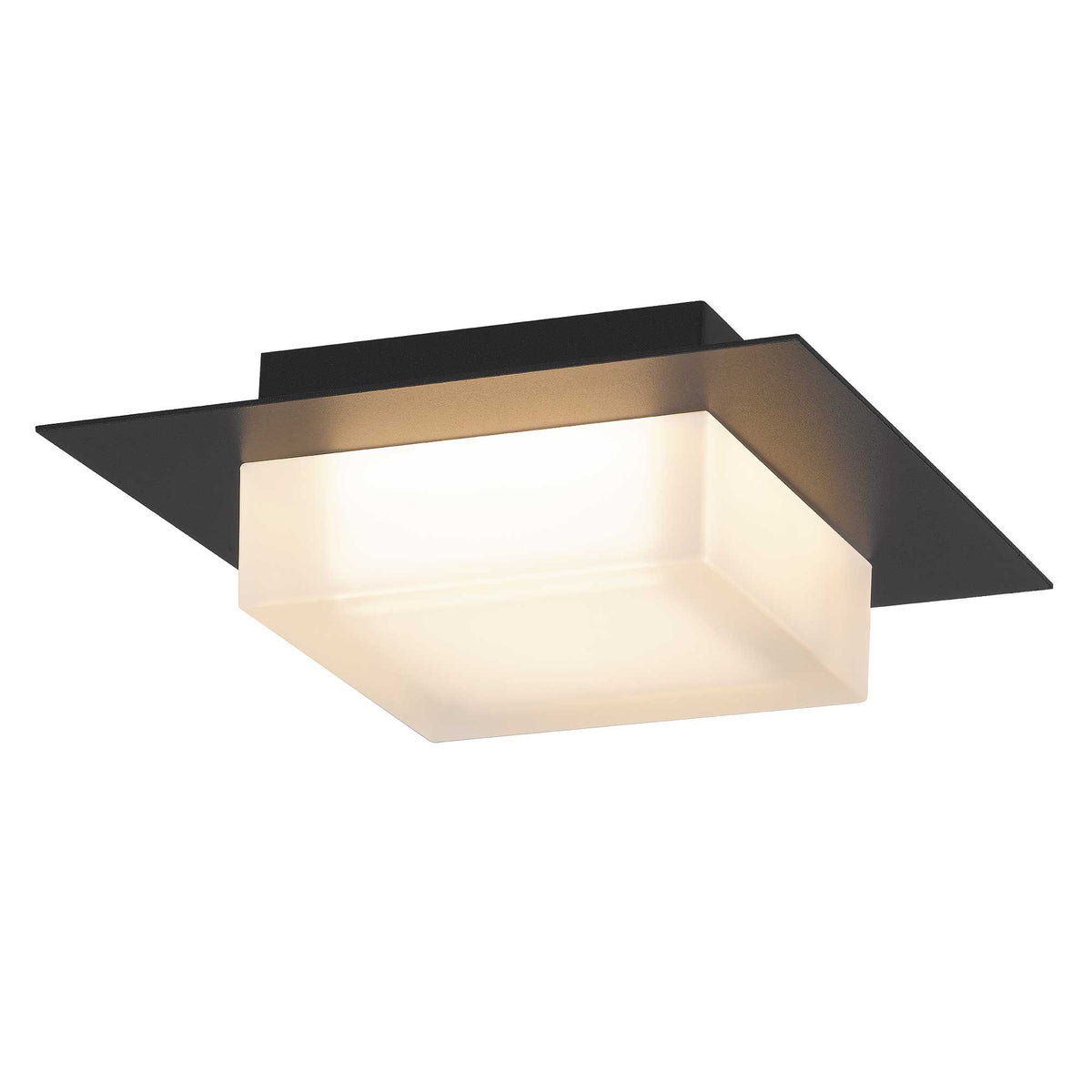

The fixture is IP44-rated for wet-location exposure, ETL listed, ADA-compliant with a low profile, and uses an etched thick-wall acrylic diffuser with a frosted interior. Available finishes are Brushed Stainless Steel (AFM0014-3CCT-W-BSS) and Black (AFM0014-3CCT-W-BK).

Key Features

• Integrated 14 W LED — 627 lumens, CRI 80, rated life 50,000 hours
• Field-selectable 3‑CCT: 3000K, 4000K, or 5000K
• Triac (forward-phase) dimmable — use with compatible forward-phase dimmers
• IP44 wet-location rating and ETL listed
• ADA-compliant low-profile design (2.75 in height)
• Etched thick-wall acrylic diffuser with frosted interior for diffuse illumination
• 430 stainless steel construction (Brushed Stainless Steel finish option)
• Finish warranty: 3 years; LED warranty: 5 years

What this fixture is for

The Alteck Foursquare AFM0014 is intended for exterior ceilings where a low-profile, weather-rated flush mount is required. Typical applications include covered porch and entry ceilings, soffits and overhangs, and exterior walkways or passage ceilings.

• Designed for surface/flush ceiling installation
• Common uses: covered porches, entry ceilings, soffits, walkway ceilings
• Replacement option for older exterior flush mounts

Light output and color temperature

This integrated LED fixture produces 627 lumens from a 14 W LED module and has a CRI of 80. Color temperature is field-selectable between 3000K, 4000K, and 5000K.

• Lumen output: 627 lm
• Wattage: 14 W
• Selectable CCT: 3000K / 4000K / 5000K (3‑CCT)
• CRI: 80
• Rated life: 50,000 hours

Electrical requirements and dimming

The AFM0014 is wired for 120V line-voltage operation and supports Triac (forward-phase) dimming. Confirm dimmer compatibility and load range for a 14 W fixture before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase)
• Confirm dimmer compatibility and load range before installation

Mounting, dimensions, and materials

Install the fixture as a surface/flush ceiling mount on a standard exterior junction box. The housing is 430 stainless steel with an etched thick-wall acrylic diffuser (frosted inside).

• Mounting type: Surface / flush ceiling mount
• Width: 8 in
• Height: 2.75 in
• Material: 430 Stainless Steel
• Diffuser: Etched thick-wall acrylic with frosted interior
• Finish options (SKU-specific): Brushed Stainless Steel (AFM0014-3CCT-W-BSS), Black (AFM0014-3CCT-W-BK)

Environment, listings, and warranties

The fixture has an IP44 rating for wet-location exposure and is ETL listed. Warranty coverage includes a 3-year finish warranty and a 5-year LED warranty.

• Location rating: Wet Location
• IP Rating: IP44
• Safety listing: ETL Listed
• Finish warranty: 3 years
• LED warranty: 5 years
• Country of origin: China

Before You Order

Confirm the model number, finish, and quantity before ordering, and verify the mounting location meets the fixture's IP44 wet-location rating.

• Check finish SKU: AFM0014-3CCT-W-BSS = Brushed Stainless Steel; AFM0014-3CCT-W-BK = Black
• Verify 120V supply and standard exterior junction box for mounting
• Confirm dimmer compatibility (forward-phase/Triac) and dimmer load range for 14 W
