Alteck Foursquare 14 in. AFM0015 LED Outdoor Flush Mount, Selectable CCT

Product Overview

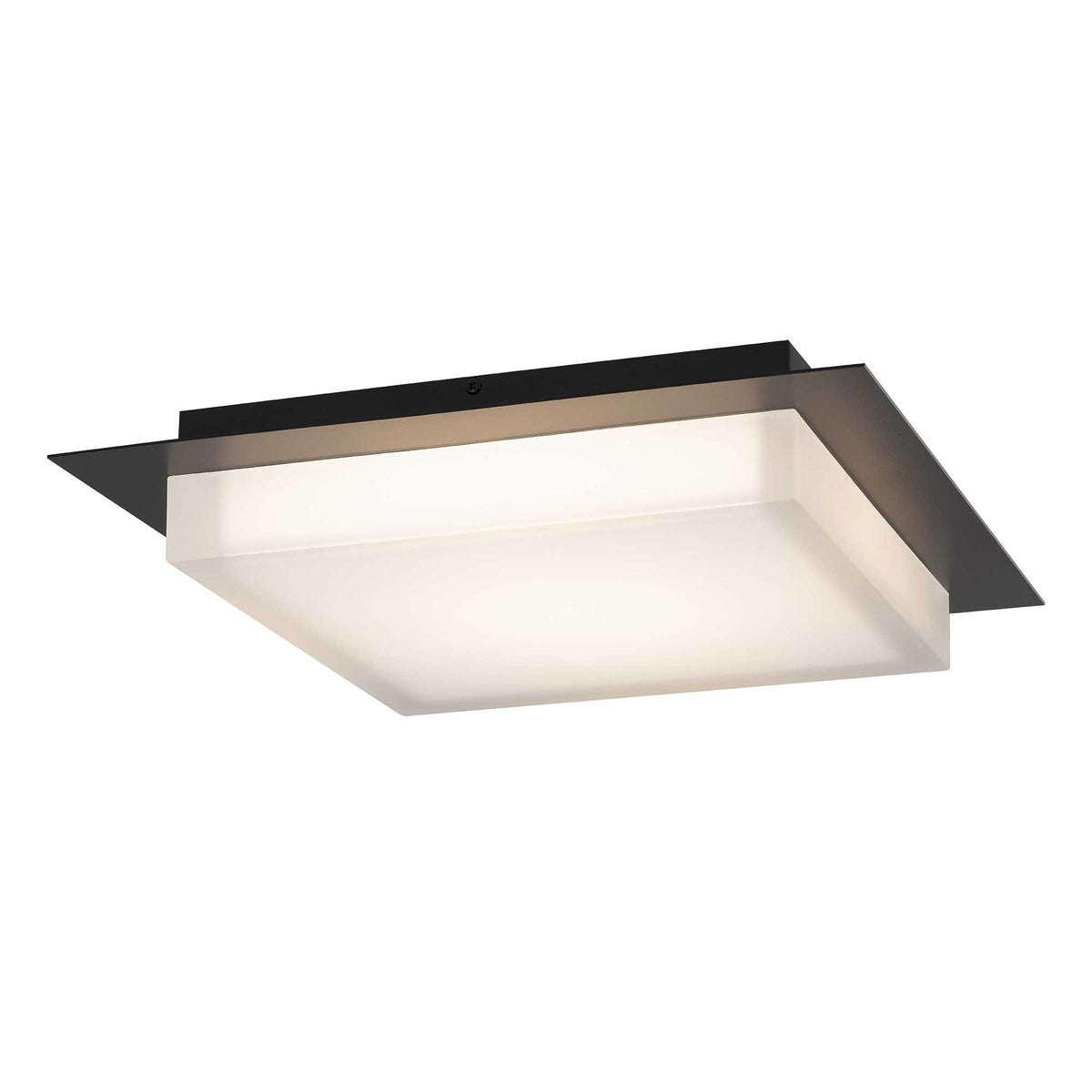

The Alteck Foursquare AFM0015 is a 14 in. integrated LED outdoor flush mount for covered porches, soffits, and entry ceilings. It produces 1117 lumens from a 24 W integrated LED and offers field-selectable color temperatures of 3000K, 4000K, or 5000K.

The fixture is offered in Brushed Stainless Steel (430 stainless) or Black finishes, has an etched thick-wall acrylic diffuser with a frosted interior, an IP44 rating for wet-location exposure, and supports triac (forward-phase) dimming.

Key Features

• 24 W integrated LED producing 1117 lumens
• Field-selectable 3-CCT: 3000K, 4000K, 5000K
• Triac (forward-phase) dimmable
• IP44 wet-location rating
• 14 in. diameter, 2.75 in. profile (low-profile)
• Etched thick-wall acrylic diffuser with frosted inside for even illumination
• 430 stainless steel construction (Brushed Stainless) or Black finish
• 50,000-hour rated LED life; 5-year LED warranty and 3-year finish warranty
• ETL listed

What this fixture does

The Alteck Foursquare AFM0015 is an integrated LED flush-mount that provides diffuse exterior ceiling illumination. Its 24 W LED delivers 1117 lumens through an etched thick-wall acrylic diffuser to reduce glare and distribute light across covered porches, soffits, and entry ceilings.

Where to use it

Intended for covered or protected exterior ceilings where a wet-location-rated flush mount is required. Common uses include covered porches, entry ceilings, soffits, overhangs, and exterior walkway ceilings.

Light output and color temperature

Specified output is 1117 lumens with a CRI of 80. The field-selectable 3-CCT feature allows selection of 3000K, 4000K, or 5000K at installation.

• Lumen output: 1117 lm
• Color temperatures: selectable 3000K / 4000K / 5000K
• CRI: 80

Voltage and dimming

Wired for 120V line-voltage operation. The fixture supports triac (forward-phase) dimming. Confirm the wall dimmer's compatibility and load range for a 24 W LED fixture before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase) compatible

Size, materials, and finishes

The AFM0015 measures 14 in. diameter with a 2.75 in. profile. Housing material is 430 stainless steel for the Brushed Stainless option; a Black finish is also available. The diffuser is etched thick-wall acrylic with a frosted interior.

• Diameter: 14 in
• Height/profile: 2.75 in
• Material: 430 Stainless Steel (Brushed Stainless option)
• Diffuser: Etched thick-wall acrylic with frosted inside
• Finish options: Brushed Stainless (AFM0015-3CCT-W-BSS) or Black (AFM0015-3CCT-W-BK)

Mounting, ratings, and warranties

Installs as a surface/flush ceiling mount on a standard exterior junction box. The fixture has an IP44 rating and is ETL listed. The integrated LED is rated for 50,000 hours. Warranty coverage is 5 years for the LED and 3 years for the finish.

• Mounting type: Surface / flush ceiling mount
• IP rating: IP44 (wet location)
• Safety listing: ETL listed
• Rated life: 50,000 hours
• Warranties: 5-year LED, 3-year finish

Before You Order

Confirm the required model number and finish before ordering and verify that IP44 meets your site requirements.

• Select the correct finish SKU: AFM0015-3CCT-W-BSS (Brushed Stainless) or AFM0015-3CCT-W-BK (Black).
• Verify the site has 120V supply and that your chosen dimmer supports a 24 W triac (forward-phase) LED load.
