Alteck Box 8 in. AFM0020 LED Outdoor Flush Mount, Selectable CCT

Product Overview

The Alteck Box AFM0020 is an 8-inch integrated LED outdoor flush ceiling fixture delivering 1,550 lumens from 24 watts with field-selectable 3000K, 4000K, or 5000K color temperatures.

Designed for covered porches, soffits, and entry ceilings, the AFM0020 has a low-profile, ADA-compliant design, IP44 wet-location rating, triac (forward-phase) dimming compatibility, and a 430 stainless steel body available in Brushed Stainless Steel or Black finishes.

Key Features

• Integrated 24 W LED — 1,550 lumens, 80 CRI, rated life 54,000 hours
• Field-selectable CCT — 3000K, 4000K, or 5000K (3-CCT)
• IP44 wet-location rated
• Triac (forward-phase) dimmable
• ADA-compliant low profile (height 2.5 in) with clear thick-wall acrylic diffuser and frosted inside
• Available finishes: Brushed Stainless Steel (AFM0020-3CCT-W-BSS) and Black (AFM0020-3CCT-W-BK)
• ETL listed; 3-year finish warranty and 5-year LED warranty

What this fixture does

The Alteck AFM0020 is an integrated LED flush ceiling fixture intended for covered exterior ceilings. It provides diffuse illumination through a clear thick-wall acrylic diffuser with a frosted inside and has a compact, low-profile form factor.

Light output and performance

The AFM0020 delivers moderate exterior illumination using an integrated LED package rated for long life and selectable color temperature.

• Lumens: 1,550 lm
• LED wattage: 24 W
• Color Temperature: Field-selectable 3000K, 4000K, or 5000K (3-CCT)
• CRI: 80
• Rated life: 54,000 hours
• Warranties: 3-year finish, 5-year LED

Recommended applications

Common uses are covered porch and entry ceilings, soffits and overhangs, and exterior walkway and passage ceilings where a compact flush mount is appropriate.

• Covered porch and entry ceilings
• Soffits and overhangs
• Exterior walkway and passage ceilings
• Replacement of older exterior flush mounts

Electrical and dimming compatibility

The fixture is wired for 120V line-voltage operation and supports triac (forward-phase) dimming. Verify dimmer compatibility and the dimmer's load range against the fixture wattage before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase) — use compatible dimmers rated for the fixture wattage

Mounting, materials, and environmental suitability

Install the AFM0020 as a surface or flush ceiling mount on a standard exterior junction box. It carries an IP44 rating and an ETL listing and is constructed from 430 stainless steel.

• Mounting type: Surface / flush ceiling mount
• IP rating: IP44
• Location rating: Wet Location
• Material: 430 Stainless Steel
• Dimensions: 8 in width, 2.5 in height

Available finishes and model numbers

Select the finish/sku that matches your project requirements.

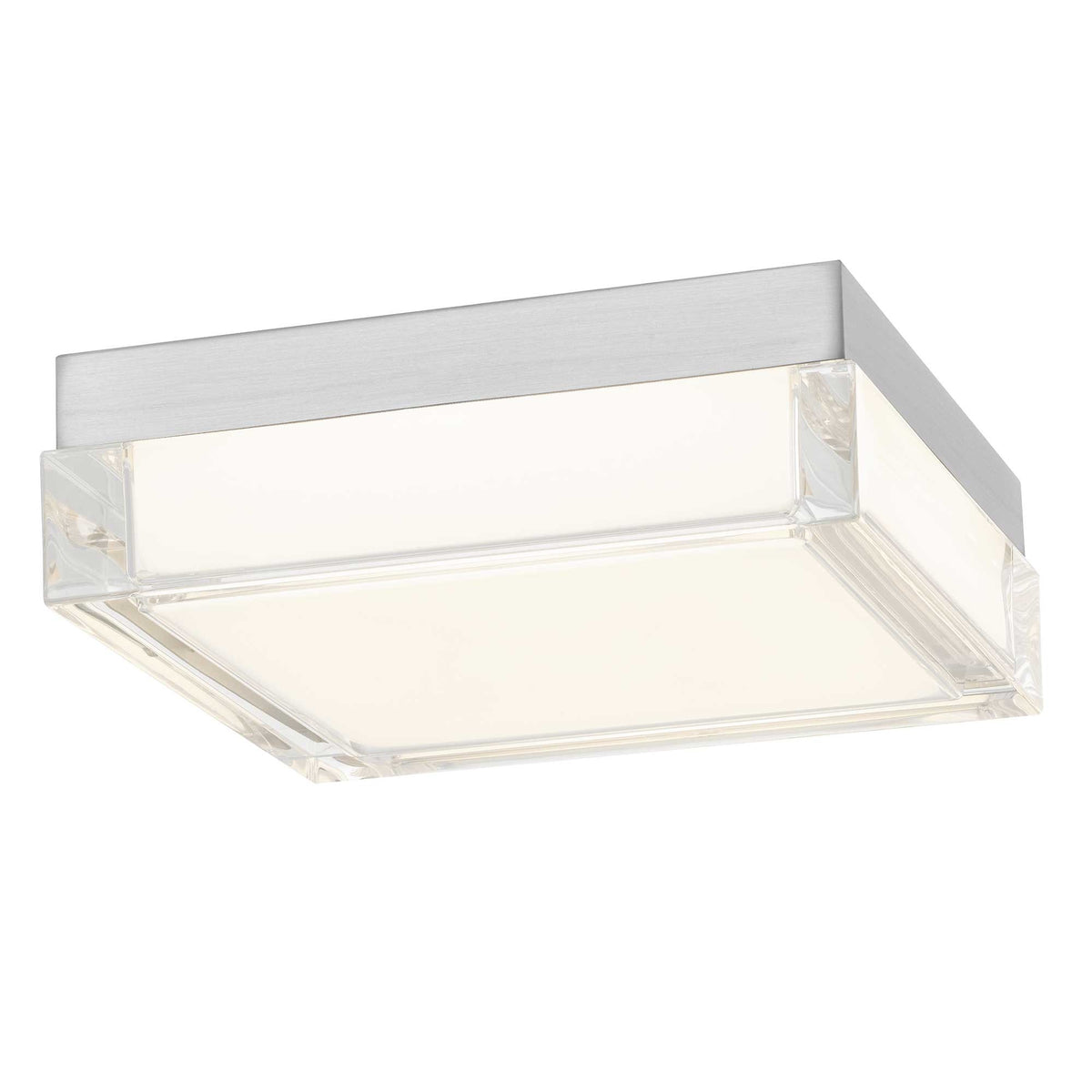

• Brushed Stainless Steel — AFM0020-3CCT-W-BSS

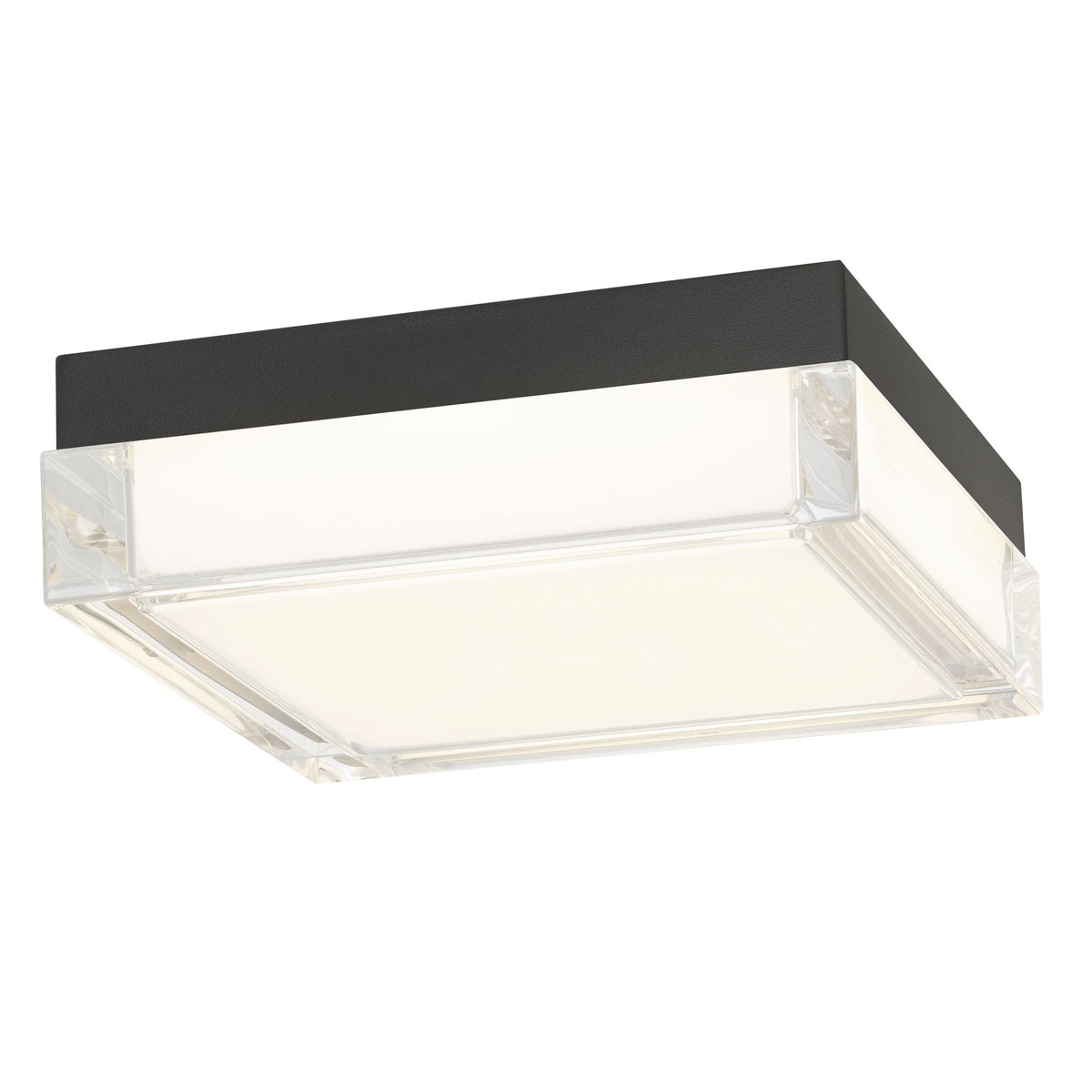

• Black — AFM0020-3CCT-W-BK

Before You Order

Confirm the correct finish SKU and that the mounting location is appropriate for an IP44-rated exterior fixture.

• Select AFM0020-3CCT-W-BSS for Brushed Stainless Steel or AFM0020-3CCT-W-BK for Black.
• Confirm 120V supply and that any dimmer used is compatible with triac (forward-phase) dimming at the fixture's wattage.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Box 8 in. AFM0020 LED Outdoor Flush Mount, Selectable CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
