Alteck Box 11 in. AFM0021 LED Outdoor Flush Mount, Selectable CCT

Product Overview

The Alteck Box AFM0021 is an 11-inch integrated LED outdoor flush mount that delivers 1,800 lumens from a 24 W LED and offers field-selectable color temperatures (3000K, 4000K, 5000K).

Intended for covered exterior ceiling locations, the fixture is IP44 rated for wet locations, has a low 2.5" profile that meets ADA low-profile characteristics, and is triac dimmable for use with forward-phase wall dimmers.

Key Features

• 24 W integrated LED producing 1,800 lumens
• Field-selectable 3-CCT: 3000K, 4000K, 5000K
• Triac (forward-phase) dimming compatible
• IP44 wet-location rating and ETL listed
• 430 stainless steel housing with clear thick-wall acrylic diffuser (frosted inside)
• Low 2.5" profile; ADA-compliant
• Rated life 54,000 hours; 5-year LED warranty and 3-year finish warranty

What this fixture does

The AFM0021 is an integrated LED flush-mount designed to provide even exterior ceiling illumination. It produces 1,800 lumens from a 24 W LED module and offers three field-selectable color temperatures so a single fixture can be set to 3000K, 4000K, or 5000K.

• Output: 1,800 lumens
• Power: 24 W integrated LED
• Selectable CCT: 3000K / 4000K / 5000K
• CRI: 80

Recommended applications

Designed for covered exterior ceilings where a low-profile fixture is preferred.

• Covered porch and entry ceilings
• Soffits and overhangs
• Exterior walkways and passage ceilings
• Replacement of exterior flush mounts

Electrical requirements and dimming

The fixture is wired for 120V line-voltage operation. It is compatible with Triac (forward-phase) dimmers; verify the chosen dimmer's load range against the fixture's 24 W rating before installation.

• Voltage: 120V
• Dimming type: Triac (forward-phase)
• Verify dimmer load range for 24 W LED

Dimensions, materials, and finishes

The AFM0021 measures 11 inches wide with a 2.5-inch profile. The housing is 430 stainless steel and the diffuser is clear thick-wall acrylic with a frosted interior to produce diffuse illumination. Two finish SKUs are available.

• Width: 11 in
• Height (profile): 2.5 in
• Material: 430 Stainless Steel
• Diffuser: Clear thick-wall acrylic, frosted inside

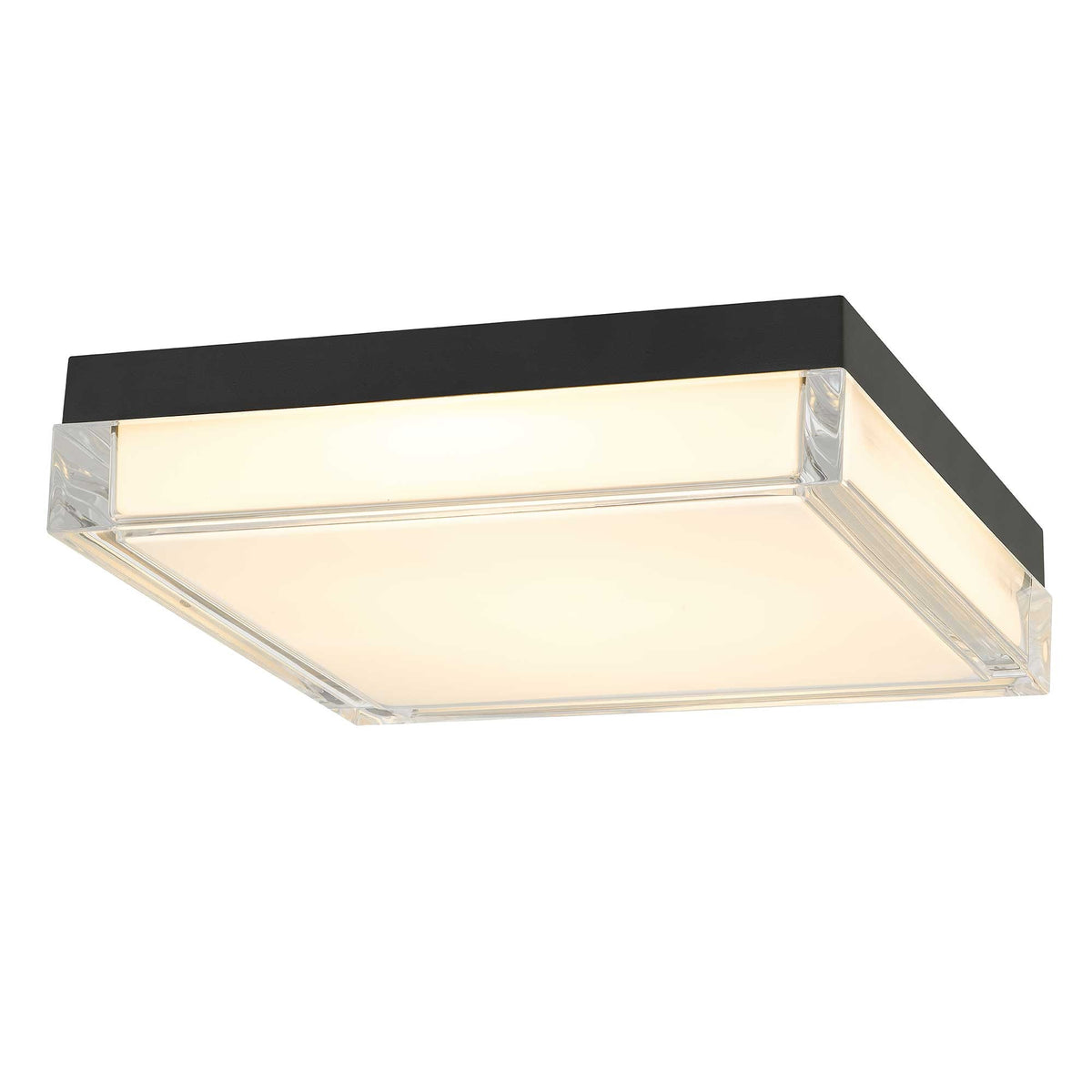

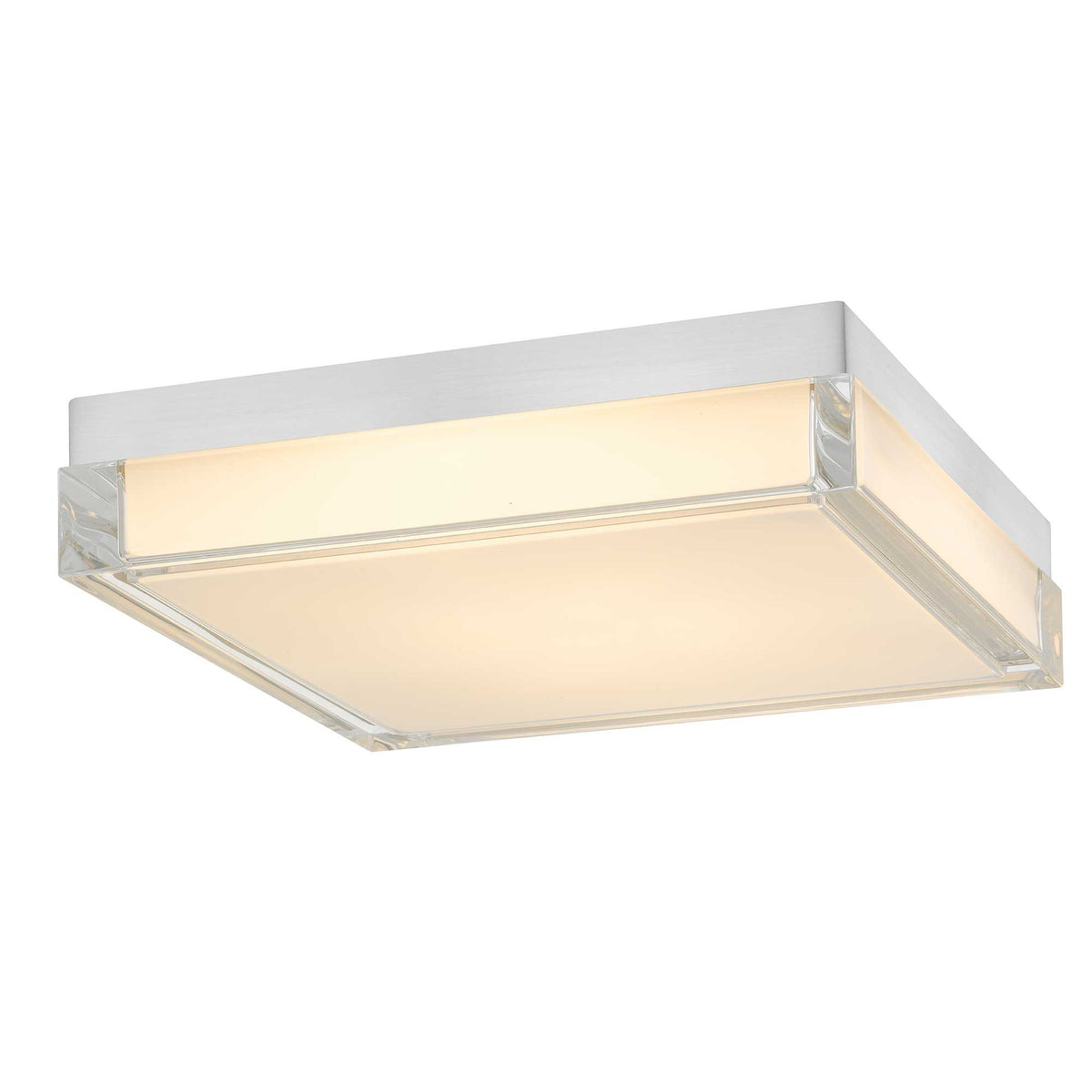

• Finish/SKUs: Brushed Stainless Steel (AFM0021-3CCT-W-BSS), Black (AFM0021-3CCT-W-BK)

Environmental rating and safety listings

The AFM0021 carries an IP44 rating and an ETL listing and is specified for wet-location installation in covered exterior ceiling applications. The LED is rated for 54,000 hours and manufacturer warranties cover finish and LED components.

• IP Rating: IP44
• Location rating: Wet Location (suitable for covered exterior ceilings)
• Safety listing: ETL Listed
• Rated life: 54,000 hours
• Warranties: 3-year finish, 5-year LED

Before You Order

Confirm the required SKU and finish, and that the mounting location is appropriate for an IP44-rated wet-location fixture and fits an 11" x 2.5" flush ceiling mount.

• Choose finish SKU: AFM0021-3CCT-W-BSS (Brushed Stainless) or AFM0021-3CCT-W-BK (Black).
• Verify supply voltage is 120V and that any Triac (forward-phase) dimmer supports a 24 W LED load.
• If replacing an existing fixture, confirm the junction box and clearance for the 2.5" profile.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Box 11 in. AFM0021 LED Outdoor Flush Mount, Selectable CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
