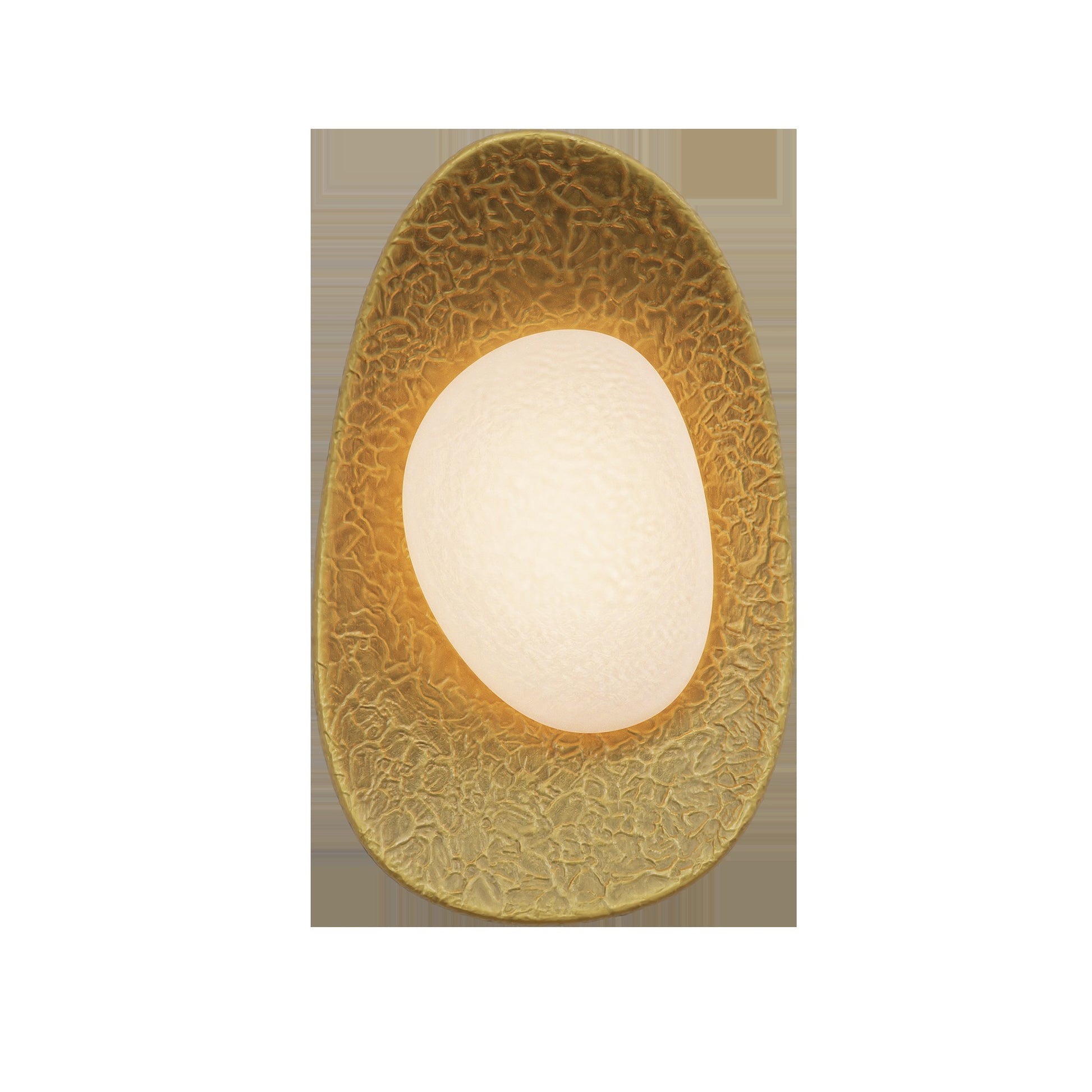

Alteck Organic 13.5 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0168-5CCT-W-PAB

Product Overview

The Alteck Organic AW0168-5CCT-W-PAB is a 13.5-inch outdoor LED wall sconce with an integrated 15 W LED that produces 414 lumens and has a rated life of 50,000 hours. Color temperature is field-selectable across 2700K–5000K (5‑CCT).

Constructed of fiberglass and white opal glass with a Painted Antique Brass finish, the fixture is IP65-rated for wet locations, ETL listed, ADA compliant, and designed to work with triac (forward‑phase) dimmers.

Key Features

• Integrated 15 W LED — 414 lumens, 50,000‑hour rated life
• Field-selectable color temperature: 2700K, 3000K, 3500K, 4000K, 5000K (5‑CCT)
• CRI 90
• IP65 wet-location rating
• Triac (forward‑phase) dimming compatibility
• Painted Antique Brass finish with white opal glass diffuser
• ETL listed; ADA compliant; 3‑year finish and 5‑year LED warranties

What this fixture does

The AW0168-5CCT-W-PAB provides diffuse exterior illumination for entries, facades and walkways using an integrated LED light source. Its low-profile, ADA-compliant design is intended for wall mounting in wet-location exterior applications.

Light output and color

The fixture delivers 414 lumens from a 15 W integrated LED with a rated life of 50,000 hours. Color temperature can be field-selected among five presets to match project requirements.

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• CRI: 90

Outdoor suitability and safety

The AW0168 has an IP65 rating and is rated for wet locations. The fixture is ETL listed and described as ADA compliant.

• IP Rating: IP65
• Location rating: Wet Location
• Safety listing: ETL Listed
• ADA compliant

Electrical and dimming compatibility

The sconce is specified for 120–277V operation and supports triac (forward‑phase) dimming. For Title 24 projects, the product notes indicate a Title 24-compliant control device is required for exterior use.

• Voltage: 120–277V
• Dimming: Triac (forward‑phase)
• Title 24: Requires a Title 24‑compliant control device for exterior use

Size, materials and finish

The AW0168 combines fiberglass and white opal glass in a Painted Antique Brass finish for exterior aesthetics and durability.

• Height: 13.5 in
• Width: 8.75 in
• Backplate: 6 D x 1.125 E
• Materials: Fiberglass and glass
• Finish: Painted Antique Brass
• Diffuser: White opal glass

Installation and project notes

Mount to a standard exterior junction box and confirm the chosen mounting location is suitable for wet‑location fixtures. Verify dimmer compatibility with the fixture's LED load and use a Title 24‑compliant control device where required by the project.

• Mounting type: Wall mount (standard exterior junction box)
• Verify forward‑phase dimmer compatibility with a 15 W LED load
• Specify Title 24‑compliant control device when project requires it

Before You Order

Confirm the model number, finish and quantity before ordering and verify mounting location and dimmer compatibility for your project.

• Confirm the AW0168-5CCT-W-PAB SKU and Painted Antique Brass finish.
• Verify the chosen forward‑phase dimmer supports a 15 W LED load.
• Use a Title 24‑compliant control device where the project requires it.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Organic 13.5 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0168-5CCT-W-PAB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
