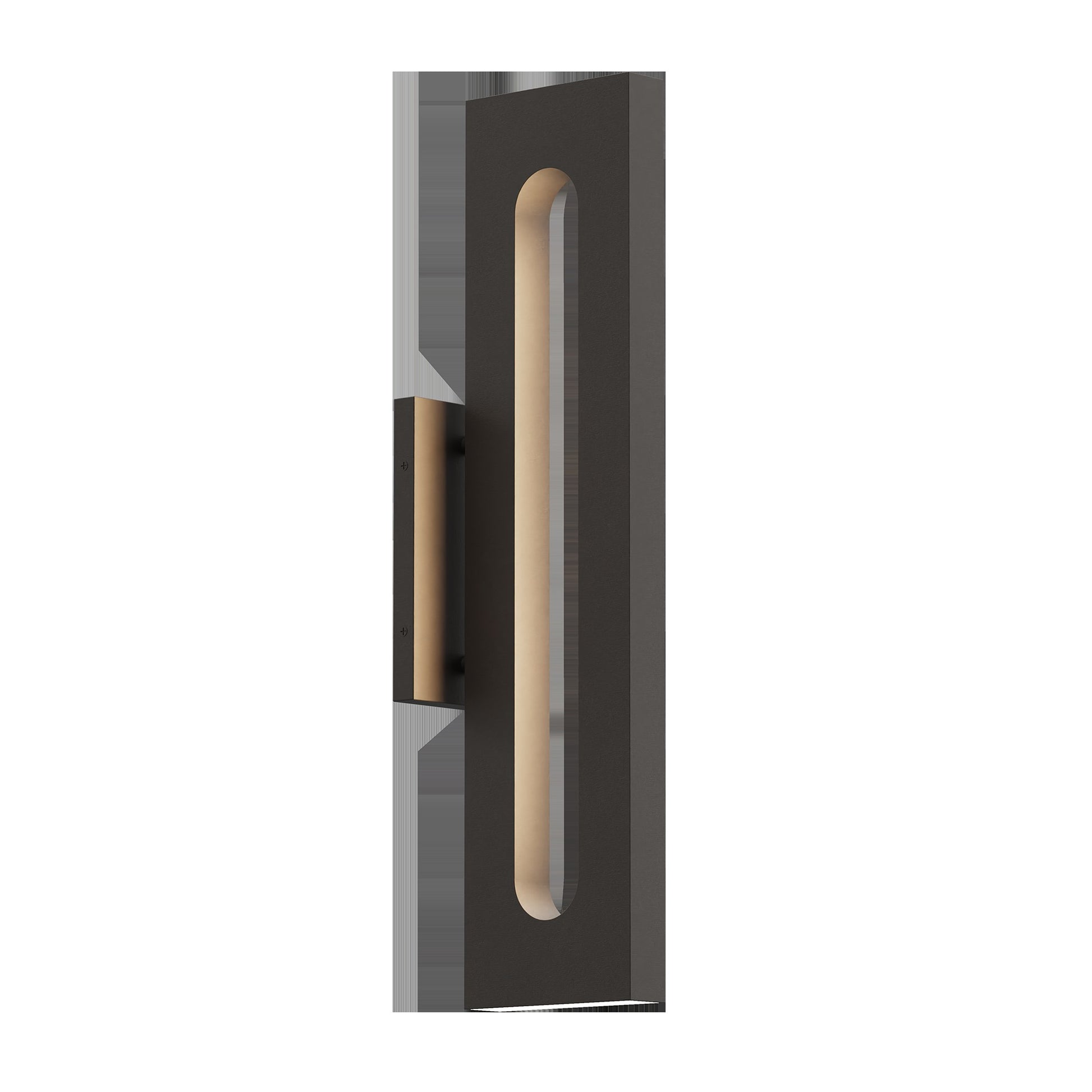

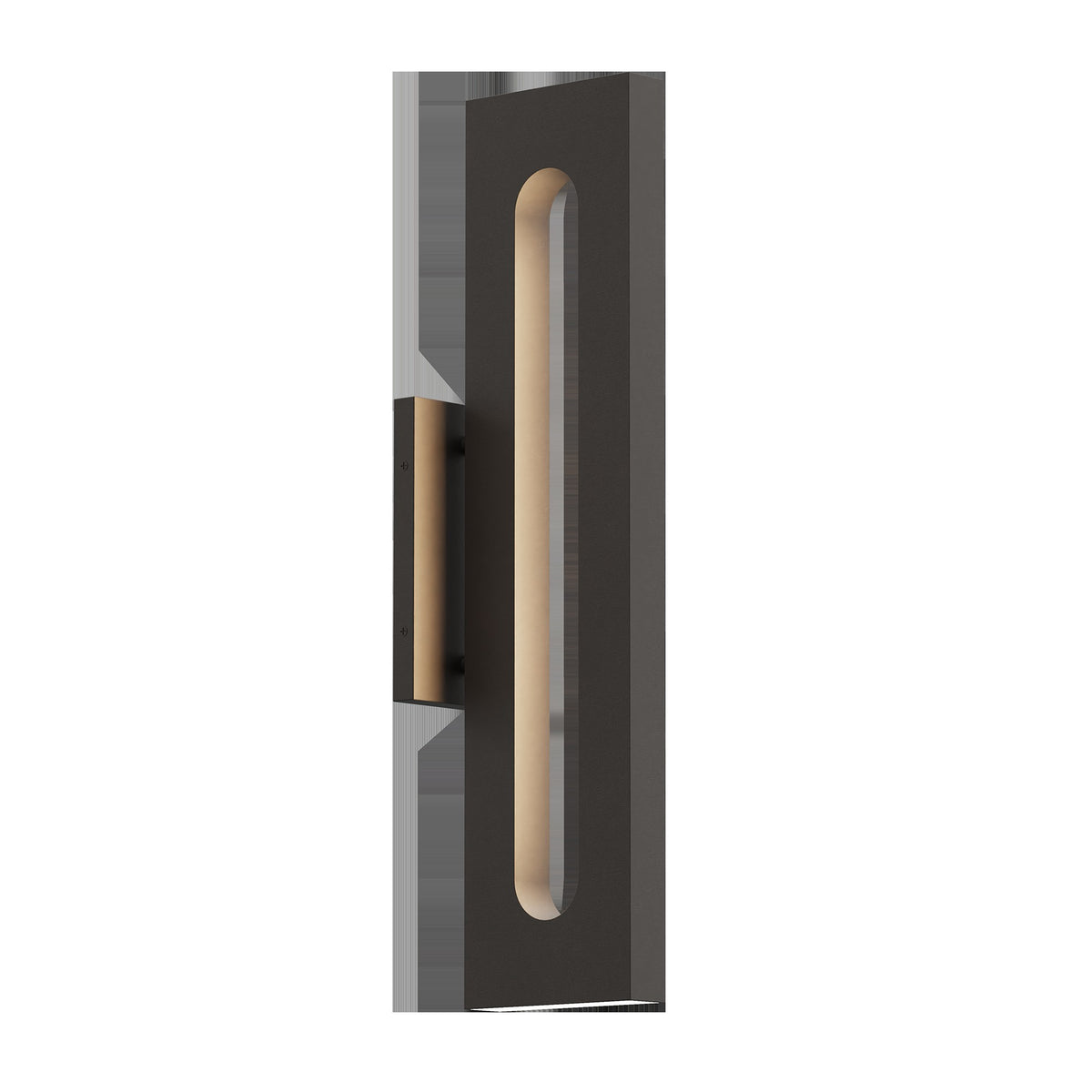

Alteck Loop 26 in. Bronze LED Outdoor Wall Sconce, Selectable CCT AW0165-5CCT-W-DBO

Product Overview

The Alteck Loop AW0165-5CCT-W-DBO is a 26-inch outdoor LED wall sconce with a solid brass body and Dark Bronze Oxide finish. It delivers 757 lumens from a 30 W integrated LED and offers field-selectable color temperatures from 2700K to 5000K (5-CCT).

The fixture is rated IP65 for exterior wet locations, is ETL listed, supports triac (forward-phase) dimming, and carries a listed rated life of 54,000 hours with a 5-year LED warranty and a 3-year finish warranty.

Key Features

• 30 W integrated LED — 757 lumens, CRI 90
• Field-selectable 5-CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• 120–277V line-voltage wiring
• Triac (forward-phase) dimming compatibility
• IP65 wet-location rating; ETL listed
• Solid brass construction with Dark Bronze Oxide finish
• Rated life: 54,000 hours; 5-year LED warranty, 3-year finish warranty

Function and light output

The AW0165-5CCT-W-DBO produces 757 lumens from a 30 W integrated LED and lists a CRI of 90. It includes a five-position field-selectable color temperature selector for 2700K, 3000K, 3500K, 4000K, or 5000K.

• Light output: 757 lm
• Wattage: 30 W (integrated LED)
• CRI: 90
• Selectable CCT: 2700K–5000K (5-CCT)

Recommended applications

The fixture is intended for exterior wall mounting and is suitable for use on entries, facades, and other exterior walls in residential or commercial settings where an IP65 wet-location rated sconce is required.

• Exterior entries and facades
• Exterior walls for residential or commercial properties

Electrical requirements and controls

The sconce is rated for 120–277V line-voltage operation and is specified as compatible with triac (forward-phase) dimming. For projects subject to Title 24 requirements, the product notes that a Title 24-compliant control device is required.

• Voltage: 120–277V
• Dimming: Triac (forward-phase) — verify dimmer compatibility and load range
• Title 24: Requires a Title 24-compliant control device for Title 24 applications

Construction, dimensions, and finish

The Loop sconce is constructed of solid brass with a Dark Bronze Oxide finish and carries an IP65 rating. Its vertical profile measures 26 inches high and 4.5 inches wide, with the listed backplate dimensions shown below.

• Material: Solid Brass
• Finish: Dark Bronze Oxide
• Height: 26 in; Width: 4.5 in
• Backplate: 4.5 in W x 7.875 in L x 1.125 in E
• IP Rating: IP65
• Safety listing: ETL listed

Mounting and installation notes

The fixture mounts to a standard exterior junction box as a wall-mounted sconce. Confirm the mounting location and site wiring match the fixture's voltage and wet-location rating prior to installation.

• Mounting type: Wall mount to standard exterior junction box
• Confirm compatibility of chosen dimmer with a 30 W LED load
• Ensure Title 24-compliant control device is provided when required by the project

Before You Order

Verify the required model number, mounting location, and that site wiring matches the fixture voltage and wet-location rating.

• Confirm mounting location is suitable for an IP65 wet-location fixture.
• Verify your chosen triac (forward-phase) dimmer is compatible with a 30 W LED load.
• Provide a Title 24-compliant control device when Title 24 is required by the project.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Loop 26 in. Bronze LED Outdoor Wall Sconce, Selectable CCT AW0165-5CCT-W-DBO. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
