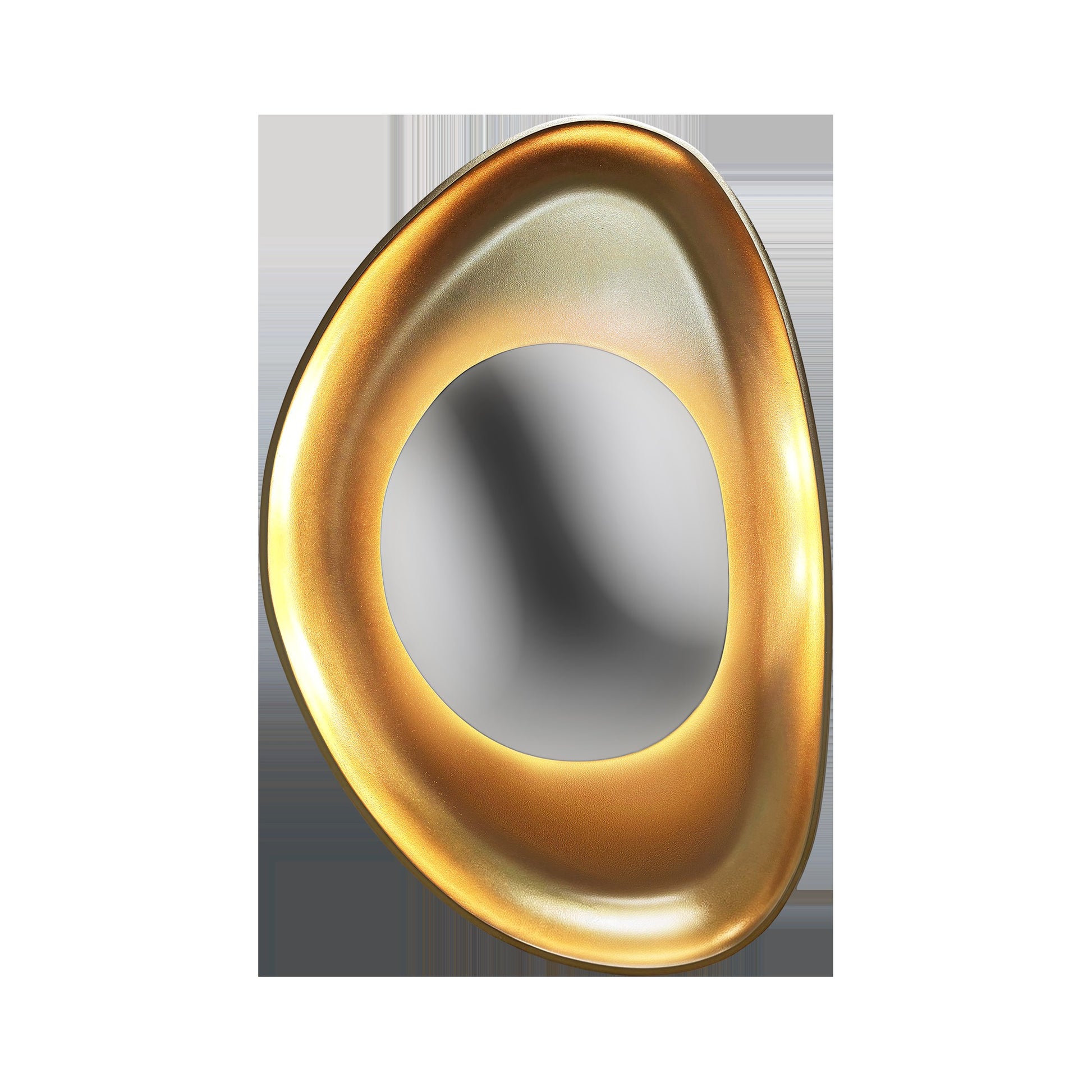

Alteck Blend 21 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0158-5CCT-W-PB

Product Overview

The Alteck Blend AW0158-5CCT-W-PB is a 21-inch outdoor LED wall sconce with an integrated 20 W LED engine that delivers 418 lumens and a field-selectable CCT range of 2700K through 5000K.

This IP65-rated, ADA-compliant fixture features a Painted Brass finish on a fiberglass and stainless-steel body with a polished stainless-steel diffuser and carries an ETL listing.

Key Features

• Integrated 20 W LED — 418 lumens, 50,000-hour rated life
• Field-selectable 5-CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• High color rendering: CRI 90
• 120–277V line-voltage wiring; triac (forward-phase) dimming compatible
• IP65 wet-location rated; ADA-compliant low profile
• 3-year finish warranty; 5-year LED warranty; ETL listed

Function and light output

This fixture provides 418 lumens from a 20 W integrated LED with a CRI of 90. The color temperature is field-selectable across five settings (2700K, 3000K, 3500K, 4000K, 5000K), allowing one SKU to cover different warm-to-cool exterior lighting preferences.

• Output: 418 lumens from 20 W
• Selectable CCT: 2700K–5000K (5-CCT)
• Color rendering: CRI 90
• Rated life: 50,000 hours

Electrical and mounting requirements

The AW0158-5CCT-W-PB is wired for 120–277V line-voltage operation and is listed as compatible with triac (forward-phase) dimmers. Confirm dimmer compatibility and load range prior to installation. The fixture mounts to a wall and is intended for use with standard exterior junction boxes.

• Voltage: 120–277V
• Dimming: Triac (forward-phase) — use a compatible dimmer
• Mounting type: Wall mount
• Title 24 note: Requires a Title 24-compliant control device for Title 24 exterior projects

Construction, ratings, and warranties

Designed for exterior wet locations, the fixture carries an IP65 rating and an ETL listing. The housing combines fiberglass and stainless steel with a Painted Brass finish and a polished stainless-steel diffuser. Manufacturer warranties are 3 years for finish and 5 years for the LED.

• Location rating: Wet location
• IP rating: IP65
• Safety listing: ETL listed
• Materials: Fiberglass and stainless steel; Painted Brass finish
• Warranties: 3-year finish, 5-year LED

Size and backplate

Verify fixture dimensions and backplate size to ensure proper placement and mounting clearance on the installation surface. The fixture is ADA-compliant and sized for exterior wall applications.

• Height: 21 in
• Width: 14 in
• Backplate: 10.25 D x 1.125 E
• ADA compliant: Yes

Before You Order

Verify mounting location, junction-box compatibility, and dimmer compatibility for a 20 W fixture before ordering.

• Match fixture dimensions and backplate to mounting surface
• Verify triac dimmer compatibility and load range for 20 W fixtures
• For Title 24 projects, plan to install a Title 24-compliant control device

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Blend 21 in. Brass LED Outdoor Wall Sconce, Selectable CCT AW0158-5CCT-W-PB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
