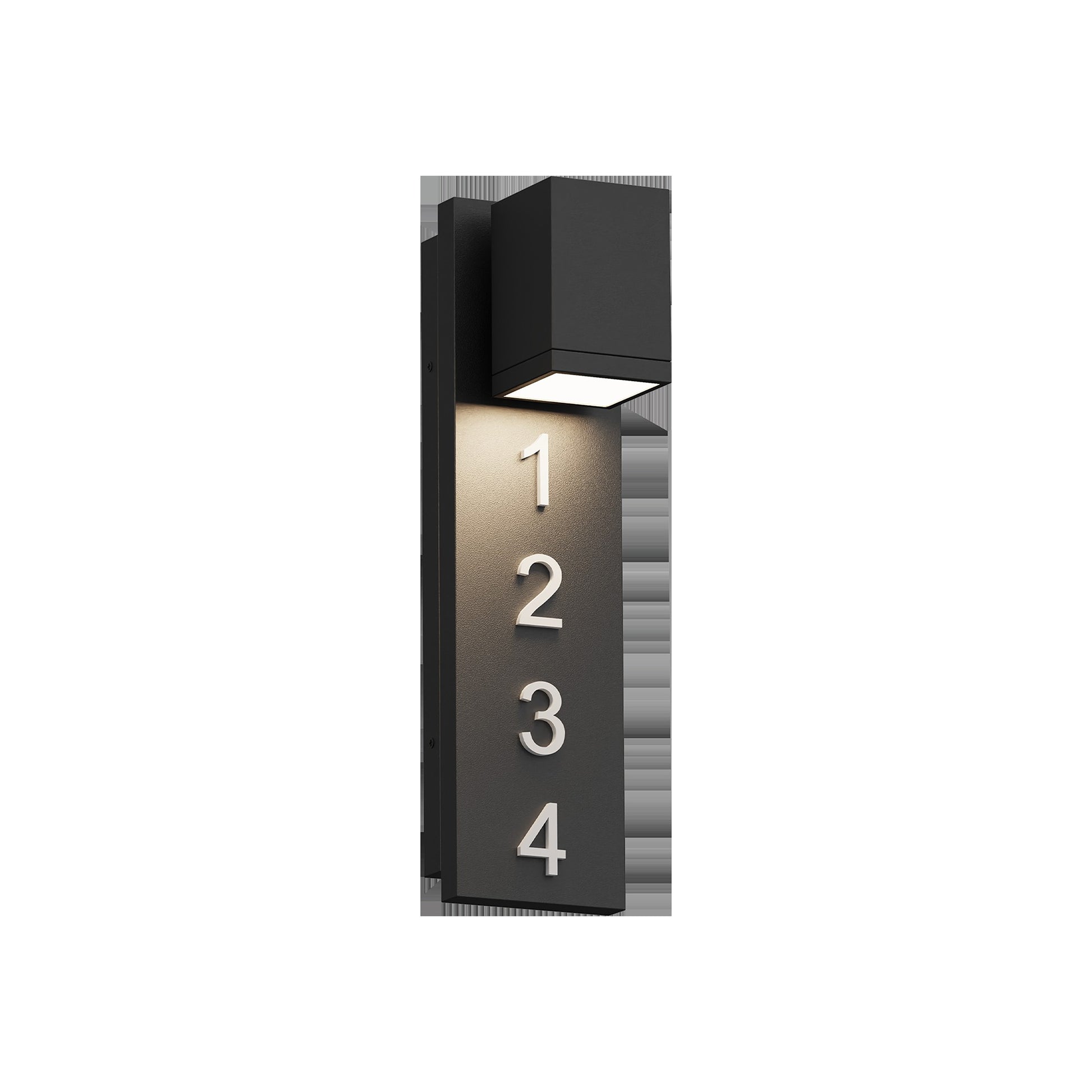

Alteck Bishop 19 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0156-5CCT-W-BK

Product Overview

The Alteck Bishop AW0156-5CCT-W-BK is a 19-inch outdoor LED wall sconce with a Sand Black aluminum body and an integrated 12 W LED producing 401 lumens.

Field-selectable color temperature (5-CCT) allows selection between 2700K and 5000K on site; the fixture is IP65-rated for wet locations and carries an ETL listing.

Key Features

• Selectable CCT: 2700K through 5000K (5-CCT)
• Integrated LED: 12 W, 401 lumens, 54,000-hour rated life, 90 CRI
• Electrical: 120–277V line-voltage operation; triac (forward-phase) dimmable
• Outdoor-ready: IP65 rating and wet-location listing; downward-directed Dark-Sky-friendly design
• Construction & Warranty: Aluminum body in Sand Black finish; 3-year finish and 5-year LED warranties; ETL listed

What this fixture does

The Alteck Bishop AW0156-5CCT-W-BK is intended for exterior wall-mounted illumination of entries, facades, walkways, and perimeters. It provides downward-directed light and uses an integrated LED source.

Light output and lifetime

This model produces 401 lumens from a 12 W integrated LED and has a color-rendering index (CRI) of 90. The LED is rated for 54,000 hours.

• Lumens: 401 lm
• Wattage: 12 W (integrated)
• CRI: 90
• Rated life: 54,000 hours

Voltage and dimming

The AW0156-5CCT-W-BK is rated for 120–277V line-voltage operation and supports triac (forward-phase) dimming.

• Voltage: 120–277V
• Dimming: Triac (forward-phase)

Mounting and environmental suitability

This sconce is designed for wall-mount installation and is rated for wet locations (IP65). The product information indicates a downward-directed design described as Dark-Sky-friendly.

• Mounting type: Wall mount
• Location rating: Wet Location
• IP rating: IP65
• Dark-Sky-friendly: Yes

Size and backplate dimensions

Check the fixture dimensions and backplate size against the mounting surface and junction box before installation.

• Overall height: 19 in
• Width: 5 in
• Backplate: 4.375 in W x 17.375 in L x 0.75 in E

Listings, finish and warranty

The fixture is ETL listed and includes a 3-year finish warranty and a 5-year LED warranty. For Title 24 projects, a Title 24-compliant control device is required where applicable.

• Safety listing: ETL Listed
• Finish warranty: 3 years
• LED warranty: 5 years
• Title 24: Requires a Title 24-compliant control device for Title 24 projects

Before You Order

Verify the model and that the mounting location and junction box meet wet-location requirements and can accommodate the backplate dimensions.

• Confirm AW0156-5CCT-W-BK is the correct model and quantity
• Verify junction box location and backplate fit (4.375" x 17.375" x 0.75")
• If dimming, match a forward-phase (Triac) dimmer and check dimmer load range
• For Title 24 projects, plan to use a Title 24-compliant control device if required

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Bishop 19 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0156-5CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
