Alteck Aura 12.125 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0145-3CCT-W-BK

Product Overview

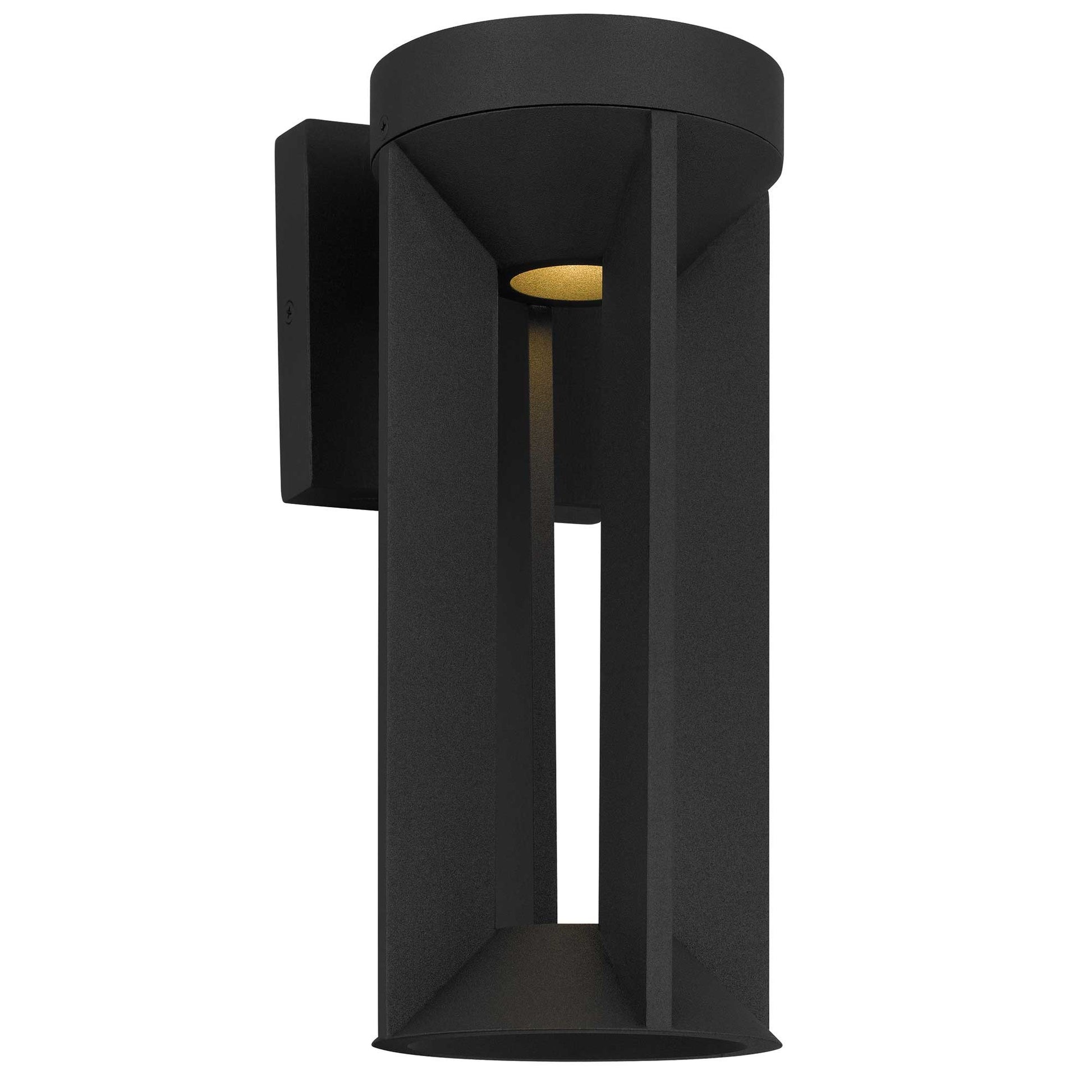

The Alteck Aura AW0145-3CCT-W-BK is a 12.125-inch aluminum outdoor LED wall sconce in a Sand Black finish. It produces 150 lumens from a 5 W integrated LED and offers field-selectable color temperatures of 3000K, 4000K, or 5000K.

The fixture is rated IP44 for wet-location use, ETL listed, triac-dimmable (forward-phase), and uses a Sand Blast glass diffuser for even illumination. Rated life is listed as 54,000 hours and the product includes a 5-year LED warranty and a 3-year finish warranty.

Key Features

• 5 W integrated LED producing 150 lumens
• Field-selectable CCT: 3000K, 4000K, or 5000K (3‑CCT)
• Triac (forward-phase) dimmable
• IP44 wet-location rating; ETL listed
• Downward-directed, limited uplight (dark-sky friendly design)
• Sand Black aluminum finish with Sand Blast glass diffuser
• Rated life 54,000 hours; 5-year LED warranty; 3-year finish warranty

What this fixture does

The AW0145-3CCT-W-BK provides approximately 150 lumens of diffuse, downward-directed light from a 5 W integrated LED. The field-selectable CCT setting lets a single fixture be set to 3000K, 4000K, or 5000K on site.

• Integrated LED with a listed rated life of 54,000 hours
• Sand Blast glass diffuser for even light distribution
• Design limits uplight to reduce glare

Where to use it

Intended for exterior wall installations such as entries, façades, walkways, and perimeter walls on residential and commercial properties. The IP44 rating corresponds to protection against splashing water and is consistent with many exterior applications; select mounting locations accordingly.

• Exterior entry and facade wall lighting
• Walkways and building perimeters
• Residential and commercial exterior walls
• Replacement for older exterior wall sconces

Electrical and dimming compatibility

Wired for 120V line-voltage operation. The fixture supports triac (forward-phase) dimming; verify your dimmer is rated to operate with low-wattage LED loads and is compatible with forward-phase dimming before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase) — confirm dimmer compatibility with a 5 W LED load

Size, materials, and finish

Overall height is 12.125 inches with a 5-inch width. Constructed from aluminum with a Sand Black finish, the fixture includes a backplate listed as 4.75 L x 4.5 W x 1 E and a Sand Blast glass diffuser.

• Height: 12.125 in
• Width: 5 in
• Backplate: 4.75 L x 4.5 W x 1 E
• Material: Aluminum; Finish: Sand Black

Environmental ratings and warranties

The AW0145-3CCT-W-BK is ETL listed and carries an IP44 rating. Warranty coverage includes a 3-year finish warranty and a 5-year LED warranty as provided with the product.

• IP Rating: IP44
• Location Rating: Wet Location
• Safety Listing: ETL Listed
• Finish Warranty: 3 years; LED Warranty: 5 years

Before You Order

Verify the model (AW0145-3CCT-W-BK), required quantity, and that your mounting location and junction box support a wall-mounted IP44-rated fixture. If using dimming, confirm your dimmer is compatible with a 5 W LED load and forward-phase (triac) dimming.

• Confirm model: AW0145-3CCT-W-BK
• Verify mounting location and junction box support wall-mount and IP44 suitability
• Confirm dimmer compatibility with a 5 W forward-phase (triac) LED load
