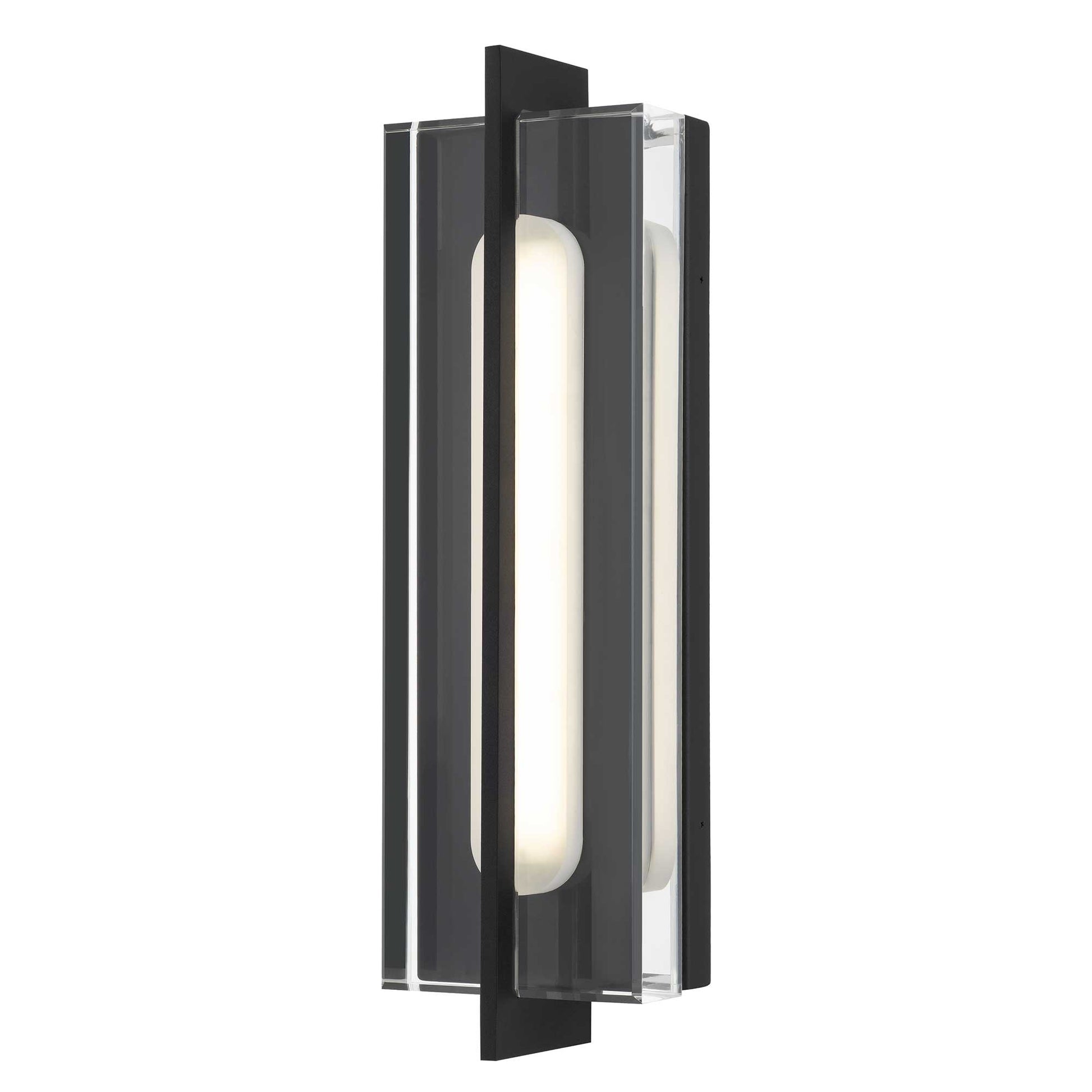

Alteck Avani 20 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0144-3CCT-W-BK

Product Overview

The Alteck Avani AW0144-3CCT-W-BK is a 20-inch integrated-LED outdoor wall sconce that produces 857 lumens from a 16 W LED and offers a field-selectable 3-CCT option: 3000K, 4000K, or 5000K.

It features an aluminum body with a Sand Black finish, a clear acrylic diffuser with internal sand blast, an IP44 rating for wet-location exterior use, ETL listing, triac (forward-phase) dimmable capability, and an ADA-compliant low-profile design.

Key Features

• 16 W integrated LED producing 857 lumens (rated life: 54,000 hours)
• Field-selectable CCT: 3000K / 4000K / 5000K (3-CCT)
• Triac (forward-phase) dimmable
• IP44 wet-location rating
• ETL listed
• Aluminum construction with Sand Black finish; clear acrylic diffuser with sand blast inside
• ADA-compliant low-profile design
• 3-year finish warranty and 5-year LED warranty

What this fixture does

The Alteck Avani AW0144-3CCT-W-BK is an integrated-LED outdoor wall sconce that provides diffuse illumination for exterior walls, entries, walkways, and building facades.

Its low-profile, ADA-compliant form factor is intended for locations where a compact exterior sconce is preferred.

Light output and color temperature

This model produces 857 lumens from a 16 W integrated LED and has a Color Rendering Index (CRI) of 80.

A field-selectable 3-CCT switch allows selection between 3000K, 4000K, and 5000K so a single SKU can be set to the desired color temperature on site.

• Output: 857 lumens
• Wattage: 16 W
• Selectable CCT: 3000K / 4000K / 5000K
• CRI: 80
• Rated life: 54,000 hours

Electrical requirements and dimming

The fixture is wired for 120V line-voltage operation and is described as compatible with triac (forward-phase) dimmers.

Select a dimmer that supports low-wattage LED loads and verify the dimmer's load range and compatibility with the fixture before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase) compatible

Mounting and physical dimensions

The Avani AW0144 is designed for wall mounting on standard exterior junction boxes. Check the fixture dimensions and backplate against the mounting surface prior to installation.

Confirm clearance and mounting details on site to ensure the backplate and overall height fit the intended location.

• Overall height: 20 in
• Width: 6 in
• Backplate: 17.625 in L x 6 in W x 1 in E
• Mounting type: Wall mount
• Material: Aluminum; Finish: Sand Black
• Diffuser: Clear acrylic with sand blast inside

Environmental suitability and listings

The fixture carries an IP44 rating, indicating protection against solid objects and splashing water; installation should follow local codes and wet-location practices.

It is ETL listed and comes with a 3-year finish warranty and a 5-year LED warranty.

• Location rating: Wet Location
• IP rating: IP44
• Safety listing: ETL Listed
• ADA-compliant: Yes
• Finish warranty: 3 years; LED warranty: 5 years

Before You Order

Verify the model number and quantity before ordering. Ensure the intended mounting location and junction box meet wet-location installation practices and local codes.

• Confirm your wall dimmer supports triac (forward-phase) operation and is compatible with low-wattage LED fixtures.
• If a specific color temperature is required, set the fixture's CCT in the field prior to final installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Avani 20 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0144-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
