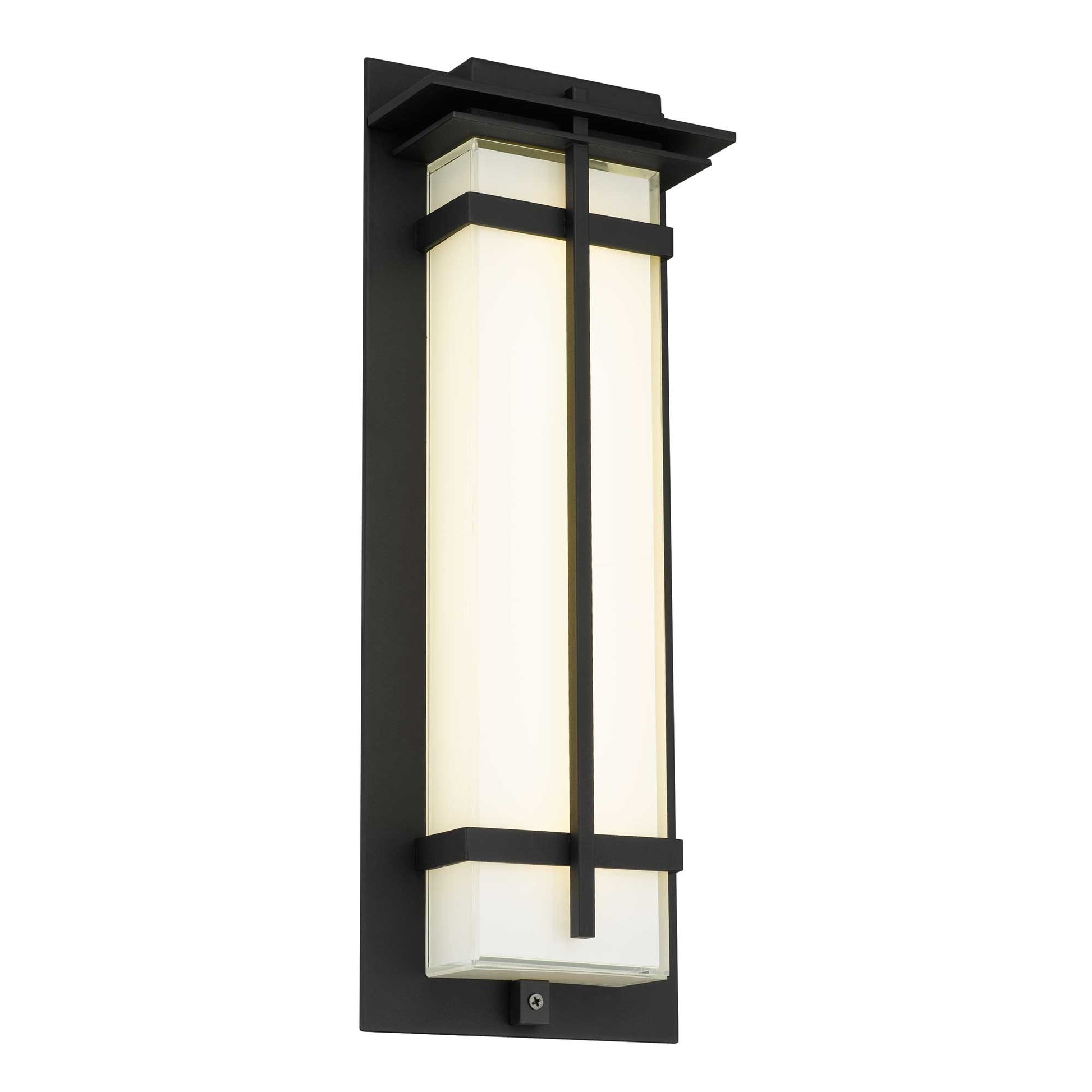

Alteck Frank 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0137-3CCT-W-BK

Product Overview

Integrated LED outdoor wall sconce from Alteck's Frank collection delivering 678 lumens from a 17 W integrated LED with a field-selectable 3000K, 4000K, or 5000K color temperature.

Sand Black aluminum body with mitered white glass diffuser, IP44 wet-location rating, ADA-compliant low-profile design, triac (forward-phase) dimmable, ETL listed.

Key Features

• Selectable CCT: 3000K / 4000K / 5000K (field-selectable)
• Light output: 678 lumens from a 17 W integrated LED
• Voltage: 120–277V line-voltage wiring
• Dimming: Triac (forward-phase) compatible
• IP44 wet-location rating
• ADA-compliant low-profile design
• Mitered white glass diffuser for even, diffuse illumination
• Rated life: 54,000 hours; 3-year finish and 5-year LED warranties
• ETL listed

What this fixture does

The Alteck Frank AW0137-3CCT-W-BK is an integrated LED outdoor wall sconce that produces 678 lumens from a 17 W LED module. A field-selectable switch lets you choose 3000K, 4000K, or 5000K color temperature without replacing the fixture.

• Output: 678 lm at 17 W
• CRI: 90
• Field-selectable 3-CCT (3000K / 4000K / 5000K)

Where to use the Alteck Frank AW0137-3CCT-W-BK

Intended for exterior wall mounting, the sconce suits entries, facades, walkways, and other exterior wall locations for residential or commercial properties where diffuse wall-mounted illumination is required.

• Typical applications: entry and facade wall lighting, walkways, building perimeters
• Mitered white glass diffuser provides even, low-glare illumination

Electrical and dimming requirements

The fixture is rated for 120–277V line-voltage operation and is listed as triac (forward-phase) dimmable. Verify dimmer compatibility with the fixture's 17 W load and follow the dimmer manufacturer's guidance.

• Voltage: 120–277V
• Dimming: Triac (forward-phase) — verify dimmer/load compatibility

Dimensions, materials, and finish

Constructed from aluminum with a Sand Black finish and a mitered white glass diffuser, the sconce has a low-profile, ADA-compliant design intended to minimize projection from the mounting surface.

• Height: 18 in
• Width: 6.5 in
• Backplate: 16.875 L x 5.125 W x 1.125 E (in)
• Material: Aluminum; Finish: Sand Black; Diffuser: Mitered White Glass

Environmental ratings and warranty

The AW0137 has an IP44 rating for wet-location exposure on exterior walls and is ETL listed. The LED is rated for 54,000 hours. Warranty coverage includes a 3-year finish warranty and a 5-year LED warranty.

• Location rating: Wet Location
• IP rating: IP44
• Safety listing: ETL Listed
• Rated life: 54,000 hours
• Finish warranty: 3 years; LED warranty: 5 years
• ADA compliant

Before You Order

Verify the mounting location is suitable for an IP44 wet-rated wall fixture and confirm dimmer compatibility with a 17 W triac (forward‑phase) load.

• Confirm the AW0137-3CCT-W-BK SKU and Sand Black finish for your project.
• Verify junction box wiring is 120–277V line voltage.
• If dimming, check the dimmer manufacturer's minimum load and compatibility with a 17 W forward‑phase (triac) load.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Frank 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0137-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
