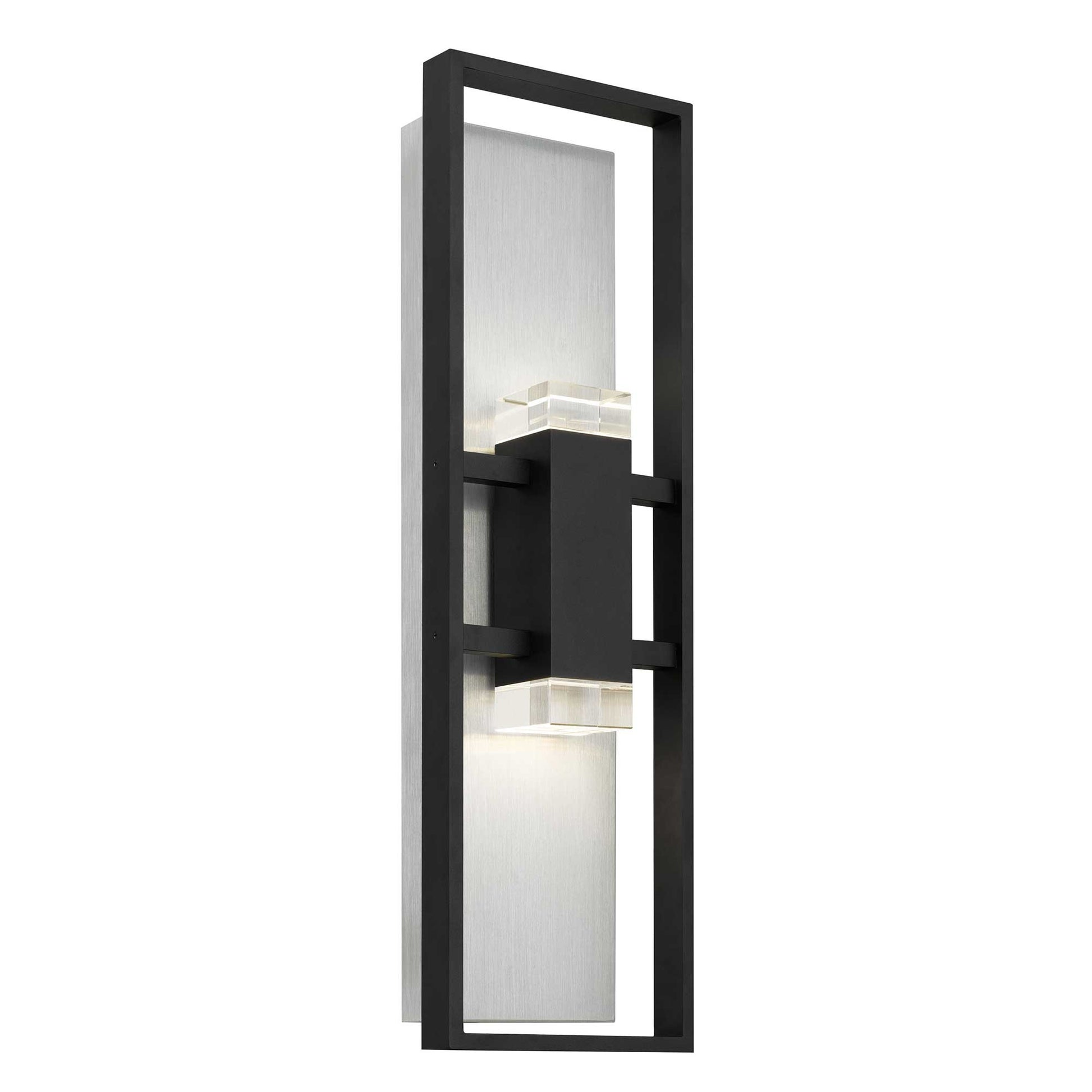

Alteck Mars 24 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0107-3CCT-W-BK

Product Overview

The Alteck Mars AW0107-3CCT-W-BK is a 24-inch outdoor LED wall sconce with a Sand Black aluminum body and clear glass diffuser. Its integrated 20 W LED produces 1,025 lumens and offers field-selectable color temperature (3000K, 4000K, 5000K).

The fixture is rated IP44 for exterior wet-location exposure, is ETL listed, ADA-compliant, and includes a 3-year finish warranty and 5-year LED warranty.

Key Features

• Integrated 20 W LED delivering 1,025 lumens (CRI 80)
• Field-selectable color temperature: 3000K, 4000K, 5000K (3-CCT)
• Triac (forward-phase) dimmable with a compatible wall dimmer
• IP44 rating for exterior wet-location exposure and ETL listed
• ADA-compliant low-profile design with clear glass diffuser
• Aluminum construction with Sand Black finish
• Rated life: 50,000 hours; Finish warranty: 3 years; LED warranty: 5 years

What this fixture does

The Alteck Mars AW0107-3CCT-W-BK provides exterior wall illumination using an integrated LED module. It is intended for mounting on exterior walls to illuminate entries, facades, walkways, and building perimeters while maintaining a low profile.

• Common applications: exterior entry and facade lighting, walkways, building perimeters, residential and commercial exteriors
• Design: low-profile ADA-compliant sconce with a clear glass diffuser for even illumination

Light output and color temperature

This model delivers 1,025 lumens from a 20 W integrated LED and has a Color Rendering Index (CRI) of 80. Color temperature is selectable in the field between 3000K, 4000K, and 5000K.

• Lumens: 1,025 lm
• Wattage: 20 W (integrated LED)
• CCT options: 3000K / 4000K / 5000K (field-selectable)
• CRI: 80
• Rated life: 50,000 hours

Electrical and dimming compatibility

The fixture is wired for 120V line-voltage operation and is dimmable using Triac (forward-phase) dimmers. Verify that the chosen dimmer is compatible with LED loads and that its load range is appropriate for a 20 W fixture.

• Voltage: 120V
• Dimming: Triac (forward-phase) — requires a dimmer compatible with low-wattage LED loads

Outdoor suitability and certifications

The Mars sconce carries an IP44 rating appropriate for exterior wet-location exposure on walls and is ETL listed. It is noted as ADA-compliant for low-profile mounting where required.

• Location rating: Wet Location
• IP rating: IP44
• Safety listing: ETL Listed
• ADA compliant: Yes

Size, materials, and finish

The fixture is constructed from aluminum with a Sand Black finish and a clear glass diffuser. Dimensions are provided for planning mounting and clearances.

• Height: 24 in
• Width: 7.125 in
• Backplate: 22.5 in L x 5.5 in W x 1.25 in E
• Material: Aluminum
• Finish: Sand Black
• Diffuser: Clear Glass
• Country of Origin: China

Before You Order

Confirm the model number and required quantity, and verify the intended mounting location is suitable for an IP44-rated wall fixture.

• Ensure a standard 120V exterior junction box is available for hardwiring.
• Confirm the chosen Triac (forward-phase) dimmer is rated for LED loads and appropriate for a 20 W fixture.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Mars 24 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0107-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
