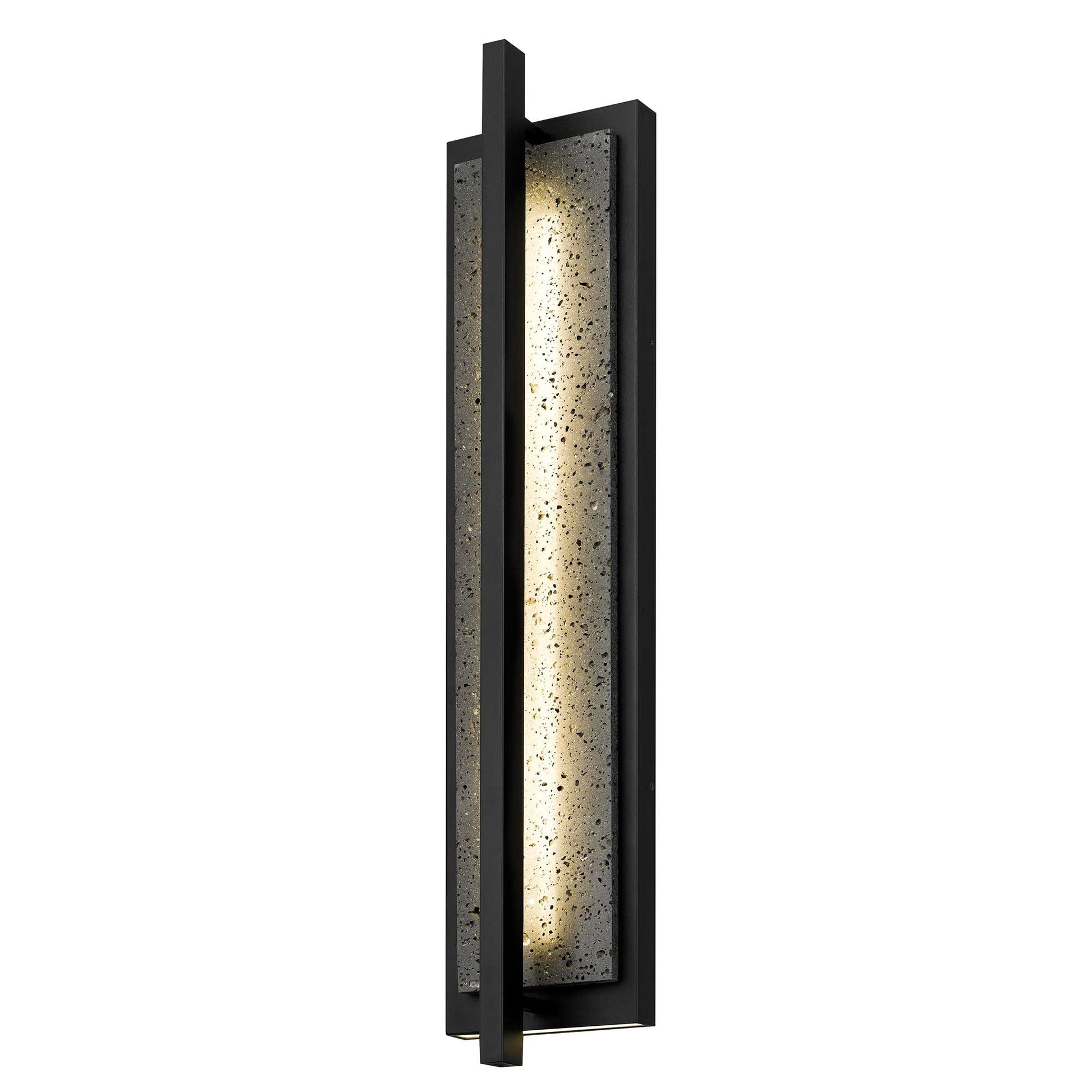

Alteck Dakota 32 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0104-3CCT-W-BK

Product Overview

The Alteck Dakota AW0104-3CCT-W-BK is a 32-inch outdoor wall sconce with a 30W integrated LED that produces 236 lumens and offers field-selectable color temperatures (3000K, 4000K, 5000K).

Constructed from aluminum with a Sand Black finish and a sand blast glass diffuser, the fixture is IP44-rated for wet locations, ETL-listed, ADA-compliant, and triac (forward-phase) dimmable.

Key Features

• Field-selectable 3-CCT: 3000K, 4000K, or 5000K
• Integrated 30W LED with rated life of 54,000 hours
• Output: 236 lumens, CRI 80
• Triac (forward-phase) dimmable
• IP44 wet-location rated and ETL listed
• Aluminum housing with Sand Black finish and sand blast glass diffuser
• ADA-compliant low-profile design
• 3-year finish warranty and 5-year LED warranty

What this fixture does

The Alteck Dakota AW0104-3CCT-W-BK is an exterior wall sconce designed for entries, facades, walkways, and perimeter lighting. It provides diffuse illumination via a sand blast glass diffuser and features a low-profile, ADA-compliant housing.

• Typical applications: exterior entry and facade wall lighting, walkways, residential and commercial exteriors, replacement of older exterior sconces
• Finish: Sand Black on aluminum body

Light output and LED life

This model uses a 30W integrated LED that produces 236 lumens with a CRI of 80. Color temperature is selectable in the field between 3000K, 4000K, and 5000K.

• Lumens: 236 lm
• Wattage: 30 W (integrated)
• CRI: 80
• Rated life: 54,000 hours
• Field-selectable CCT: 3000K / 4000K / 5000K

Electrical and dimming requirements

The fixture is wired for 120V line-voltage operation and supports triac (forward-phase) dimming. Verify dimmer compatibility and load range prior to installation.

• Voltage: 120V
• Dimming type: Triac (forward-phase)
• Verify compatible dimmer and load range before installation

Mounting, dimensions, and physical details

The Dakota sconce mounts to a standard exterior junction box as a wall-mounted fixture. Its tall vertical form and low-profile backplate suit walkway and entry applications where ADA compliance is required.

• Mounting type: Wall mount
• Overall height: 32 in
• Width: 6.5 in
• Backplate: 29.25 L x 6.5 W x 1.125 E (in)
• Material: Aluminum; Diffuser: Sand Blast Glass

Environmental ratings and compliance

The AW0104-3CCT-W-BK is rated for wet-location exterior use with an IP44 rating and carries an ETL listing. The fixture includes manufacturer warranties for finish and LED components.

• Location rating: Wet Location
• IP rating: IP44
• Safety listing: ETL Listed
• ADA-compliant
• Finish warranty: 3 years; LED warranty: 5 years

Before You Order

Confirm the SKU, quantity, and that the installation location is suitable for an IP44 wet-location fixture.

• Confirm AW0104-3CCT-W-BK is the required SKU and that dimensions fit the installation site.
• Verify supply voltage is 120V and check dimmer compatibility and load range if dimming is needed.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Dakota 32 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0104-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
