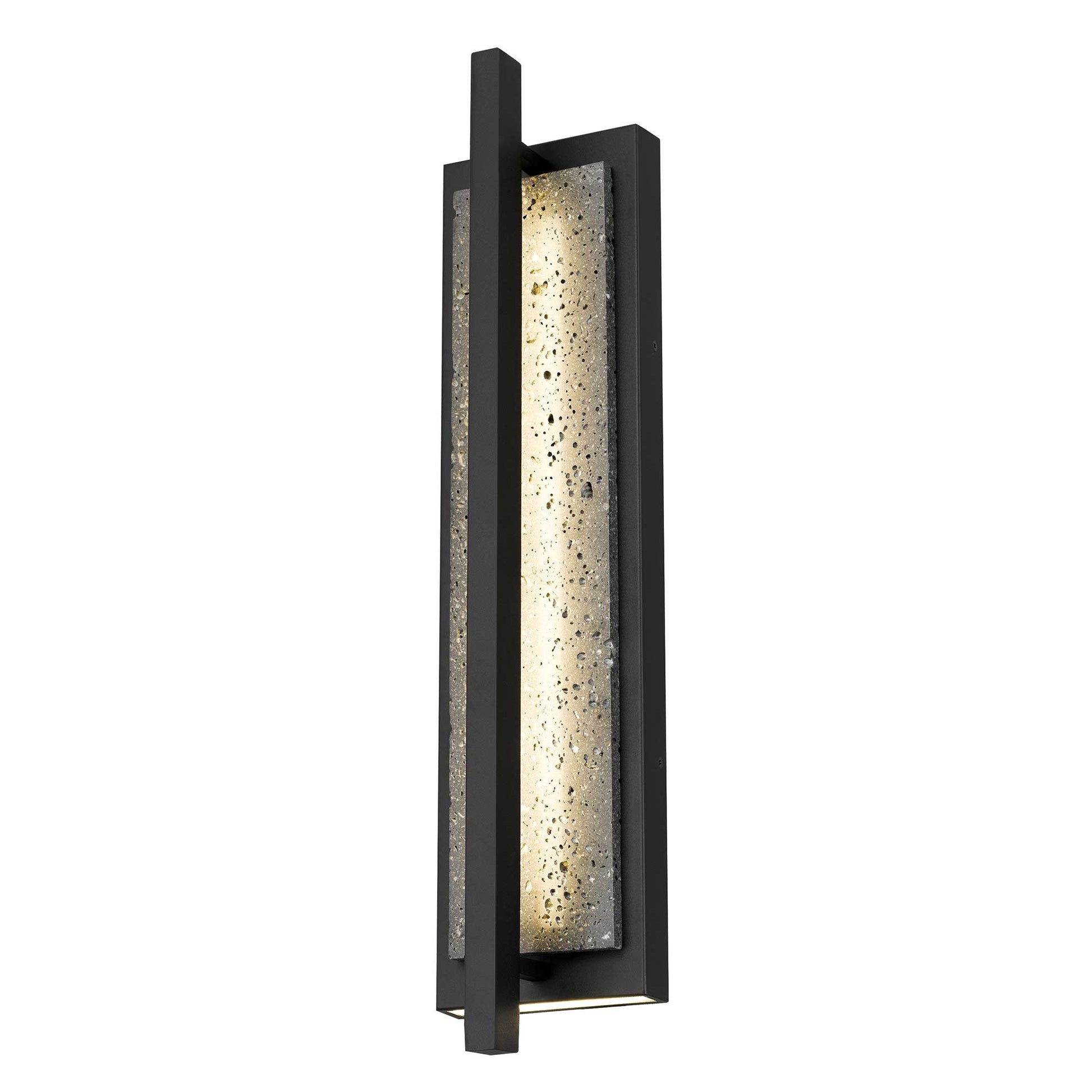

Alteck Dakota 24 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0103-3CCT-W-BK

Product Overview

The Alteck Dakota AW0103-3CCT-W-BK is a 24-inch outdoor LED wall sconce with a 20 W integrated LED that produces 226 lumens and offers a field-selectable color temperature of 3000K, 4000K, or 5000K.

The fixture has an aluminum body with a Sand Black finish and a sand blast glass diffuser. It is IP44-rated for wet locations, ADA-compliant, triac-dimmable, and ETL listed.

Key Features

• Selectable CCT: field-selectable 3000K, 4000K, or 5000K (3-CCT)
• Integrated 20 W LED producing 226 lumens with 80 CRI
• Rated life: 54,000 hours; LED warranty: 5 years; finish warranty: 3 years
• IP44 wet-location rating and ETL listed
• Triac (forward-phase) dimming compatible
• ADA-compliant low-profile design with sand blast glass diffuser
• Aluminum body in Sand Black finish

Function and output

Answer: The AW0103-3CCT provides diffuse exterior illumination from a 20 W integrated LED that produces 226 lumens. A field-selectable switch allows choosing 3000K, 4000K, or 5000K color temperature.

• Output: 226 lumens
• Wattage: 20 W (integrated LED)
• CRI: 80
• Selectable CCT: 3000K / 4000K / 5000K

Applications and suitability

Answer: The fixture is intended for exterior wall mounting where a low-profile, ADA-compliant outdoor sconce is required.

• Typical uses: exterior entry lighting, walkways, building facades
• Diffuser: sand blast glass for even, diffuse illumination

Electrical and dimming

Answer: The fixture is wired for 120V line-voltage operation and supports triac (forward-phase) dimming.

• Voltage: 120V
• Dimming: Triac (forward-phase) — verify dimmer compatibility for a 20 W load
• Mounting: installs to a standard exterior junction box

Dimensions and mounting

Answer: The AW0103-3CCT is a narrow, tall wall sconce with a compact backplate footprint for wall installation.

• Overall height: 24 in
• Width: 5.5 in
• Backplate: 21.25 L x 5.5 W x 1.125 E
• Material: Aluminum
• Mounting type: Wall mount

Ratings and warranty

Answer: The fixture carries safety and environmental ratings for protected exterior use and includes manufacturer warranty coverage for finish and LED components.

• IP rating: IP44
• Safety listing: ETL Listed
• ADA-compliant: Yes
• Rated life: 54,000 hours
• Warranties: 3-year finish warranty; 5-year LED warranty
• Country of origin: China

Before You Order

Verify the SKU and that the planned mounting location is appropriate for an IP44-rated wet-location fixture.

• Confirm AW0103-3CCT-W-BK is the required SKU
• Verify exterior junction box location and backplate footprint
• Check dimmer compatibility and load range for forward-phase triac dimming

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Dakota 24 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0103-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
