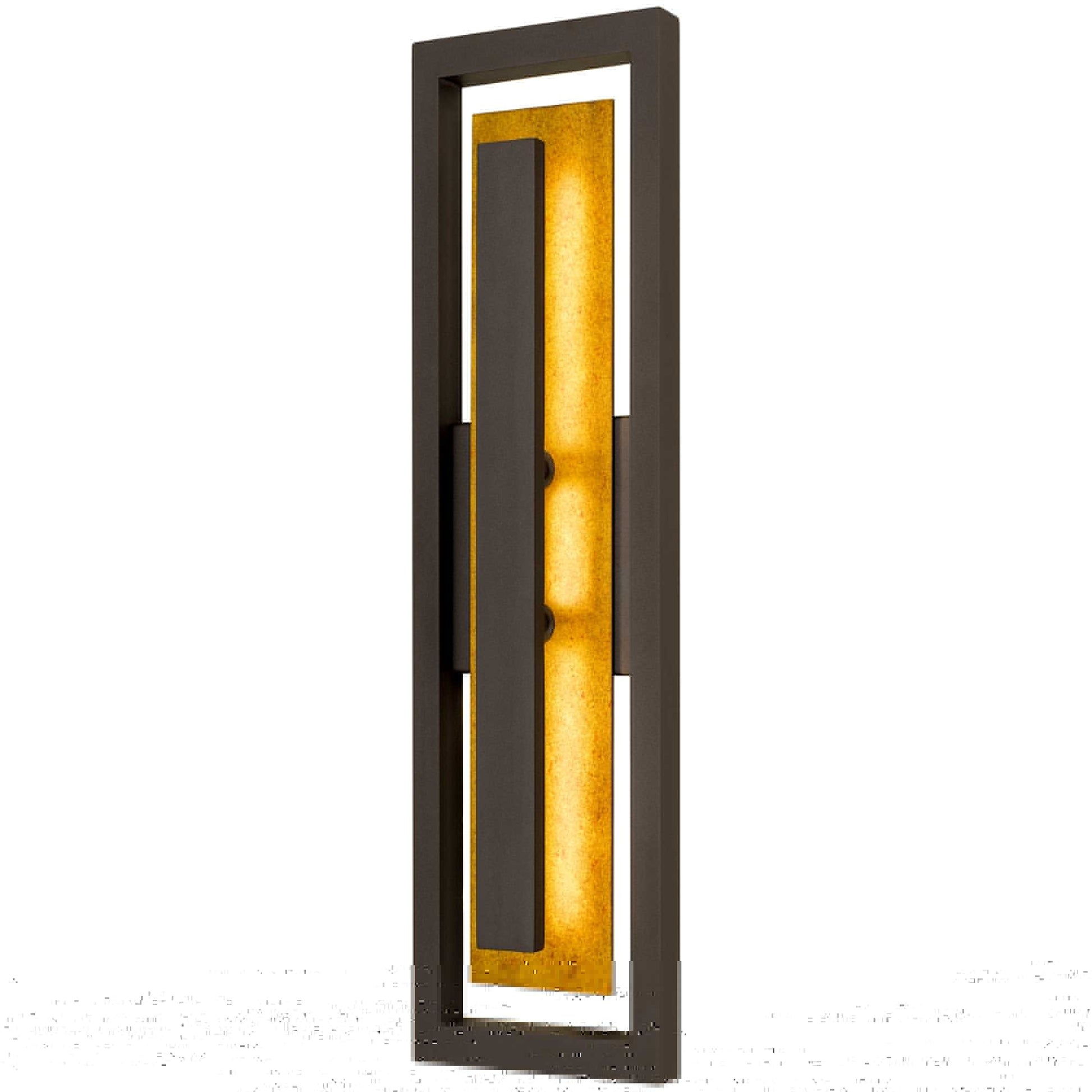

Alteck Panels 26.25 in. Bronze LED Outdoor Wall Sconce, Selectable CCT AW0100-3CCT-W-DB

Product Overview

The Alteck Panels AW0100-3CCT-W-DB is a 26.25-inch integrated LED outdoor wall sconce with an aluminum body and sand blast glass diffuser in a Dark Bronze finish.

It delivers 680 lumens from an 18 W LED module with field-selectable color temperatures (3000K, 4000K, 5000K). The fixture is IP44-rated and ETL listed.

Key Features

• 18 W integrated LED producing 680 lumens
• Field-selectable 3-CCT: 3000K, 4000K, 5000K
• Triac (forward-phase) dimmable
• IP44 rating and ETL listed
• ADA-compliant low profile with sand blast glass diffuser
• 54,000-hour rated LED life; 5-year LED warranty and 3-year finish warranty

Function and core performance

Produces 680 lumens from an 18 W integrated LED module with a nominal CRI of 80. Color temperature is selectable between 3000K, 4000K, and 5000K (3-CCT).

• Light output: 680 lumens
• LED wattage: 18 W
• CRI: 80
• Selectable CCT: 3000K / 4000K / 5000K

Recommended applications

Intended for exterior wall use such as entries, facades, walkways, and other wet-location exterior installations where a low-profile selectable-CCT sconce is desired.

• Exterior entry and facade lighting
• Walkways and perimeter illumination
• Residential and commercial exterior walls

Electrical requirements and dimming compatibility

Wired for 120–277V line-voltage operation. The fixture supports Triac (forward-phase) dimming; match a compatible forward-phase wall dimmer and verify the dimmer's load range with the fixture's 18 W rating.

• Operating voltage: 120–277V
• Dimming: Triac (forward-phase) compatible
• Verify dimmer compatibility and load range prior to installation

Dimensions, materials, and finish

Aluminum construction with a Dark Bronze finish and sand blast glass diffuser. The fixture is tall and narrow for a low-profile appearance on exterior walls.

• Overall height: 26.25 in
• Width: 6.75 in
• Backplate: 6.5 in L x 5.125 in W x 1.5 in E
• Material: Aluminum
• Diffuser: Sand blast glass
• Finish: Dark Bronze

Environmental ratings and warranty

IP44-rated for protection against splashing water and intended for wet-location exterior use. ETL listed. Integrated LED rated life is 54,000 hours. Warranties: 3-year finish and 5-year LED.

• IP Rating: IP44
• Location rating: Wet Location
• Safety listing: ETL Listed
• Rated life: 54,000 hours
• Finish warranty: 3 years
• LED warranty: 5 years

Before You Order

Verify the model number and intended mounting location. If you plan to use dimming, confirm the chosen forward-phase dimmer is compatible with an 18 W LED load.

• Confirm model: AW0100-3CCT-W-DB
• Verify mounting surface and wet-location suitability for IP44
• Check dimmer compatibility and load range for Triac (forward-phase) dimming

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Panels 26.25 in. Bronze LED Outdoor Wall Sconce, Selectable CCT AW0100-3CCT-W-DB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
