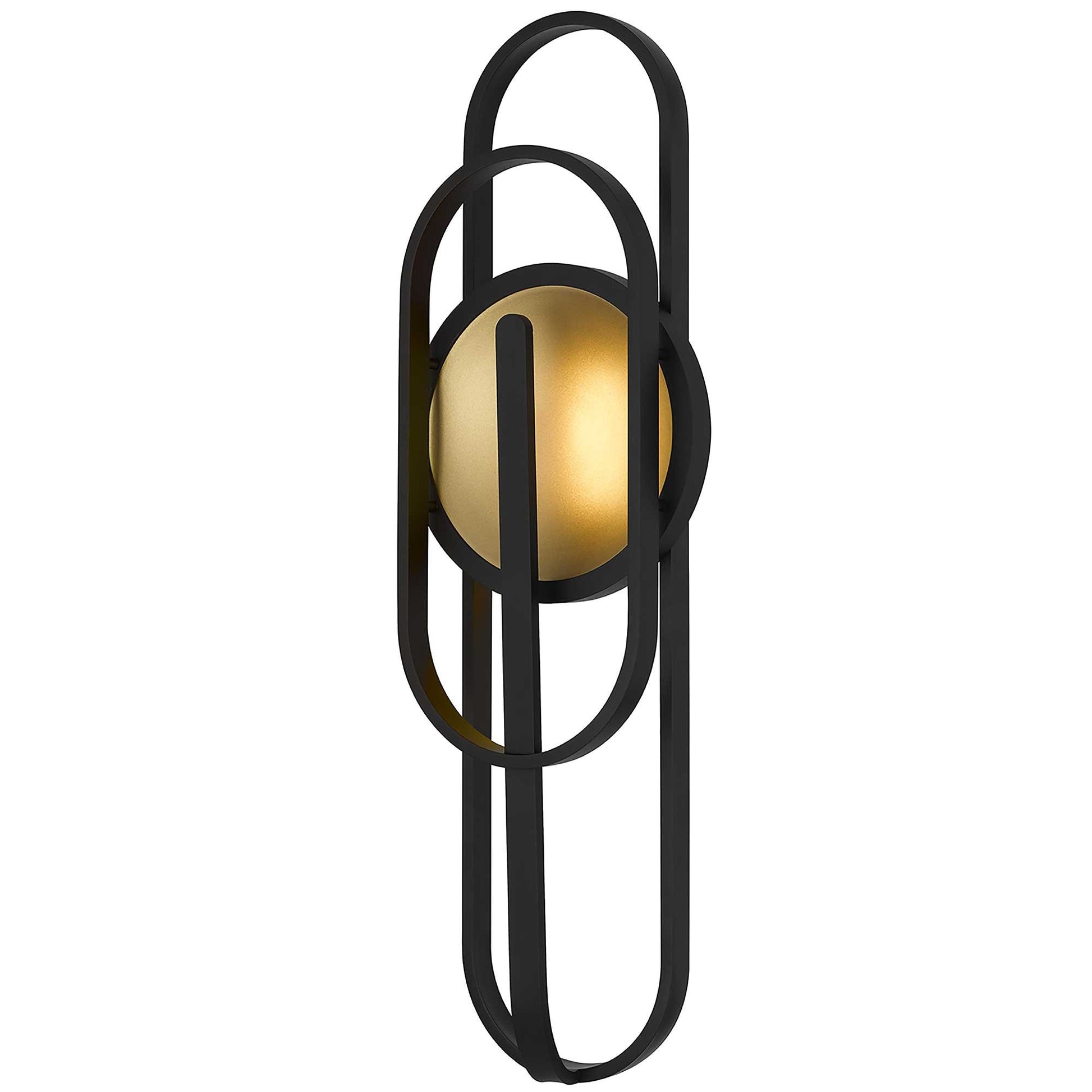

Alteck Raymond 30 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0092-3CCT-W-BK

Product Overview

The Alteck Raymond AW0092-3CCT-W-BK is a 30-inch aluminum outdoor wall sconce with an integrated 10 W LED producing 208 lumens and a field-selectable color temperature (3000K, 4000K, or 5000K).

The fixture has a Sand Black finish, sand blast glass diffuser, IP44 rating for protection against splashing water, ETL listing, and compatibility with triac (forward-phase) dimmers.

Key Features

• Integrated 10 W LED — 208 lumens, 80 CRI, rated life 54,000 hours
• Field-selectable CCT — 3000K, 4000K, or 5000K (3-CCT)
• Triac (forward-phase) dimmable (use compatible dimmers)
• IP44 rating for protection against splashing water; suitable for wet-location installation per product rating
• ADA-compliant low-profile design with sand blast glass diffuser
• Aluminum construction with Sand Black finish; 3-year finish warranty and 5-year LED warranty

What this fixture does

The Alteck Raymond AW0092-3CCT-W-BK provides low-profile exterior illumination for entries, facades, walkways, and building perimeters. Its integrated LED and sand blast glass diffuser produce an even, diffuse wash of light suitable for residential and commercial exteriors.

• Intended for wall-mount installation on exterior surfaces
• Typical uses: exterior entry and facade wall lighting, walkways, and replacing older exterior sconces

Light performance and color temperature

This sconce produces 208 lumens from a 10 W integrated LED with an 80 CRI and a rated life of 54,000 hours. Color temperature is field-selectable to 3000K, 4000K, or 5000K.

• Lumens: 208 lm
• Wattage: 10 W (integrated LED)
• CRI: 80
• Selectable CCT: 3000K / 4000K / 5000K
• Rated life: 54,000 hours

Electrical requirements and dimming

The fixture is wired for 120V line-voltage operation and supports triac (forward-phase) dimming. Verify dimmer compatibility and the dimmer's load range for a 10 W LED fixture before installation.

• Voltage: 120V
• Dimming: Triac (forward-phase) — confirm compatibility with the chosen dimmer

Mounting, materials, and dimensions

The Raymond sconce mounts to a standard exterior junction box. It has an aluminum body with a Sand Black finish and a sand blast glass diffuser. The fixture is ADA-compliant per the product listing.

• Mounting type: Wall mount (standard exterior junction box)
• Material: Aluminum with Sand Black finish
• Diffuser: Sand Blast Glass
• Overall width: 9.5 in
• Overall height: 30 in
• Backplate: 6.75 in L x 6.125 in W x 1.625 in E

Environmental suitability and certifications

The fixture has an IP44 rating (protection against splashing water) and is rated for wet locations per the product listing. It is ETL listed and noted as ADA compliant. Warranties include a 3-year finish warranty and a 5-year LED warranty.

• Location rating: Wet Location
• IP rating: IP44
• Safety listing: ETL Listed
• ADA compliant: Yes
• Finish warranty: 3 years; LED warranty: 5 years
• Country of origin: China

Before You Order

Verify the mounting location supports an IP44 wet-location fixture and that site wiring and junction box are suitable for a 120V line-voltage installation.

• Check dimmer compatibility: use a compatible triac (forward-phase) dimmer and confirm the dimmer's load range for a 10 W LED fixture.
• Unit is field-selectable for CCT (3000K/4000K/5000K).

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Raymond 30 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0092-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
