Alteck Tig 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0088-3CCT-W-BK

Product Overview

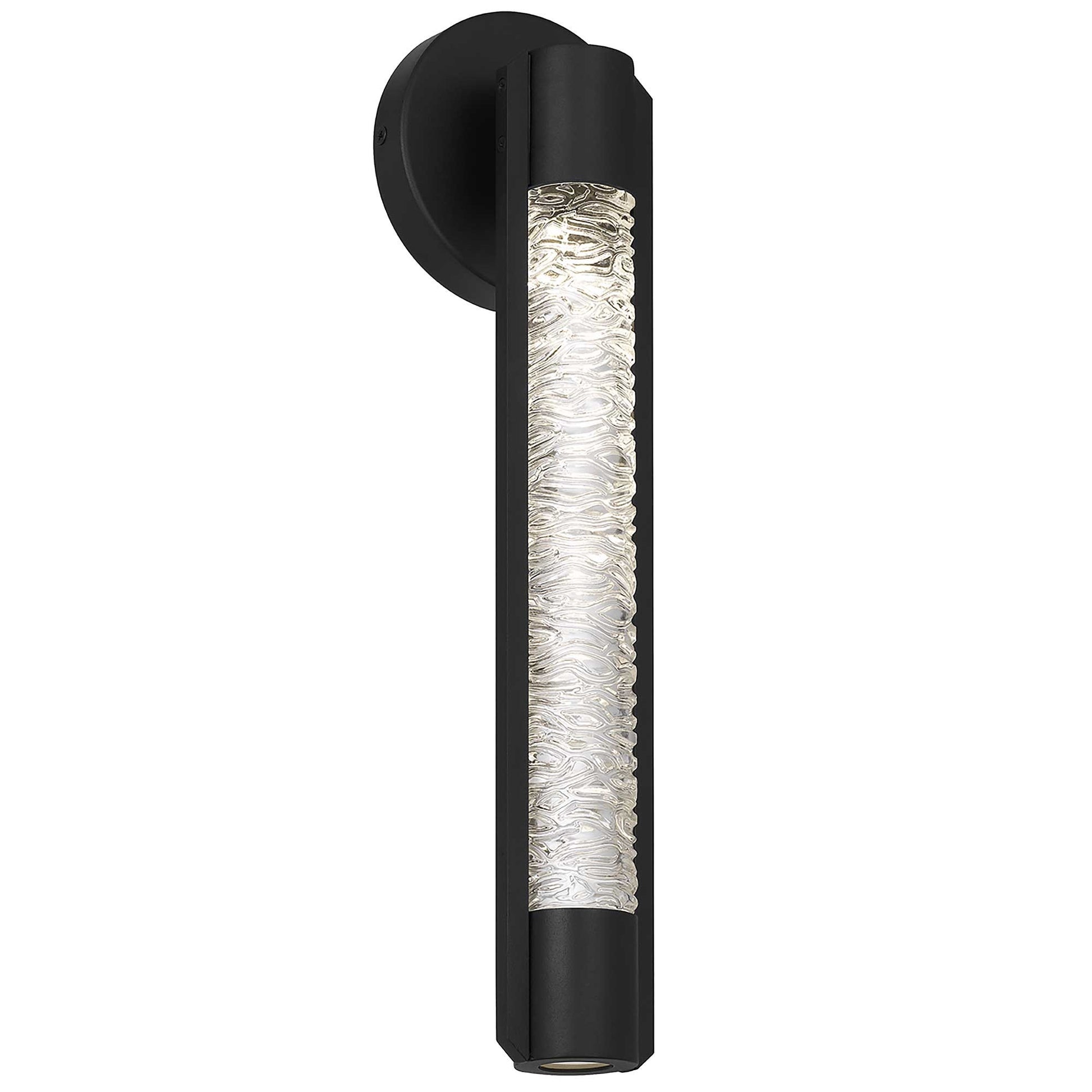

The Alteck Tig AW0088-3CCT-W-BK is an 18-inch aluminum outdoor wall sconce in a Sand Black finish with a clear glass diffuser. It delivers 260 lumens from a 5 W integrated LED and offers field-selectable color temperatures: 3000K, 4000K, or 5000K.

The fixture is IP44-rated for wet locations, ETL listed, ADA-compliant, triac-dimmable, and includes a 3-year finish warranty and a 5-year LED warranty.

Key Features

• Field-selectable 3-CCT: 3000K, 4000K, 5000K
• Integrated 5 W LED — 260 lumens, rated 54,000 hours
• Triac (forward-phase) dimmable
• IP44 wet-location rating and ETL listed
• Aluminum body with Sand Black finish and clear glass diffuser
• ADA-compliant low-profile design
• 3-year finish warranty and 5-year LED warranty

What this fixture does

The Alteck Tig AW0088-3CCT-W-BK provides diffuse exterior illumination through a clear glass diffuser and is intended for use on exterior walls, entries, and walkways.

Performance and output

The integrated 5 W LED produces 260 lumens and offers three field-selectable color temperatures: 3000K, 4000K, or 5000K. The fixture is rated CRI 80 and the LED lifetime is listed as 54,000 hours.

• Lumen output: 260 lm
• LED wattage: 5 W
• Selectable CCT: 3000K / 4000K / 5000K
• CRI: 80
• Rated life: 54,000 hours

Compatibility and installation notes

The AW0088 is wired for 120V line-voltage operation and is triac (forward-phase) dimmable. Verify dimmer compatibility with low-wattage LED loads and confirm the mounting location meets local code and the fixture's IP44 wet-location rating.

• Voltage: 120V
• Dimming: Triac (forward-phase) — use a dimmer rated for low-wattage LED loads
• Mounting: Wall mount to a standard exterior junction box
• Location: IP44 wet-location rated

Dimensions and materials

Compact, low-profile aluminum construction with a Sand Black finish and clear glass diffuser. Dimensions and backplate size are provided for planning and specification.

• Height: 18 in
• Width: 5 in
• Backplate: 5 D x 1 E
• Material: Aluminum
• Finish: Sand Black
• Diffuser: Clear Glass

Certifications and warranty

The fixture is ETL listed and carries manufacturer warranties for finish and LED components.

• Safety listing: ETL Listed
• IP Rating: IP44
• ADA Compliant: Yes
• Finish warranty: 3 years
• LED warranty: 5 years
• Country of origin: China

Before You Order

Verify the model number, mounting location, and that your selected dimmer is compatible with low-wattage triac-dimmable LEDs.

• Confirm model: AW0088-3CCT-W-BK
• Verify mounting surface and junction box compatibility
• Check dimmer compatibility and load range for a 5 W LED
• Set desired CCT (3000K/4000K/5000K) before or after installation per product instructions

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alteck Tig 18 in. Black LED Outdoor Wall Sconce, Selectable CCT AW0088-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
