Alteck Panel Round 10.25 in. Black LED Outdoor Flush Mount, Selectable CCT AFM0022-3CCT-W-BK
Description
Product Overview

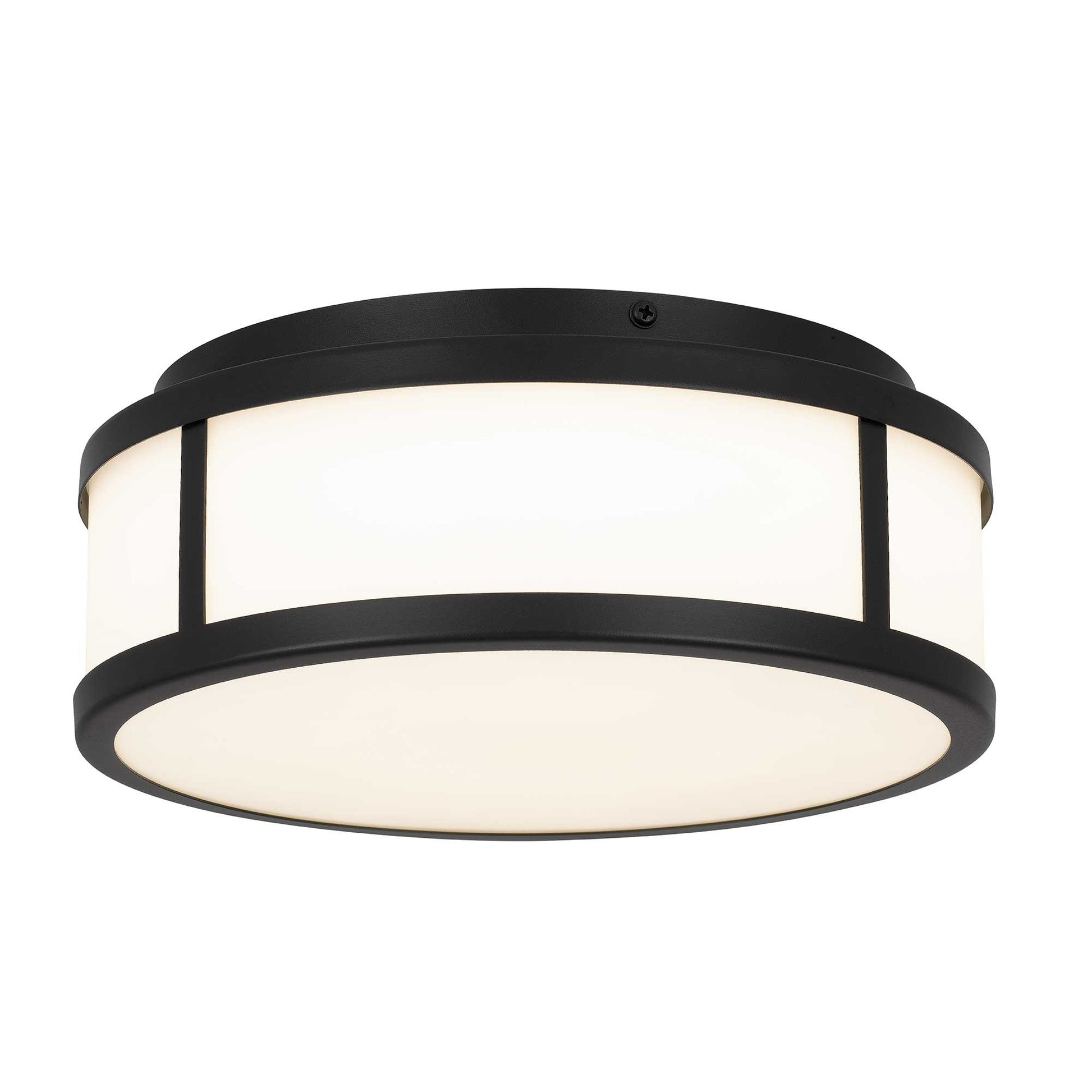

The Alteck Panel Round AFM0022-3CCT-W-BK is a 10.25-inch round LED flush mount for outdoor ceiling applications. Its integrated 24W LED produces 1100 lumens, with a selectable color temperature of 3000K, 4000K or 5000K.
A Sand Black finish, 430 stainless steel body and etched white glass diffuser define the fixture’s appearance. It is rated for wet locations, carries an IP44 rating and is ETL Listed.
Key Features
- Selectable 3000K, 4000K or 5000K color temperature
- Integrated 24W LED produces 1100 lumens at 80 CRI
- Triac forward-phase dimming
- Wet-location rated with IP44 protection
- Surface/flush ceiling mounting configuration
- 50,000-hour rated LED life; 5-year LED warranty and 3-year finish warranty
Selectable Color Temperature and LED Output
The AFM0022-3CCT-W-BK provides 1100 lumens from an integrated 24W LED. Its selectable 3-CCT setting offers 3000K, 4000K or 5000K color temperature, and the fixture is rated at 80 CRI.
Outdoor Ceiling Use and Ratings
This Alteck flush mount is intended for outdoor ceiling use, including covered porches, entries, soffits and exterior passage ceilings. It is listed for wet locations and has an IP44 rating.
Flush-Mount Design and Materials
The round fixture mounts to a ceiling in a surface/flush configuration. Its Sand Black 430 stainless steel body is paired with an etched white glass diffuser.
- Diameter: 10.25 inches
- Height: 4 inches
- ADA compliant
Triac Dimming
The integrated LED supports Triac forward-phase dimming. Use a compatible forward-phase dimmer and check that its load range is suitable for the fixture.
Before You Order
If you plan to dim the fixture, confirm that your control is a compatible Triac (forward-phase) dimmer.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Alteck Panel Round 10.25 in. Black LED Outdoor Flush Mount, Selectable CCT AFM0022-3CCT-W-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Alteck |
|---|---|
| Category | Panel Round |
| Model / SKU | AFM0022-3CCT-W-BK |
| Product Type | Outdoor LED flush mount |
| LED Wattage | 24 W |
| Lumens | 1100 lumens |
| Color Temperature | Selectable 3000K, 4000K or 5000K |
| CRI | 80 |
| Voltage | 120V |
| Dimming | Triac (forward phase) |
| Mounting Type | Surface / flush ceiling mount |
| Dimensions | 10.25 in. diameter × 4 in. height |
| Housing Material | 430 stainless steel |
| Finish | Sand Black |
| Shade / Diffuser | Etched white glass |
| Location Rating | Wet location |
| IP Rating | IP44 |
| Rated Life | 50,000 hours |
| Certifications | ETL Listed |
| ADA | Compliant |
| Warranty | 3 years on finish; 5 years on LED |
