Alora Akoya Pendant PD321730

Product Overview

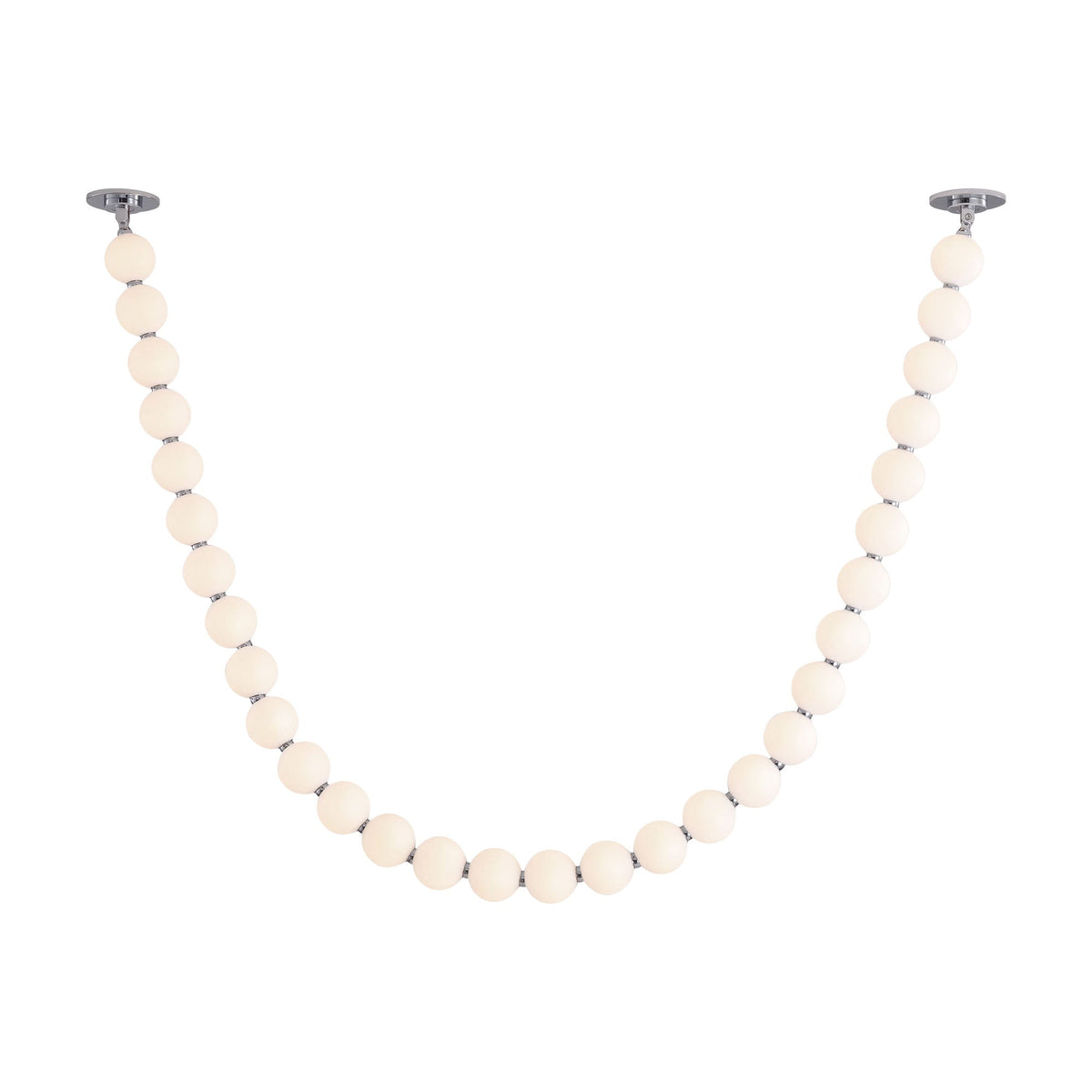

The Alora Akoya PD321730CH-UNV-010-RT is a chrome-finish integrated LED linear pendant with a 104-inch primary length, a 49W LED module rated at 3430 lumens (3000K) and 90 CRI.

This model is rated for dry interior locations, accepts 120–277V input, and the RT variant includes a remote driver. Dimming is supported via 0–10V; TRIAC/ELV dimming is also listed as supported when paired with a compatible wall dimmer.

Key Features

• Integrated LED — 49W producing 3430 lm (3000K) with 90 CRI
• Universal input voltage: 120–277V
• 0–10V dimmable (100–10%); TRIAC/ELV dimming is listed as supported with a compatible wall dimmer
• ETL certified for dry locations
• Fixture: L104" x W3-1/4" x H3-1/4"; Canopy: D9-7/8" x H1-5/8"
• RT configuration includes a remote driver

What this pendant does

The Alora Akoya PD321730CH-UNV-010-RT is an integrated-LED linear pendant intended to provide ambient illumination in dry interior spaces. Its 104-inch length is intended for run-style lighting over islands, counters, or long tables.

• Integrated LED module—no separate bulbs required.
• Omni-directional illumination as listed in product data.

Light output and color quality

This model is specified to produce 3430 lumens from a 49W LED module at 3000K with a 90 CRI. The product data also lists delivered lumens as 1705 lm.

• Total lumens (rated): 3430 lm
• Delivered lumens: 1705 lm
• Color temperature: 3000K
• Color rendering index: 90

Electrical requirements and dimming

The fixture accepts 120–277V input. The RT variant includes a remote driver. Dimming methods listed in the product data include 0–10V control to 10% and TRIAC/ELV compatibility; a compatible dimmer is not included.

• Input voltage: 120–277V
• Dimming: 0–10V (to 10%); TRIAC/ELV also listed as supported
• RT configuration denotes remote driver included for that SKU
• Dimmer and wall control devices are sold separately

Dimensions and mounting

The pendant has a long, narrow profile and includes a canopy for ceiling mounting. Product data indicates it is adaptable to sloped ceilings up to 45 degrees.

• Primary length: 104 in
• Fixture dimensions: L104 x W3-1/4" x H3-1/4"
• Canopy dimensions: D9-7/8" x H1-5/8"
• Sloped ceiling adaptable to 45°

Recommended applications

The fixture is intended for dry interior settings. Product data lists common uses such as kitchen-island or counter lighting, entry and hallway accent lighting, and bedside or reading-nook illumination.

• Suitable for living room, dining room, kitchen island, entryway, and bedroom use where a dry-location rated pendant is appropriate
• Not rated for wet or exterior locations

Before You Order

Confirm the SKU and configuration you need (RT indicates the remote-driver variant). Verify the installation location is a dry interior space.

• Order PD321730CH-UNV-010-RT for the remote-driver configuration
• Provide a compatible dimmer (0–10V or TRIAC/ELV) rated for the fixture load if dimming will be used

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Alora Akoya Pendant PD321730. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
