Abra Lighting Electron 20" Mitered Glass Outdoor Wall Sconce - 20W, 3000K
Abra Lighting Electron 20" Mitered Glass Outdoor Wall Sconce - 20W, 3000K
SKU:50149ODW-MB
Couldn't load pickup availability
Abra Lighting Electron 20" Mitered Glass Outdoor Wall Sconce – 50149ODW
The Abra Lighting Electron 50149ODW is a 20-inch outdoor LED wall sconce designed for contemporary exterior walls, entrances, patios, and building façades. Its integrated LED system, wet-location rating, and mitered glass diffuser provide dependable illumination with a clean architectural appearance.
Key Strengths
- Integrated LED: Uses a 20-watt solid-state LED module that delivers 1,700 lumens.
- Warm White Light: Produces 3000K illumination with a 90+ CRI.
- Wet-Location Rated: Designed for installation on exposed exterior walls.
- Mitered Glass Diffuser: Softens the light while supporting the fixture’s modern profile.
- Dimmable Operation: Compatible with verified C•L and ELV dimming controls.
- ADA-Compliant Projection: Extends approximately 3.5 inches from the wall.
Product Overview & Key Applications

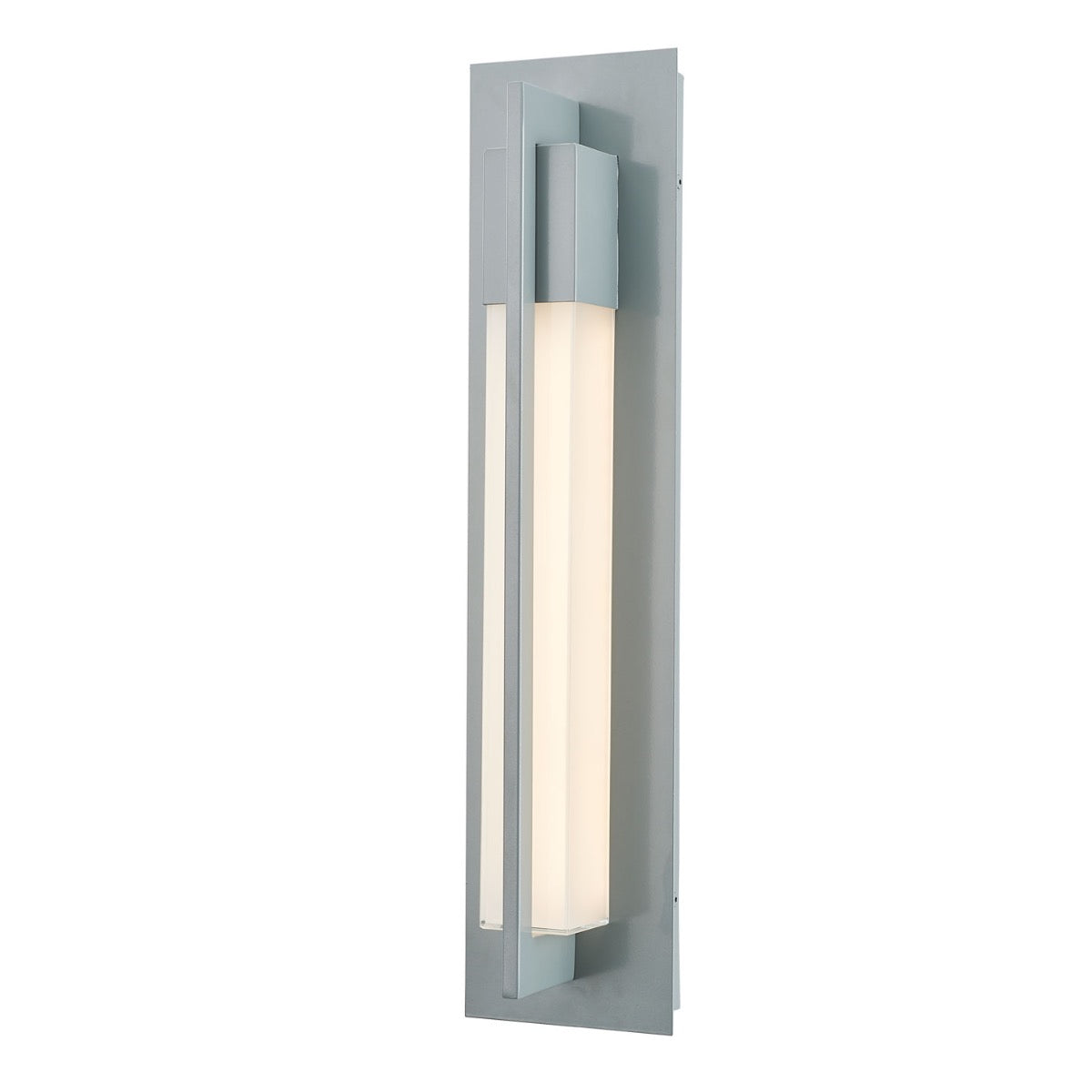

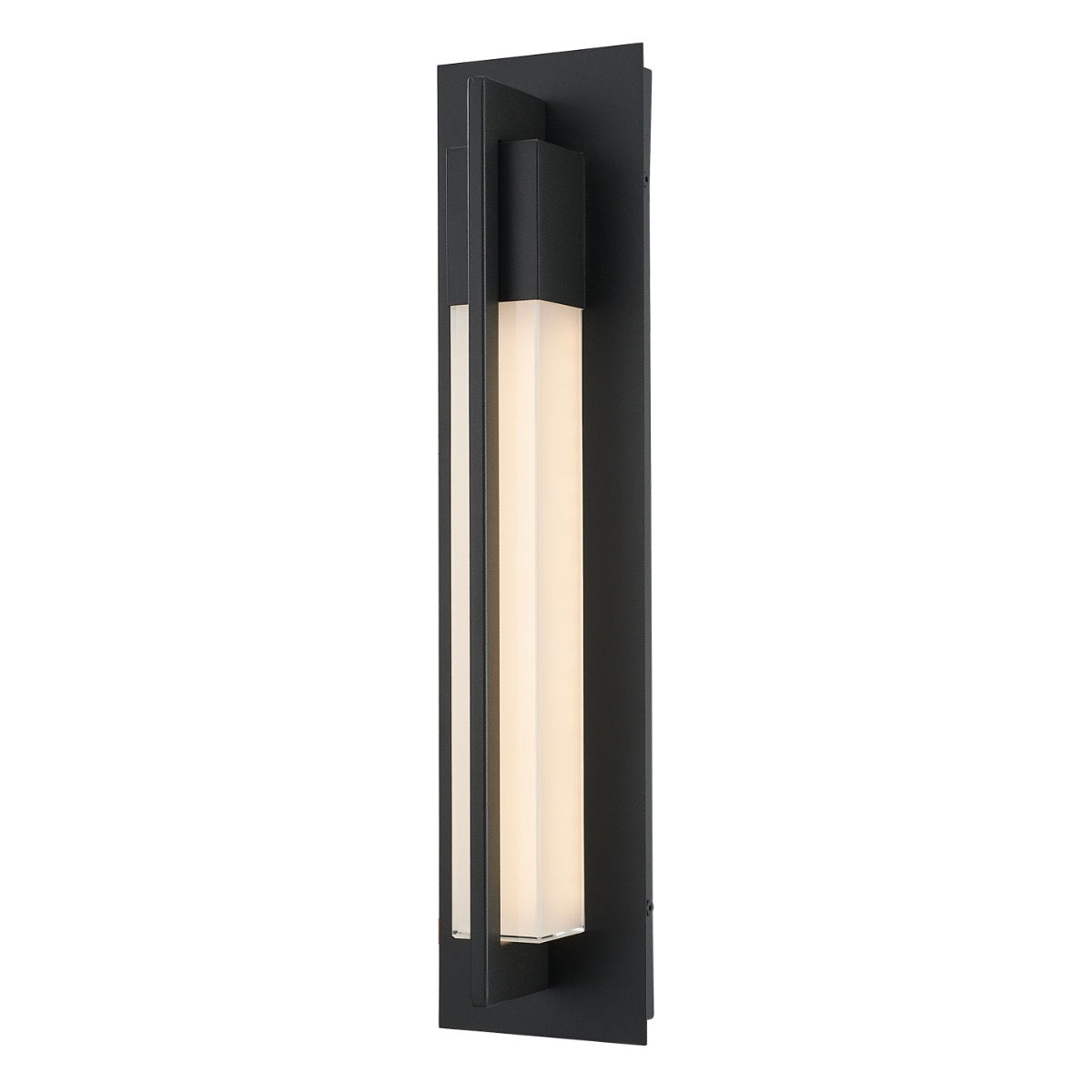

The Abra Electron 50149ODW combines a slim metal frame with a white mitered glass diffuser to create a streamlined outdoor wall fixture. Measuring 20 inches high and 4.75 inches wide, it provides substantial vertical presence while maintaining a shallow 3.5-inch extension from the mounting surface. The fixture is available in Matte Black and Silica finishes, allowing it to coordinate with a range of modern residential and commercial exteriors.
Its integrated 20-watt LED light source produces 1,700 lumens at a warm 3000K color temperature. A 90+ CRI helps exterior finishes, architectural details, and entry areas appear natural and well defined. Driver-less LED technology reduces the number of separate electrical components within the fixture, while the documented 50,000-hour LED life supports long-term use.
The Electron sconce is rated for wet locations and carries a cETLus listing. It can be installed with the illuminated glass section oriented upward or downward, providing flexibility for exterior entrances, patios, walkways, office façades, and hospitality properties.
Ideal For
- Residential entrances and exterior walls
- Covered or exposed patios and porches
- Contemporary office and commercial façades
- Hospitality and multifamily exterior areas
- Outdoor walkways and architectural wall lighting
Key Performance Benefits
Efficient exterior illumination: The integrated 20-watt LED system delivers 1,700 lumens, providing useful wall and entry lighting without requiring replaceable lamps.
Consistent warm-white appearance: The 3000K color temperature creates a warm architectural light, while the 90+ CRI supports accurate color rendering around doors, wall finishes, and exterior details.
Outdoor durability: The fixture’s wet-location rating confirms its suitability for exterior applications where it may be exposed to rain or moisture.
Flexible light control: Verified compatibility with C•L and ELV dimmers allows the light level to be adjusted when paired with an appropriate control.
Low-profile wall projection: The 3.5-inch extension supports ADA-compliant wall installation while maintaining a clean architectural silhouette.
Technical Specifications
| Brand | Abra Lighting |
|---|---|
| Collection | Electron |
| Model Number | 50149ODW |
| Product Type | Outdoor LED Wall Sconce |
| Input Voltage | 120V |
| Power Consumption | 20W |
| Lumens | 1,700 lm |
| Color Temperature (CCT) | 3000K |
| Dimensions | 20" H x 4.75" W x 3.5" Ext. |
| Housing Material | Metal |
| Diffuser | White glass |
| Available Finishes | Matte Black and Silica |
| Light Source | Integrated solid-state LED module |
| CRI | 90+ |
| Dimming | C•L and ELV compatible |
| Rated LED Life | 50,000 hours |
| Mounting Type | Wall mount only |
| Location Rating | Wet location |
| ADA Compliant | Yes |
| Certification | cETLus |
| Matte Black SKU | 50149ODW-MB |
| Silica SKU | 50149ODW-SL |
Installation & Wiring Guide
The Abra Electron 50149ODW is designed for wall-mounted installation. Before beginning installation, disconnect power at the electrical breaker. Installation should be completed by a licensed electrician or another qualified person familiar with the fixture, applicable electrical codes, and the construction of the mounting surface. Follow the manufacturer’s supplied assembly and installation instructions.
Mounting Options
This fixture is intended for wall mounting only. The mitered glass section may be oriented upward or downward where permitted by the manufacturer’s installation instructions. Verify that the wall surface and electrical box are suitable for the fixture before installation.
Wiring & Safety Instructions
Shut off power at the breaker before handling wiring or mounting components. Do not energize the fixture until installation is complete and all connections have been inspected. Wiring and grounding must comply with the manufacturer’s instructions and all applicable local and national electrical codes. Use a qualified electrician for installation, dimmer selection, and final testing.
Certifications, Standards & DLC Listing
The Abra Electron 50149ODW is cETLus listed for wet-location use and is identified as ADA compliant based on its documented wall projection.
Compatible Accessories & Dimmers
The fixture is documented as compatible with C•L and ELV dimmers. Select a dimmer rated for the fixture’s integrated LED load and 120V operation.
