Abra Lighting
Abra Lighting Ingot 3CCT Solid Alabaster Outdoor Wall Sconce - 20W, 3CCT
Abra Lighting Ingot 3CCT Solid Alabaster Outdoor Wall Sconce - 20W, 3CCT
SKU:50131ODW-MB
Couldn't load pickup availability

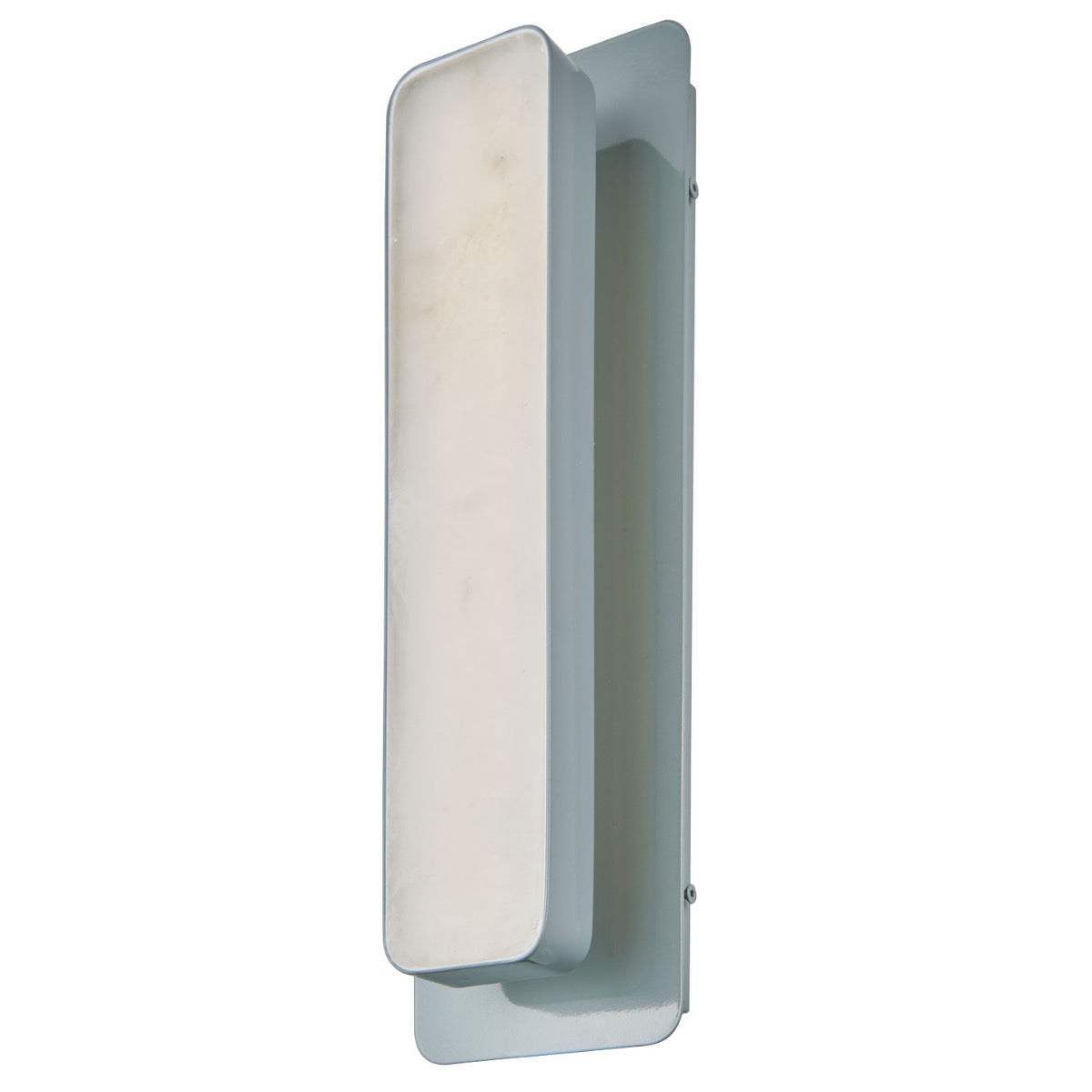

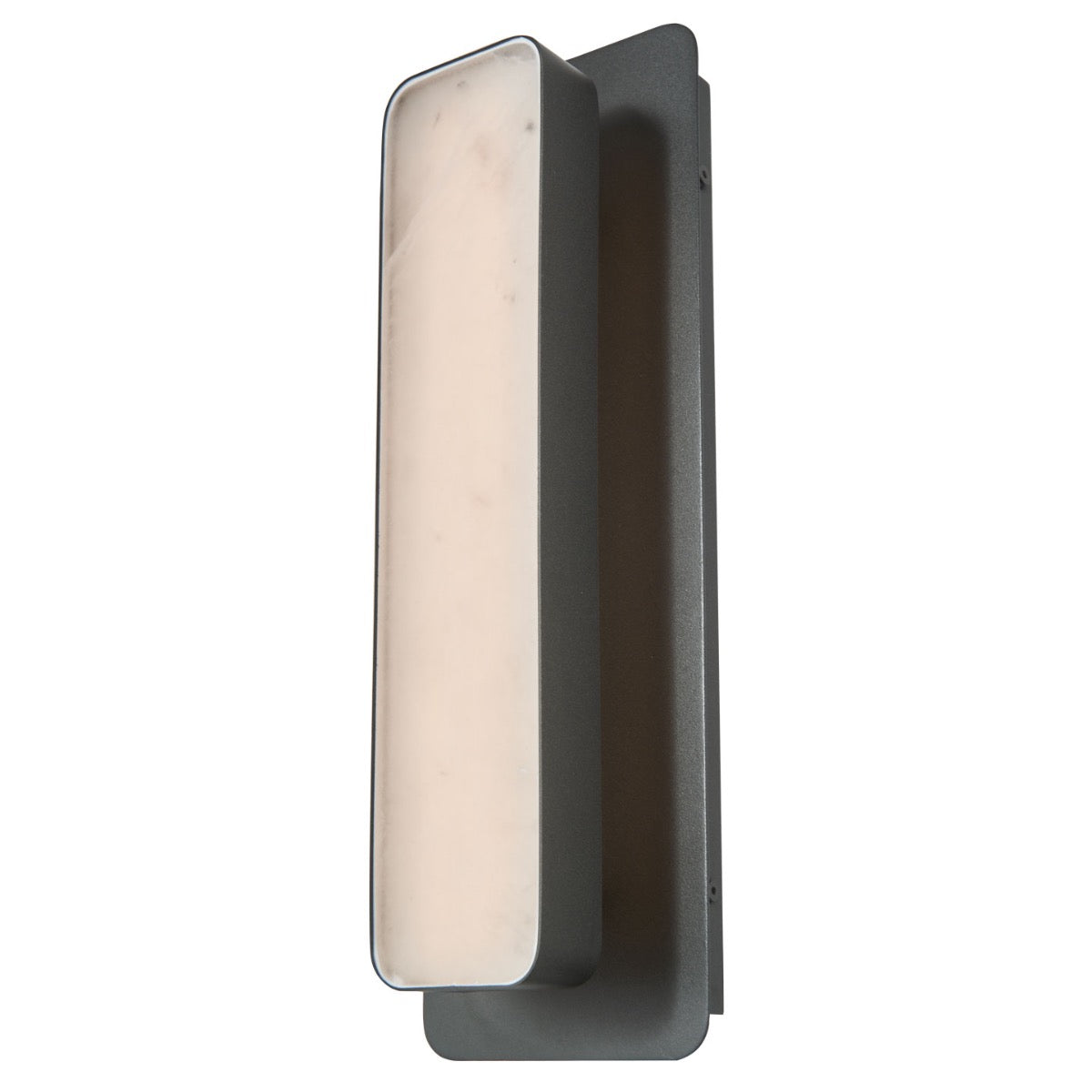

Abra 50131ODW Ingot 3CCT Solid Alabaster Outdoor Wall Sconce
The Abra 50131ODW Ingot is a contemporary outdoor LED wall sconce featuring genuine alabaster stone, selectable color temperature, and a slim ADA-compliant profile for residential and commercial exterior walls.
- Natural Alabaster Diffuser: Creates a softly illuminated surface with unique variations in color and veining.
- Selectable 3CCT Lighting: Choose from 2700K, 3350K, or 4000K during installation.
- Integrated LED: Delivers 1190 lumens while consuming 20 watts.
- Wet-Location Listed: Designed for outdoor areas exposed to rain and moisture.
- ADA-Compliant Profile: Extends only 3 inches from the mounting surface.
- Dimmable Operation: Compatible with TRIAC, CL, and ELV dimming controls.
Product Overview & Key Applications
The Abra Lighting 50131ODW belongs to the Ingot collection, a modern series that combines clean architectural geometry with the natural character of solid alabaster. Its tall rectangular form provides a refined decorative accent while the illuminated stone surface produces comfortable, diffused light.
Because alabaster is a natural material, each fixture may display its own pattern, tone, and veining. These variations give every sconce an individual appearance rather than the uniform look of a molded synthetic diffuser.
The fixture contains a 20-watt integrated LED module producing 1190 lumens with a color rendering index above 90. A selectable color-temperature system allows the installer to choose 2700K for a warm appearance, 3350K for balanced illumination, or 4000K for a cleaner neutral-white effect. The wet-location listing supports installation on exterior walls where the fixture may be exposed to weather.
Ideal For
- Residential entryways and exterior doors
- Covered or uncovered patios
- Outdoor corridors and walkways
- Hospitality and multifamily properties
- Contemporary commercial building exteriors
- Locations requiring an ADA-compliant wall-mounted fixture
Key Performance Benefits
The integrated LED system provides a rated output of 1190 lumens from 20 watts of power. Its 90+ CRI supports more natural and accurate color appearance around entrances, architectural materials, and outdoor gathering areas.
Selectable CCT technology makes the fixture adaptable to different environments without requiring a different LED module. The 3-inch extension maintains a low-profile appearance and supports ADA-compliant installation where applicable. Compatibility with TRIAC, CL, and ELV dimming controls also allows the light level to be adjusted when paired with a suitable dimmer and electrical installation.
Technical Specifications
| Brand | Abra Lighting |
|---|---|
| Collection | Ingot |
| Model Number | 50131ODW |
| Product Type | Outdoor LED wall sconce |
| Input Voltage | 120V |
| Power Consumption | 20W |
| Lumens | 1190 lumens |
| Color Temperature (CCT) | 2700K / 3350K / 4000K selectable |
| Dimensions | 5 in. W × 15.5 in. H × 3 in. extension |
| Housing Material | Metal and solid alabaster stone |
| Light Source | Integrated LED module |
| CRI | 90+ |
| Dimming | TRIAC, CL, and ELV dimmable |
| Location Rating | Wet location |
| ADA Compliant | Yes |
| Certifications | cETLus listed |
| Warranty | 1 year on finish and material; 5 years on LED components from date of shipment |

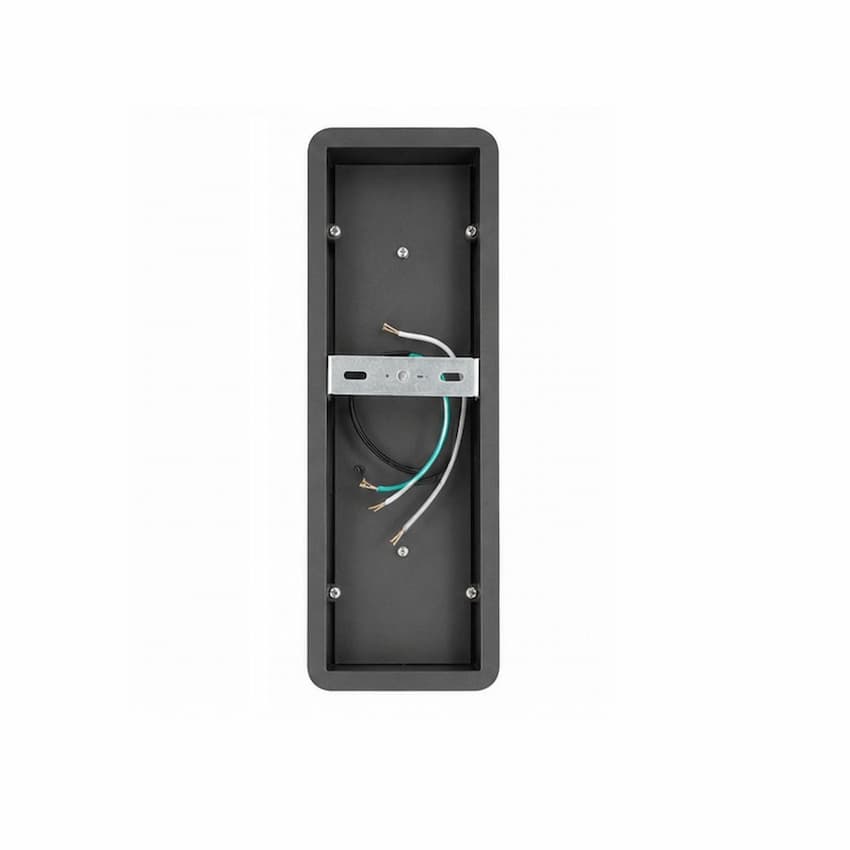

Installation & Wiring Guide
The Abra 50131ODW is designed for wall-mounted installation using the manufacturer-provided mounting components and instructions. The desired 2700K, 3350K, or 4000K color temperature should be selected during installation according to the project’s lighting requirements.
Installation should be completed by a qualified electrician with the branch circuit disconnected. Follow the current manufacturer instructions and all applicable national and local electrical codes.
Mounting Options
This fixture is intended for mounting on a suitable vertical wall surface. Its 3-inch extension creates a slim architectural profile appropriate for exterior entrances, corridors, patios, and similar wall-lighting applications. Installation must follow the manufacturer’s mounting instructions.
Wiring & Safety Instructions
Use the fixture only with a compatible 120-volt electrical supply. Do not energize the circuit until installation is complete and the fixture has been securely mounted. Electrical connections, grounding, sealing, and weather protection should comply with the manufacturer’s instructions and applicable electrical codes.
Because the diffuser is made from natural alabaster, handle the fixture carefully during unpacking and installation. Do not use unverified cleaning chemicals or abrasive materials on the stone surface.
Certifications, Standards & DLC Listing
The Abra 50131ODW is identified as cETLus listed, wet-location rated, and ADA compliant. Its wet-location classification supports installation in outdoor areas subject to direct moisture when installed according to the manufacturer’s requirements.
Compatible Accessories & Dimmers
The integrated LED system is documented as compatible with TRIAC, CL, and ELV dimming methods. Confirm that the selected dimmer supports the fixture’s LED load and electrical configuration before installation.
