What Kills a Well Light Is Water Sitting Around It
These fixtures fail more often than anything else in a landscape
system, and the cause is almost never the fixture rating. A well light
is a sealed object placed in a hole in the ground, and if that hole
holds water for months at a time, the fixture will eventually lose the
argument regardless of what it is rated to. Getting the drainage right
at install matters more than paying up for a higher ingress rating. The
rest of the system these sit inside is covered in Lumera's landscape lighting collection.
Build the Hole Before You Buy the Fixture
The install detail that separates a system lasting fifteen years from one replaced every three is what sits under the fixture.
Set the fixture in a sleeve, typically a section of pipe, with a bed
of coarse gravel beneath it so water arriving in the hole has somewhere
to go. Choose a position that is not the low point of the bed, because
irrigation and roof runoff will find that spot every time. Where the
soil is heavy clay and drains slowly, the gravel bed has to be deeper
rather than the fixture set higher.
The sleeve has a second benefit people discover later. It lets the
fixture be lifted out for service or replacement without excavating,
which on a mature planting bed is the difference between a ten minute
job and a destructive one.
Ingress Rating, and What It Does Not Promise
Well lights carry high ingress ratings because they are expected to
be wet, and the IP67 class called out on this range describes resistance
to temporary immersion. That is a meaningful specification and it is
not a guarantee against a fixture sitting in standing water through an
entire wet season.
Seals age, thermal cycling draws moisture past gaskets over years,
and lens gaskets compress permanently once they have been opened and
reseated a few times. Treat the rating as protection against the water
that reaches the fixture despite good drainage, not as a substitute for
the drainage.
Body Material and What Survives Buried
Across the well light market, material matters more than in any other
landscape fixture, because the body sits in permanent contact with
soil, fertilizer, and irrigation water. Brass develops a patina rather
than corroding through, stainless resists corrosion strongly with the
caveat that lower grades can pit in chloride-rich coastal soil, and
composite bodies do not corrode at all, which suits fully buried
residential work.
The construction to be cautious about is a plated finish over a base
metal, since buried and irrigated, plating eventually breaks down at an
edge or a screw hole and corrosion then runs underneath it. The black,
oil rubbed bronze, and brushed nickel finishes across this range sit
over different housings, so read the material line on the product page
wherever the soil or the coastline is aggressive. The stakes, sleeves,
and waterproof connectors that go around the fixture sit in Lumera's landscape lighting accessories collection.
Fixed White or App-Controlled Color
Two output families sit side by side here. The fixed models run 3000K
warm white, from the 3W IGLA at 320 lumens through 5W and 6W bodies to
the 7W IGLA at 720 lumens, which covers most tree and facade work where
the color never changes.
The RGBW versions of the WLL series take their color from a phone app
over a wireless connection instead, which suits hospitality patios,
seasonal display, and any garden the owner wants to reshade without
touching the fixtures. The practical caution is consistency: mixing
fixed and app-controlled fixtures on the same feature makes the fixed
ones the odd units out the first time the scene changes, so group by
control type per feature.
Beam and Distance Change the Subject Entirely
Two fixtures with identical output produce completely different
results depending on how tightly the beam is gathered, and distance from
the subject changes the answer. Set close to a trunk, even a broad beam
reads as a narrow wash going straight up. Set back, a tight beam is
needed to reach the canopy at all.
Decide the aiming distance first, then pick the optic, and check the
beam information on the specific product page rather than assuming two
same-wattage fixtures will paint the same tree the same way.
Glare Control: Flat, Louvered, and Shielded Tops
An uplight aimed at a tree is also aimed at anyone standing beyond
it, and that is what makes glare the most common complaint about well
lights in a finished garden. This range carries all three answers,
visible in the MW line's flat, louver, and shield versions of the same
6W fixture.

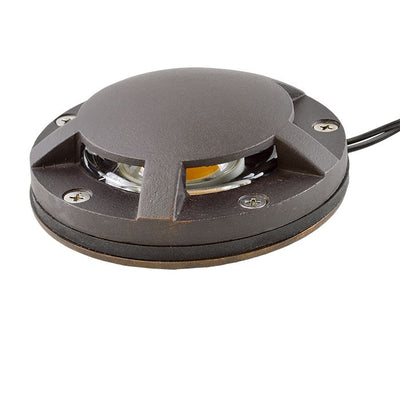

A flat top ring is the plainest option and offers the least control. A
louvered top breaks up the direct view into the source, cutting glare
noticeably at the cost of some output. A shielded top goes further by
blocking the view from one side entirely, which is the answer when a
fixture sits beside a path, a patio, or a sightline from a window. Where
the fixture can sit far from foot traffic a shield may not be needed;
where it cannot, order the shielded version with the fixture rather than
after the complaint.
Aiming and Adjustment
Some well lights are fixed and aim straight up, while others let the
lamp module tilt within the housing, and the live range includes both
fixed and adjustable-aim versions. Adjustable costs more and is worth it
on anything aimed at a specific feature, because a tree grows and a
subject centered at install drifts out of the beam over a few seasons.
Aim after dark, with the system energized, and expect to return once
the planting has grown in. A well-lit garden is not finished at
commissioning the way an interior is.
Power, Voltage Drop, and Connections
These are 12 volt fixtures fed from a transformer, and several take a
standard MR16 lamp or an integrated module, which decides whether
output can be changed later without changing the fixture. Well lights
are frequently the farthest fixtures on a run because they sit out among
planting, which makes them the ones most likely to read dim if the run
was not planned.
Lumera's transformers
collection covers the supplies these run from, and measuring at the
fixture rather than at the transformer is what confirms the run actually
works.
The connection itself is the other failure point. Every splice in a
low voltage garden run is underground and permanently damp, so it needs a
waterproof connector rather than a taped joint, and anything tying the
transformer into building wiring is licensed electrician work.
Mowers, Snow, and Mulch
A well light sits flush with grade, which means it will be walked on,
mown over, and in cold climates hit by a snow blade. Fixtures in turf
need a top ring rated to take that load, set slightly below the mowing
height rather than proud of it, and the collection's companion in-ground
units are the ones built for paving and traffic areas.
Where the subject is a wall or building face better lit from a bracket than from grade, Lumera's outdoor wall lights collection covers that alternative.
In planting beds the risk is different: mulch gets topped up each
season and slowly buries the fixture until the beam is blocked. Keep a
small clear collar of gravel around the top ring so the fixture does not
disappear under the next mulch delivery.
Where a Different Fixture Fits Better
Well lights are for uplighting from grade with the fixture hidden.
Where the fixture will be seen and the intent is to light a path or a
bed at low level, a staked fixture is simpler to install and far easier
to service.
Where the subject is a building face lit from a distance rather than a
feature lit from below, an aimable fixture on a bracket usually
performs better than an in-ground unit, and Lumera's flood lights collection covers that approach.
Well Light FAQs
Why do well lights fail so often?
Usually because the hole holds water rather than because the fixture
is inadequate. A sealed fixture sitting submerged for months will
eventually admit moisture regardless of its rating. Set it in a sleeve
on a bed of coarse gravel, away from the low point of the bed, and the
failure rate drops sharply.
Does a higher ingress rating solve the water problem?
It helps and it does not replace drainage. Ratings such as the IP67
class on this range describe resistance to water reaching the fixture,
but seals age and gaskets compress permanently after being reseated.
Treat the rating as protection against what gets through good drainage
rather than as permission to skip it.
What is the difference between a well light and an in-ground light?
They overlap, and the dividing line is load. A well light sits in a
buried canister in soil or mulch for uplighting planting and features.
An in-ground or in-grade unit is built to be walked or driven over, set
into paving with a load-rated lens. Pick by where it sits, not by which
term the catalog uses.
Fixed white or RGBW color changing?
Fixed 3000K suits trees, facades, and anything whose color never
changes, at the lowest cost. The RGBW models set their color through a
phone app, which suits hospitality spaces and seasonal display. Keep one
control type per feature, because a fixed fixture in an app-controlled
scene is the odd unit out the first time the color changes.
How do I stop a well light glaring at people?
Use the louvered or shielded top version, and order it with the
fixture rather than after the complaint. A flat top offers the least
control. Where the fixture sits beside a path, a patio, or a window
sightline, a shield blocking the view from one side is the effective
fix.
Can a well light be driven over or mown across?
In turf it has to survive the mower, so choose a top ring rated for
the load and set it slightly below mowing height. Paving and traffic
areas belong to the in-grade units built for that duty. In planting beds
the bigger risk is mulch gradually burying the fixture, so keep a
gravel collar clear around the top.
