How to Choose Electrical Fittings for Cable Routing and Installation

Electrical fittings help position cables, support wiring runs, and complete connections at electrical boxes and equipment. The correct component depends on its function, not simply its material or nominal size. A cable spacer installed on a wall stud, a J-hook supporting communications wiring, and a connector securing cable at a knockout have different requirements. Before ordering, identify the wiring method, attachment surface, cable dimensions, and installation conditions. Check the manufacturer's exact part number when a product listing uses a general description.

Quick Electrical Fittings Selection Guide

• NM cable along 2x4 framing: Check nail-on or screw-on cable spacers.
• Overhead communications cabling: Select compatible cable hooks with the required support rating.
• Cable entering an electrical box: Match the connector to the cable type and knockout.
• Electrical equipment on siding: Choose mounting hardware designed for the actual siding profile.
• Repeated box or bracket installations: Check the required screw, anchor, and package specifications.

Nail-On vs. Screw-On Cable Spacers for Electrical Wiring

Cable spacers hold compatible wiring in position along framing members. Unlike a connector at an electrical box, a spacer supports and separates cable along its route. The mounting method matters because wood and steel framing may require different attachment hardware.

Arlington's The Spacer series provides a useful example. The CS140 nail-on cable spacer is intended to secure compatible power or low-voltage cables along framing. The related CS140SC screw-on spacer uses a screw attachment instead of a nail.

For a rough-in involving 2x4 wall studs, choose the attachment style that suits the framing and the manufacturer's installation instructions. Do not assume a spacer supports unlimited cables simply because additional cables physically fit.

The permitted number of cables depends on their type and size. Arlington's published specifications for The Spacer series distinguish capacities for 14/2, 12/2, and other cable configurations.

Selection rule: Match the spacer's cable capacity and attachment method before comparing package quantities. Different installation methods may require different part numbers even when the spacer dimensions are similar.

Cable Hooks and Supports for Communications Wiring

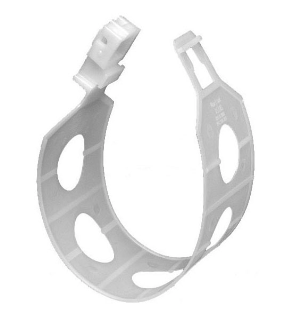

Cable hooks provide support for suitable communications wiring without compressing the entire cable bundle into a tight fastening point. They are useful where cable routing must maintain adequate bend radius and permit future cable additions or maintenance.

For example, an overhead data-cable installation may call for steel or nonmetallic J-hooks mounted to approved structural supports. Arlington's CH1M steel cable hook has a manufacturer-specified 25 lb support rating and is listed for certain air-handling-space applications.

That rating belongs to the specific product, not every cable hook in the collection. The manufacturer also identifies permitted cable capacity and mounting arrangements that must be followed.

For installations containing power cables and communications wiring, confirm the applicable cable separation and support requirements. A hook intended for communications cable should not automatically be used to support conduit or unrelated wiring systems.

If the project requires heavier structural support, compare compatible electrical straps and supports rather than substituting an ordinary cable hook.

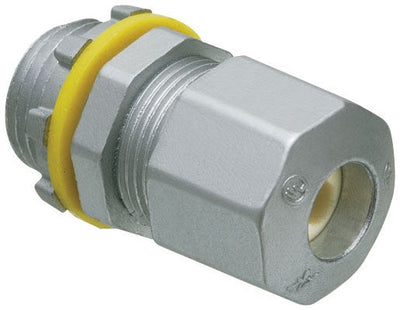

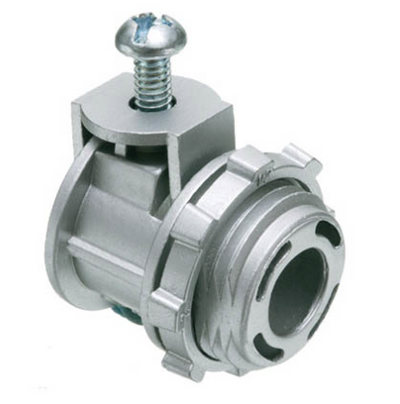

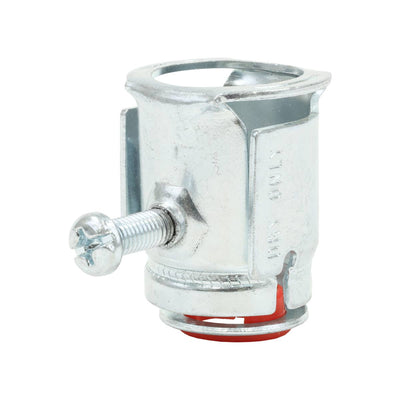

Electrical Cable Connectors: Match the Cable and Box Knockout

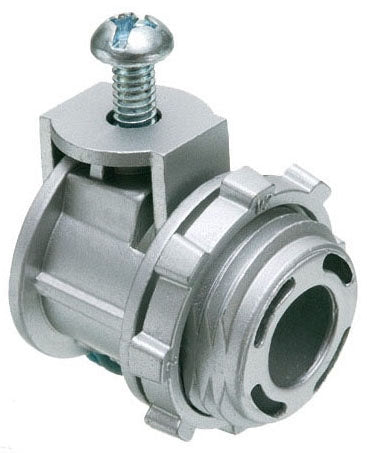

A cable connector secures an approved cable type where it enters an electrical box or enclosure. Selection requires more than matching the diameter of the knockout. The fitting must also accommodate the cable's outside dimensions and construction.

Consider Arlington's 8401 die-cast zinc connector. The manufacturer's specifications identify a 1/2-inch knockout connection and a cable range of 0.225 to 0.610 inches. These are two different measurements: the knockout size describes the enclosure opening, while the cable range describes the cable dimensions the fitting accepts.

A connector with the correct knockout size may still be unsuitable for a particular cable. Confirm whether the product is approved for the actual NM, SE, armored, or other cable type specified for the installation.

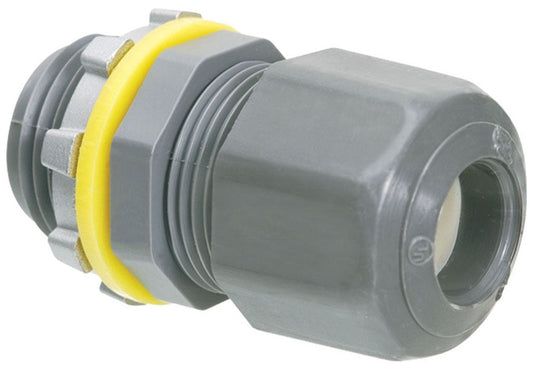

For flexible equipment cords requiring cable-jacket retention or environmental sealing, review compatible cable glands and cord grips. These products address different entry requirements from conventional building-cable connectors.

Selection rule: Check the cable type, cable dimensions, knockout size, and listed installation conditions together. Do not treat connectors with the same nominal trade size as interchangeable.

Electrical Mounting Accessories: Siding Kits, Screws, and Anchors

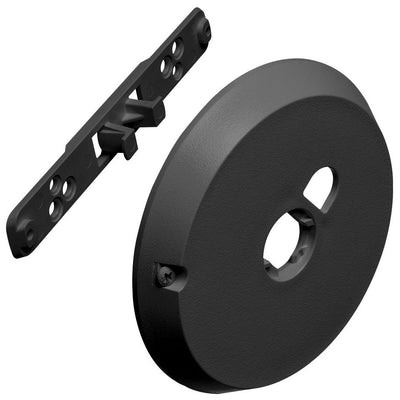

Some components listed as general electrical fittings are actually mounting accessories for specific installation surfaces. Their primary purpose is to position or attach electrical equipment rather than join sections of conduit.

For example, Arlington's 8171 is a siding mounting kit with an integrated electrical box designed for Dutch lap siding. According to the manufacturer, the kit includes a 6.8-cubic-inch box, an NM cable connector, and mounting screws.

That product should be selected by siding profile, box requirements, and mounting instructions. It is not a universal substitute for an ordinary conduit fitting or electrical box.

Other installations may require separate mechanical fasteners. Lumera's electrical fittings assortment includes Orbit screw and anchor kits intended for mounting-related work.

When fastening components into suitable framing or threaded equipment openings, compare compatible electrical screws and bolts. For installations on masonry, concrete, or other approved substrates, review electrical anchors and verify the required embedment and fastener compatibility.

Outdoor installations introduce additional requirements. UV-rated plastic is formulated for sunlight exposure, but UV resistance alone does not establish that the complete electrical assembly is approved for wet locations.

Where the installation requires a separate outdoor enclosure, select an appropriately rated product from weatherproof electrical boxes.

Electrical Fittings vs. Dedicated Conduit Connectors and Accessories

Electrical fittings is a broad product term, but individual wiring methods require specific hardware. An ordinary cable spacer cannot replace a conduit connector, and a general mounting accessory does not provide the same function as a listed raceway termination.

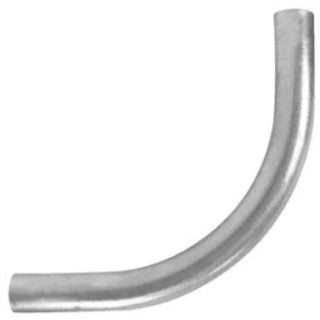

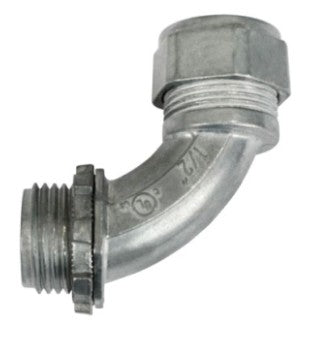

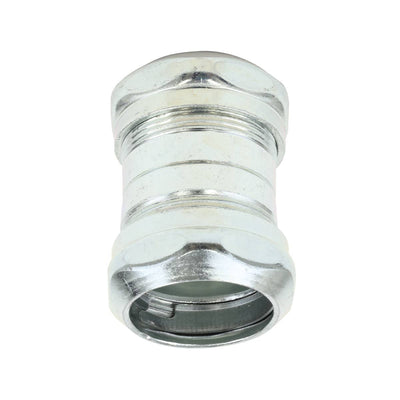

For a 3/4-inch EMT run entering a metal junction box, begin with EMT connectors and couplings that match the tubing and installation environment.

When the raceway needs an accessible pulling point or changes direction, suitable conduit bodies and condulets provide a different function.

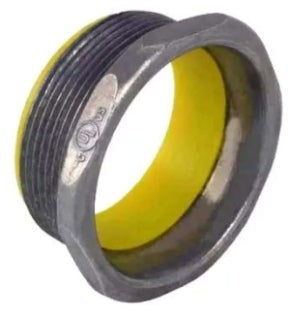

At a raceway termination, conduit and grounding bushings may be required for conductor protection or specified bonding arrangements.

These components should not be selected solely by appearance. Each must match the wiring method, applicable trade size, grounding requirements, and installation environment.

Once conductors reach an approved electrical box, use suitable wire connectors and splicing components for the specified conductors and connection method. A mechanical cable fitting does not replace an electrical splice connector.

Electrical Fitting Materials: Plastic, Steel, and Die-Cast Zinc

Material affects mechanical performance, electrical characteristics, and environmental suitability, but it does not establish a fitting's application by itself.

Nonmetallic cable spacers are useful where their design and listing permit cable positioning along framing. Steel supports may provide an appropriate mechanical solution for specified cable-support installations. Die-cast zinc is used in many electrical cable connectors and related fittings.

For example, a steel cable hook with a specified load rating should not be replaced by an unrelated plastic fitting simply because both have similar dimensions.

When comparing materials, check:

• Mechanical requirements: The permitted load, attachment method, and supported components.
• Electrical requirements: Grounding or bonding provisions where applicable.
• Installation environment: Dry, damp, wet, or other specified location conditions.
• Material compatibility: Corrosion exposure and contact with surrounding materials.
• Product listing: The exact approved application and installation instructions.

For outdoor installations, verify the required UV or corrosion resistance on the specific model. A material description such as plastic or steel does not automatically confirm outdoor approval.

Electrical Fitting Pack Sizes: Order by Pieces, Not Just Packages

Package quantity is particularly important when purchasing fittings for repeated installations. Similar products may be offered in small contractor packs or larger cartons.

For example, Arlington's CS14 nail-on cable spacers are available in a 25-piece package, while the related CS140 configuration is sold in a 500-piece package. The corresponding screw-on versions also have different packaging options.

For a project requiring 300 cable spacers, one 500-piece carton may simplify purchasing compared with multiple smaller packages. However, that choice should follow the confirmed mounting requirements and expected usage.

Always distinguish between the number of packages and the number of individual fittings. Ordering a quantity of four against a 100-piece pack means 400 individual components, not four.

Before choosing a larger package, confirm the manufacturer part number, mounting style, individual piece dimensions, and package count. A lower cost per piece offers little value if the selected product does not match the installation.

Ordering Electrical Fittings for Commercial Projects

For an electrical project with multiple wiring and mounting requirements, prepare the material list by application rather than grouping every accessory under a single fitting description.

Include the following information:

• Manufacturer and exact part number
• Fitting function and compatible wiring method
• Cable, conduit, or knockout dimensions where applicable
• Mounting surface and attachment method
• Material and required environmental suitability
• Product listing or project specification requirements
• Package quantity and total number of individual pieces

Eligible business buyers can review Lumera Electric's trade account options for recurring electrical material purchases.

Request a Quote for Electrical Fittings

For larger quantities or projects requiring multiple fitting types, request a project quote from Lumera Electric.

Have your part numbers, package quantities, required installation conditions, and material schedule ready. Where a product description is broad, include the manufacturer's catalog number so the requested item can be identified accurately before ordering.

Electrical Fittings FAQs

What is the difference between a cable spacer and a cable hook?

A cable spacer positions compatible cables along framing, while a cable hook supports suitable cable runs from an approved attachment point. Nail-on and screw-on spacers serve common framing applications; J-hooks are frequently used for communications cabling. The two products have different mounting and capacity requirements. For larger cable-routing projects, compare appropriate cable-management accessories alongside the specified supports.

Does a 1/2-inch electrical fitting work with any 1/2-inch cable?

No. A 1/2-inch designation may identify the fitting's trade size or the electrical-box knockout rather than the outside diameter of the cable it accepts. For example, Arlington's 8401 connector has a 1/2-inch knockout size but a separate specified cable range. Check both dimensions and the approved cable type before ordering.

Can electrical cable hooks be installed in plenum spaces?

Some cable hooks are listed for air-handling-space applications, but not every hook has that approval. Arlington identifies particular CH-series hooks as suitable for specified air-handling installations. The approval applies to the exact model and its stated conditions. Verify the product listing, cable type, support method, and applicable building requirements before installation.

Are plastic electrical fittings suitable for outdoor use?

Only when the specific fitting is identified for the intended outdoor conditions. UV-rated plastic can resist deterioration from sunlight, but that property alone doesn't establish suitability for rain exposure, direct burial, or wet electrical connections. Confirm the manufacturer's environmental and installation requirements. For raceway-specific outdoor hardware, review conduit fittings and connectors designed for the appropriate wiring method.

Can cable spacers replace conduit straps or supports?

No. Cable spacers and conduit supports perform different functions. A spacer intended to position NM or low-voltage cable should not automatically be used to fasten electrical raceway. Conduit supports must match the raceway type, size, mounting surface, and applicable support requirements. Select the component from its approved application rather than from its ability to physically hold the material.

Are electrical fittings sold individually or in contractor packs?

Both purchasing formats may be available, depending on the product. Some Arlington cable spacers and hooks are packaged in quantities of 25, 50, 100, or 500, while certain installation accessories are sold individually. The package quantity should be checked on the exact listing. For project orders, calculate the total number of individual pieces before entering the purchase quantity.
