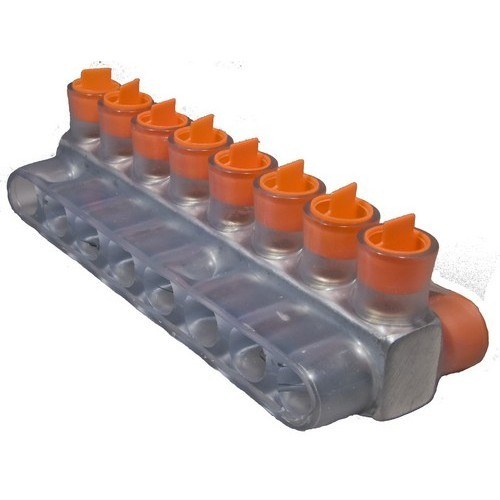

Morris 97362 Clear Insulated Connector, Dual Side Entry, 2/0 AWG, 8-Port

Product Overview

The Morris 97362 is an 8‑port, clear plastisol‑dipped insulated set‑screw connector with dual side entry, accepting 2/0–14 AWG conductors. The conductive body is 6061‑T6 aluminum, CU9AL dual rated and pre‑filled with oxide inhibitor for copper and aluminum use.

Rated 600V and listed to UL 486A/486B, the 97362 is service‑entrance rated for indoor splicing and multi‑tap terminations in panels, troughs, gutters, and junction boxes.

Key Features

• CU9AL dual rated for copper and aluminum conductors
• 6061‑T6 aluminum conductive body with clear plastisol high‑dielectric insulation
• Pre‑filled with oxide inhibitor for CU/AL use
• Dual side entry, 8 ports, accepts one wire per terminal (wire range 2/0–14 AWG)
• Rated 600V; temperature range −45°C to 90°C (−49°F to 194°F)
• UL 486A/486B listed and service‑entrance rated for indoor use
• Plugs marked with maximum wire size; clear insulation allows visual inspection and re‑entry

What this connector does

The Morris 97362 provides insulated set‑screw terminations for splicing and multi‑tap connections. Each of the eight ports accepts a single conductor and permits re‑entry for inspection or troubleshooting.

• In‑line splicing and multi‑tap terminations for service‑entrance and feeder conductors
• Individually accessible ports allow inspection without destroying the dip insulation

Electrical ratings and conductor compatibility

This connector is rated for 600 volts and accepts conductors sized 2/0 through 14 AWG. It is CU9AL dual rated for use with copper and aluminum conductors and is pre‑filled with oxide inhibitor to support CU/AL connections.

• Voltage rating: 600V
• Wire range: 2/0–14 AWG
• Conductor compatibility: Copper or Aluminum (CU9AL)

Installation and serviceability

Strip each conductor to the marked length, insert one wire per port, and tighten the set screws using the appropriate hex or slotted driver. The clear plastisol insulation and one‑wire‑per‑terminal design make visual confirmation and re‑entry possible.

• Strip to marked length, insert conductor, tighten set screw with matching driver
• Clear insulation aids visual confirmation of conductor placement
• Re‑entry friendly for troubleshooting and inspections

Materials and physical features

The conductive body is machined from 6061‑T6 aluminum and the connector is dip‑insulated with clear plastisol for high dielectric protection. Ports are marked with maximum wire size for quick identification.

• Body material: 6061‑T6 aluminum
• Insulation: clear plastisol high‑dielectric dip
• Entry: dual side entry, 8 ports, one wire per terminal

Recommended applications

Intended for indoor terminations of service‑entrance and feeder conductors inside panels, gutters, troughs, and junction boxes where a CU/AL rated, re‑enterable insulated set‑screw connector is required.

• Service‑entrance and feeder splices in indoor electrical enclosures
• Multi‑tap terminations where inspection access is needed

Before You Order

Confirm the model number and quantity before ordering; this product is service‑entrance rated for indoor use and CU9AL dual rated for copper and aluminum conductors.

• Verify wire sizes and intended indoor application match this connector's ratings
• Have an appropriate hex or slotted driver available for the set screws

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 97362 Clear Insulated Connector, Dual Side Entry, 2/0 AWG, 8-Port. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
