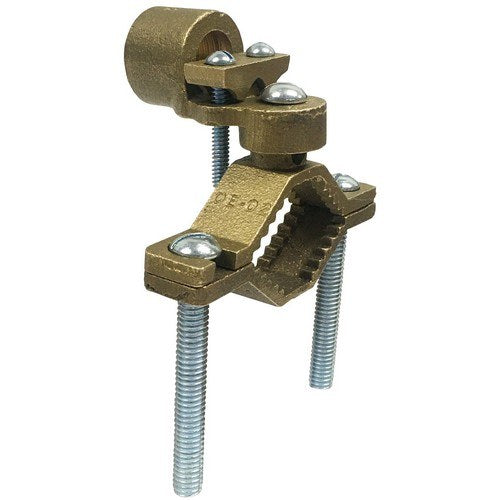

Morris 91702 Rotatable Rigid-Conduit-Hub Ground Clamp, 1/2" - 1" Pipe, 3/4" Hub
Morris 91702 Rotatable Rigid-Conduit-Hub Ground Clamp, 1/2" - 1" Pipe, 3/4" Hub
Regular price
$27.54
Regular price
Sale price
$27.54
SKU:91702
Quantity
Couldn't load pickup availability
Morris's 91702 is a copper ground clamp with a 3/4" rotatable rigid-conduit hub for connecting electrical conduit to 1/2" - 1" water pipe, copper tubing, or a ground rod, terminating a 2/0 AWG - 10 AWG conductor. The serrated conduit adaptor swings 360 degrees for easy alignment, and it is cast from high-strength, high-conductivity copper alloy with zinc-plated steel set screws.
Key Features
- 3/4" Rotatable Rigid-Conduit Hub
- Serrated Conduit Adaptor Swings 360 Degrees for Easy Alignment
- For Connecting Conduit to Water Pipe, Copper Tubing, or Ground Rod
- Cast of High-Strength, High-Conductivity Copper Alloy
- Zinc-Plated Steel Set Screws for Corrosion Resistance
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91702 |
| Type | Copper Ground Clamp - Rotatable Rigid Conduit Hub |
| Pipe Range | 1/2" - 1" |
| Conduit Hub Size | 3/4" |
| Wire Range | 2/0 AWG - 10 AWG |
| Material | Copper Alloy |
| Set Screw | Zinc-Plated Steel |
Applications
Used to bond 3/4" rigid conduit to 1/2" - 1" water pipe, copper tubing, or a ground rod with 360-degree hub alignment.
Installation
Thread the conduit into the rotatable hub, set the angle, clamp to the pipe, insert the conductor, and tighten the set screws.
