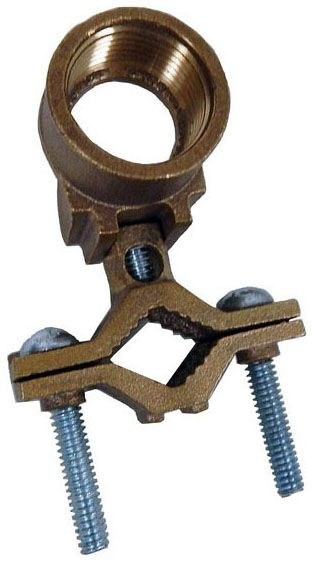

Morris 90602 Copper Ground Clamp, 1/2" - 1" Pipe, 3/4" Conduit Hub
Morris 90602 Copper Ground Clamp, 1/2" - 1" Pipe, 3/4" Conduit Hub
Regular price
$10.57
Regular price
Sale price
$10.57
SKU:90602
Quantity
Couldn't load pickup availability
Morris's 90602 is a copper ground clamp with a 3/4" rigid-conduit hub for bonding a grounding conductor in rigid conduit to 1/2" - 1" water pipe, ground rod, or copper-weld tubing. The hub swings 360° for easy alignment, it is cast from high-strength, high-conductivity copper alloy with zinc-plated steel set screws, and it accepts #2 to #10 conductors.
Key Features
- 3/4" Rigid-Conduit Hub with Standard Collar and Adaptor
- Hub Swings 360° for Easy Alignment
- For Connecting a Grounding Conductor in Rigid Conduit to Water Pipe, Ground Rod, or Copper-Weld Tubing
- Cast of High-Strength, High-Conductivity Copper Alloy
- Zinc-Plated Steel Set Screws
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90602 |
| Type | Copper Ground Clamp - Rigid Conduit Hub |
| Water Pipe Range | 1/2" - 1" |
| Conduit Hub Size | 3/4" |
| Wire Range | #2 - #10 AWG |
| Material | Copper Alloy |
| Set Screw | Zinc-Plated Steel |
Applications
Used to bond a grounding conductor in 3/4" rigid conduit to 1/2" - 1" water pipe, ground rod, or copper-weld tubing.
Installation
Thread the conduit into the 360-degree hub, clamp the assembly to the pipe, insert the conductor, and tighten the set screws.
