CTRLW-DMXB-RGBW-4Z DMX RGBW Wall Control

Product Overview

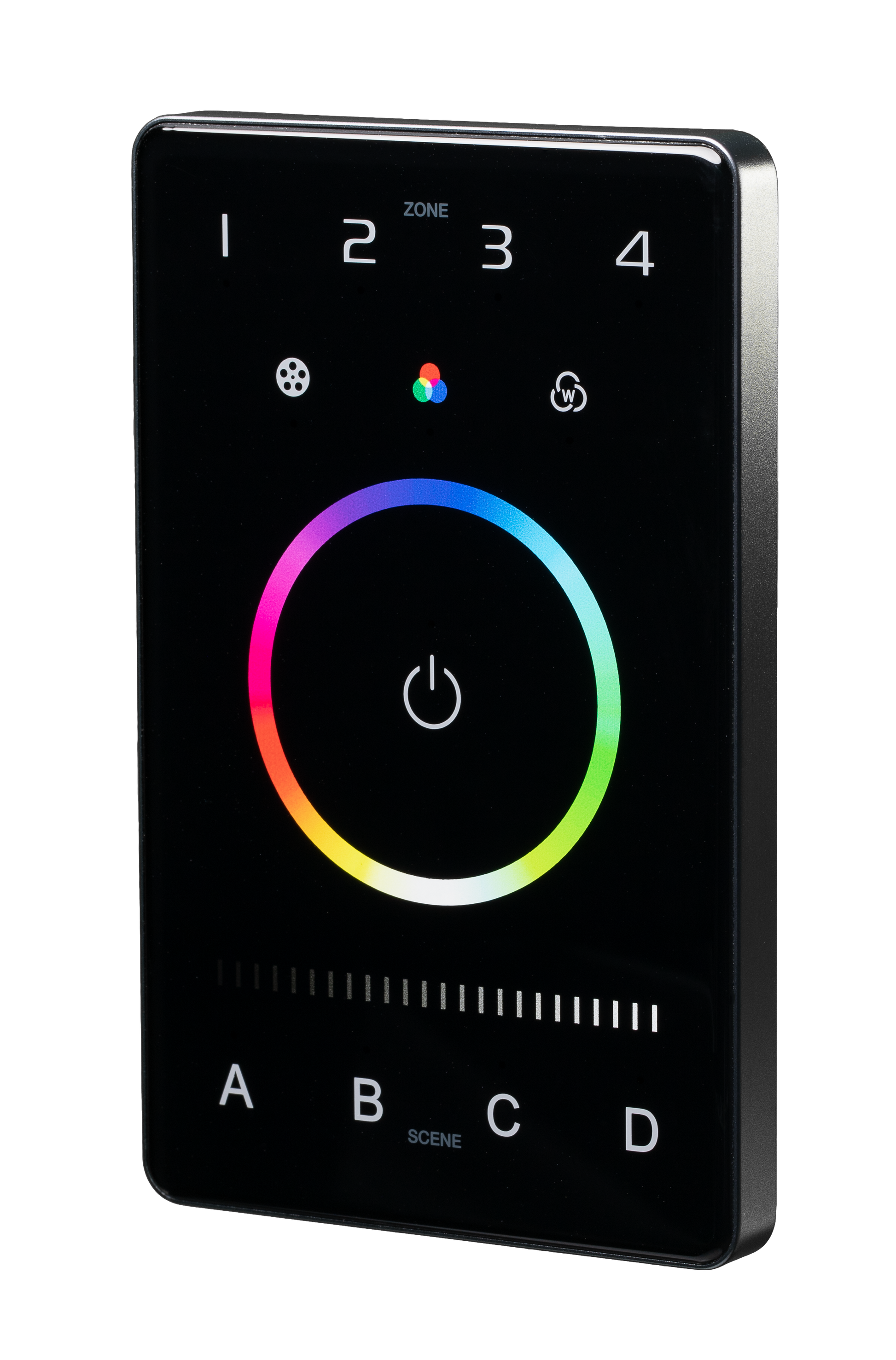

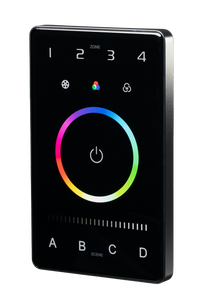

The CTRLW-DMXB-RGBW-4Z is a black touch-panel wall control for DMX RGBW lighting systems. It accepts 12–24VDC input and is designed to operate with DMX decoders or via a Bluetooth (BLE) app.

Wall-mount form factor with compact dimensions—2.96 in length × 1.15 in width × 4.75 in height—intended to replace or mount in standard wall-box installations where a DMX RGBW control interface is required.

Key Features

• DMX RGBW touch control interface for color and zone adjustments
• Compatible with DMX decoders and controllable via BLE app
• 12–24VDC input voltage range
• Black finish with compact wall-mount form factor
• Sold as a single unit: SKU CTRLW-DMXB-RGBW-4Z

What this control does

The CTRLW-DMXB-RGBW-4Z is a DMX RGBW touch-panel wall control that provides a user interface for color mixing and zone control of RGBW LED fixtures. It is intended to be used as the local control surface in lighting installations that employ DMX decoders or a compatible Bluetooth (BLE) control app.

• Touch-panel operation for RGBW color adjustments and zone selection
• Designed for wall-mount installation to replace or mount alongside standard wall boxes

Electrical input and system requirements

This control accepts a 12–24VDC input. It is intended to be integrated into a DC-powered DMX RGBW lighting system and relies on an appropriate DMX decoder or BLE-enabled controller to drive fixtures.

• Input voltage: 12–24VDC
• Requires external DMX decoder or BLE-capable controller to interface with LED loads

Compatibility with DMX decoders and BLE app

The device is designed for use with DMX decoders and may be operated through a Bluetooth (BLE) app where such functionality is supported. Use with specific decoders, controllers, or apps must be confirmed against those devices' compatibility lists and wiring diagrams.

• Operates with DMX decoders
• Can be controlled via a BLE app where supported

Dimensions and physical finish

The CTRLW-DMXB-RGBW-4Z is a compact wall-mounted control finished in black. Confirm physical fit for your installation before ordering.

• Product length: 2.96 in
• Product width: 1.15 in
• Product height: 4.75 in
• Finish: Black

Ordering guidance

Confirm the model number and the quantity required before ordering. Ensure your system provides 12–24VDC and that you have a compatible DMX decoder or BLE-capable controller to integrate this control into your lighting system.

• SKU / Part Number: CTRLW-DMXB-RGBW-4Z
• Sold as: Each

Before You Order

Confirm the CTRLW-DMXB-RGBW-4Z model number and verify that your installation provides 12–24VDC. Confirm compatibility with the DMX decoder or BLE app/controller you plan to use, and verify the physical dimensions for your wall-box or mounting location.

• Verify 12–24VDC supply is available
• Confirm the DMX decoder or BLE controller compatibility
• Measure wall-box or mounting area to ensure the control fits

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for CTRLW-DMXB-RGBW-4Z DMX RGBW Wall Control. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
