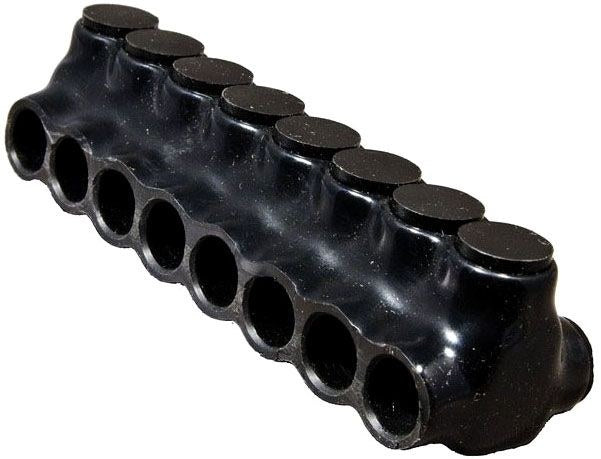

Morris 97618 Black Insulated Connector, Dual Side Entry, 4 AWG, 8-Port
Morris 97618 Black Insulated Connector, Dual Side Entry, 4 AWG, 8-Port
Regular price
$76.03
Regular price
Sale price
$76.03
SKU:97618
Quantity
Couldn't load pickup availability
Morris's 97618 is a black insulated connector, dual side entry accepting a 4-14 wire range and rated 600V. The 6061-T6 aluminum body carries black plastisol-dipped high-dielectric insulation and is pre-filled with oxide inhibitor for dual copper and aluminum use.
Key Features
- CU9AL Dual Rated for Copper and/or Aluminum
- 6061-T6 Aluminum Body
- Pre-filled with Oxide Inhibitor
- Black Plastisol-Dipped High-Dielectric Insulation
- Plugs Marked with Max Wire Size for Easy ID
- UV Rated, Rated for Use with 90°C Cables
- Easy Re-Entry for Inspection & Troubleshooting
- One Wire Per Terminal
- 600V, -49°F to 194°F (-45°C to 90°C)
- UL 486A/486B Listed, Service Entrance Rated, Indoor Use Only
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 97618 |
| Type | Black Insulated Connector, Dual Side Entry |
| Wire Range | 4-14 |
| Ports | 8 |
| Entry | Dual Side |
| Conductor | Copper / Aluminum (CU9AL) |
| Insulation | Black Plastisol |
| Voltage | 600V |
| Temperature Rating | -45°C to 90°C |
| Listing | UL 486A/486B |
| Material | 6061-T6 Aluminum |
Applications
Used for in-line splicing and multi-tap terminations of service-entrance and feeder conductors in panels, gutters, troughs, and junction boxes for indoor copper or aluminum runs.
Installation
Strip each conductor to the marked length, insert one wire per port, and tighten the set screws to the rated torque with the matching hex or slotted driver.
