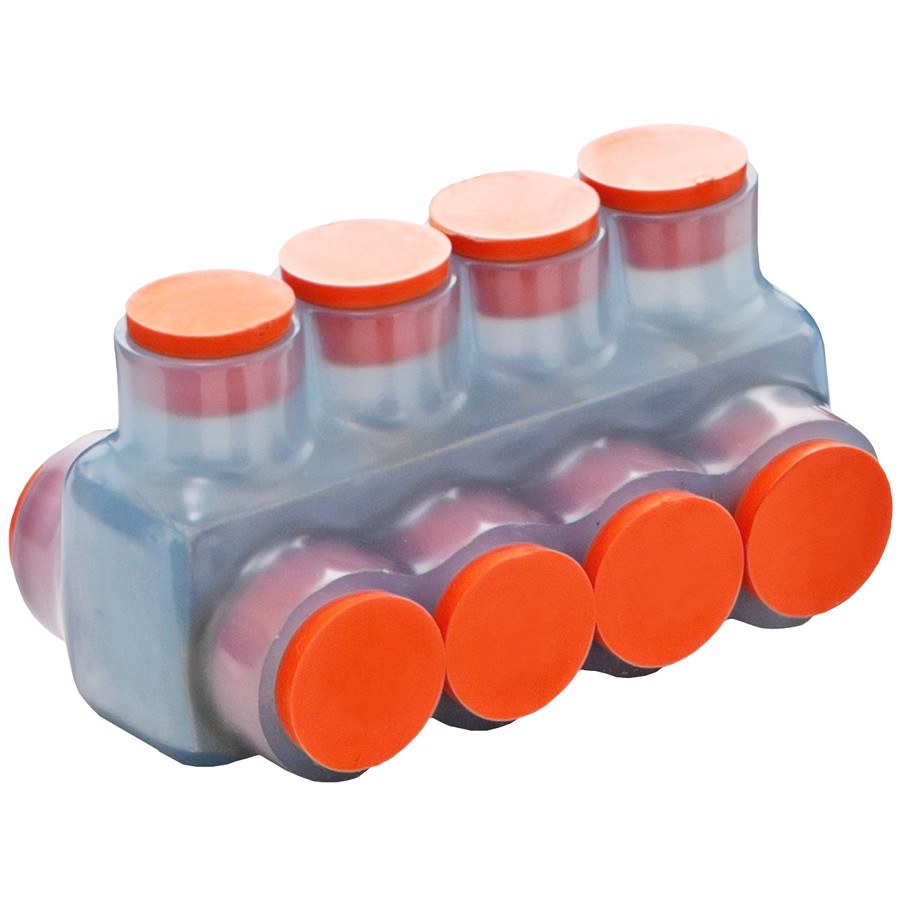

Morris 97396 Clear Insulated Connector, Dual Side Entry, 250 MCM, 4-Port

Product Overview

The Morris 97396 is a clear, plastisol-dipped insulated set-screw connector with dual side entry and four ports that accepts conductors in the 250–6 AWG range. It is CU9AL dual-rated for copper or aluminum conductors and carries a 600V rating.

The connector has a 6061‑T6 aluminum body pre-filled with oxide inhibitor, clear high-dielectric plastisol insulation for visual inspection, and is UL 486A/486B listed and service-entrance rated for indoor use.

Key Features

• Wire range: 250–6 AWG
• Four ports with dual side entry (one wire per terminal)
• CU9AL dual-rated for copper and aluminum conductors
• 6061‑T6 aluminum body pre-filled with oxide inhibitor
• Clear plastisol-dipped high-dielectric insulation for visual inspection
• Plugs marked with maximum wire size for identification
• 600V voltage rating; temperature rating -45°C to 90°C (-49°F to 194°F)
• UL 486A/486B listed and service-entrance rated for indoor use

What this connector does

The Morris 97396 provides a one-wire-per-terminal set-screw splice for in-line connections and multi-tap terminations. The clear insulation permits visual verification of conductor entry; the connector body is pre-filled with oxide inhibitor for use with copper or aluminum conductors within its listed ratings.

• Four-port configuration for branching or multi-tap terminations
• Dual side entry for routing flexibility
• Pre-filled oxide inhibitor applied to the conductor body

Recommended applications

Appropriate for indoor service-entrance and feeder conductor splices and multi-tap terminations in panels, gutters, troughs, and junction boxes where an indoor, service-entrance rated connector is required.

• Service-entrance and feeder splices (indoor use)
• Panel and junction box terminations
• Indoor electrical distribution splicing within listed ratings

Electrical ratings and conductor compatibility

The connector is rated 600V and is UL 486A/486B listed. It is CU9AL dual-rated for copper and aluminum conductors and accepts a wire range of 250–6 AWG. Temperature rating is -45°C to 90°C (-49°F to 194°F).

• Voltage rating: 600V
• Wire range: 250–6 AWG
• Compatibility: copper and aluminum (CU9AL)
• Temperature rating: -45°C to 90°C (-49°F to 194°F)

Installation and inspection

Strip each conductor to the marked length, insert one conductor per port, and tighten the set screws using the appropriate hex or slotted driver. The clear plastisol insulation and marked plugs enable visual inspection and re-entry for troubleshooting.

• One wire per terminal — do not double up conductors in a port
• Use the matching driver for the set screws
• Clear insulation permits visual inspection without removing the connector

Materials and identification

The conductor body is 6061‑T6 aluminum and the connector is dipped in clear plastisol high-dielectric insulation. Plugs are marked with maximum wire size to aid identification during installation and maintenance.

• Body material: 6061‑T6 aluminum
• Insulation: clear plastisol
• Plugs marked with maximum wire size

Before You Order

Confirm the model number and conductor sizes required for your project.

• Verify conductor type (copper or aluminum) and AWG sizes fall within 250–6 AWG.
• Plan for one wire per terminal; do not double up conductors in a port.
• Ensure the connector’s indoor service-entrance rating and voltage rating match project requirements.
