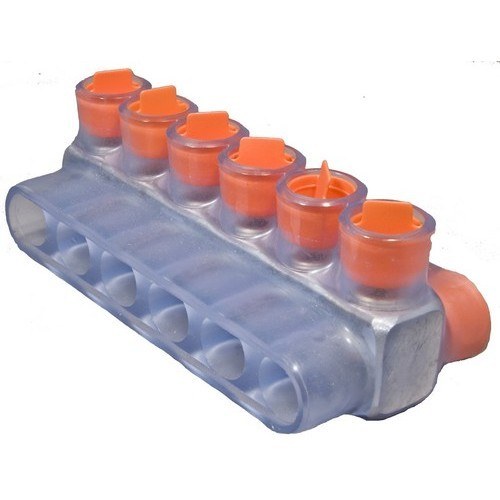

Morris 97376 Clear Insulated Connector, Dual Side Entry, 3/0 AWG, 6-Port

Product Overview

The Morris 97376 is a clear, plastisol-dipped, dual side entry insulated set-screw connector with six ports that accepts conductors from 3/0 to 14 AWG and is CU9AL rated for copper or aluminum conductors.

It has a 6061-T6 aluminum conductive body pre-filled with oxide inhibitor, is listed to UL 486A/486B, service-entrance rated for indoor use, and is rated for 600V and temperatures from -45°C to 90°C (-49°F to 194°F).

Key Features

• CU9AL rated for copper and aluminum conductors
• Wire range: 3/0–14 AWG; six ports, one wire per terminal
• 6061-T6 aluminum body pre-filled with oxide inhibitor
• Clear plastisol-dipped high-dielectric insulation for visual inspection
• Dual side entry with plugs marked for maximum wire size
• UL 486A/486B listed; service-entrance rated for indoor use
• Voltage rating: 600V; Temperature rating: -45°C to 90°C (-49°F to 194°F)

Function and intended use

The Morris 97376 is intended for in-line splicing and multi-tap terminations of service-entrance and feeder conductors where a UL-listed, re-enterable, insulated set-screw connector is required. The dual side entry and six-port configuration allow multiple conductors to be connected in a compact assembly.

• One wire per terminal
• Dual side entry for flexible routing and re-entry
• Clear insulation permits visual verification of conductor placement

Electrical ratings and materials

This connector is CU9AL rated for copper and aluminum conductors and is listed to UL 486A/486B. The conductive element is made from 6061-T6 aluminum and is pre-filled with oxide inhibitor to help protect terminations.

• Wire range: 3/0–14 AWG
• Voltage rating: 600V
• Temperature rating: -45°C to 90°C (-49°F to 194°F)

Installation and serviceability

Strip each conductor to the marked length, insert one conductor per port, and tighten the set screws with the matching hex or slotted driver to the appropriate torque. The clear plastisol insulation is re-enterable for inspection and troubleshooting.

• Plugs are marked with maximum wire size for identification
• Pre-filled oxide inhibitor is present in the connector
• Intended for indoor use and service-entrance rated

Typical applications

Appropriate for connecting service-entrance and feeder conductors in electrical panels, gutters, troughs, and junction boxes where an indoor, UL-listed insulated connector is required for copper or aluminum conductors.

• Panel splices and taps
• Feeder and service-entrance terminations
• Indoor junction boxes and troughs

Before You Order

Confirm the model number and conductor sizes required for your installation and that indoor use and the listed ratings meet your application.

• Verify conductor sizes (3/0–14 AWG) and that one wire per terminal fits your design
• Confirm CU9AL dual-rating is acceptable for your installation and local code requirements
• Ensure you have the appropriate hex or slotted driver for the set screws
