Morris 97373 Clear Insulated Connector, Dual Side Entry, 3/0 AWG, 3-Port

Product Overview

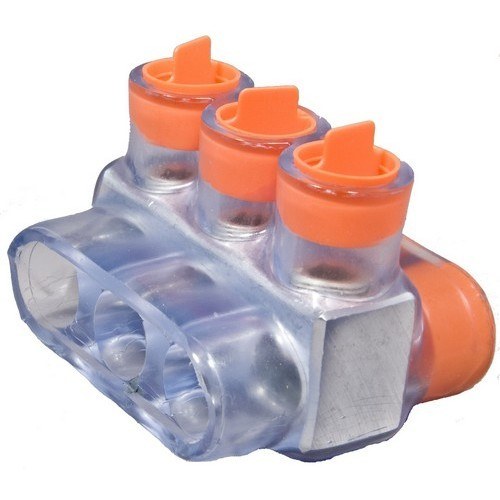

The Morris 97373 is a clear, plastisol-dipped insulated set-screw connector with dual side entry and three ports. It accepts conductors from 3/0 to 14 AWG and is CU9AL dual rated for copper or aluminum conductors.

Machined from 6061‑T6 aluminum, pre-filled with oxide inhibitor and fitted with plugs marked for wire size identification, the 97373 is rated 600V and listed to UL 486A/486B for indoor service-entrance and feeder splicing and multi-tap terminations.

Key Features

• CU9AL dual rated for copper and aluminum conductors
• Wire range: 3/0–14 AWG; 3 ports, one wire per terminal
• 6061‑T6 aluminum body with clear plastisol high-dielectric insulation
• Pre-filled with oxide inhibitor
• Dual side entry for flexible access; plugs marked with max wire size
• Temperature rating: -45°C to 90°C (-49°F to 194°F); Voltage rating: 600V
• Listed to UL 486A/486B; Service Entrance rated for indoor use

What this connector does

The Morris 97373 provides an insulated set-screw connection for splicing and multi-tap terminations where a three-port junction is required. It is intended for indoor service-entrance and feeder applications in panels, gutters, troughs, and junction boxes.

• Accepts one conductor per terminal for discrete terminations
• Dual side entry allows flexible routing and re-entry
• Clear insulation permits visual inspection of the conductor area

Electrical ratings and conductor compatibility

Use this connector where its electrical ratings meet your system and code requirements. It is rated for 600 volts and is CU9AL dual rated to accept both copper and aluminum conductors.

• Wire range: 3/0 to 14 AWG
• Voltage rating: 600V
• Temperature rating: -45°C to 90°C (-49°F to 194°F)

Installation and physical configuration

The 97373 is a dual side entry, three-port set-screw connector. Conductors are stripped to the marked length, inserted one per port, and retained with set screws using the matching hex or slotted driver.

• Strip each conductor to the marked length on the connector
• Insert one wire per port and tighten set screws with the appropriate driver
• Plugs are marked with maximum wire size to aid identification and re-entry

Materials, insulation, and certifications

The connector body is machined from 6061‑T6 aluminum and the assembly is plastisol-dipped to provide clear, high-dielectric insulation. The connector is pre-filled with an oxide inhibitor to support use with copper and aluminum conductors.

The unit is listed to UL 486A/486B and is Service Entrance rated for indoor use.

• Body: 6061‑T6 aluminum
• Insulation: clear plastisol (high-dielectric)
• Pre-filled with oxide inhibitor
• Listings: UL 486A/486B; Service Entrance rated (indoor use)

Before You Order

Confirm the Morris model number and required quantity before ordering and verify that the 3/0–14 AWG range, 600V rating, and indoor Service Entrance listing fit your application and local code.

• One wire per terminal — ensure conductor sizes match the connector’s marked strip length.
