Morris 91764 U-Bolt Ground Clamp, 2-Conductor, 3-1/2" Pipe, 250 MCM - #4 AWG
Morris 91764 U-Bolt Ground Clamp, 2-Conductor, 3-1/2" Pipe, 250 MCM - #4 AWG
Regular price
$88.60
Regular price
Sale price
$88.60
SKU:91764
Quantity
Couldn't load pickup availability

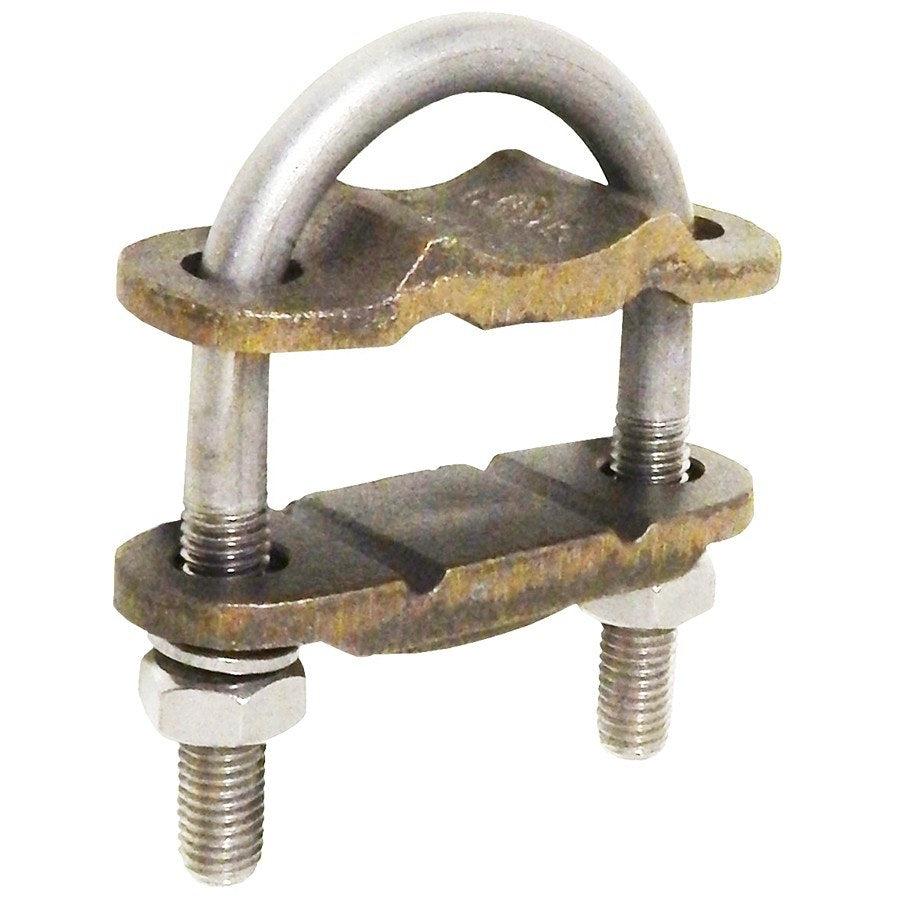

Morris's 91764 is a UL467 copper U-bolt ground clamp that connects two 250 MCM - #4 AWG ground wires parallel or 90 degrees to 3-1/2" water pipe, copper tubing, a ground rod, rebar, or fencing. It is cast from high-strength, high-conductivity copper alloy with stainless steel bolts, nuts, and lock washers.
Key Features
- U-Bolt Style Clamp
- Connects 2 Ground Wires Parallel or 90 Degrees to Water Pipe, Copper Tubing, Ground Rod, Rebar, or Fencing
- Cast of High-Strength, High-Conductivity Copper Alloy
- Stainless Steel Bolts, Nuts, and Lock Washers
- UL467 Listed for Direct Burial in Soil or Concrete
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91764 |
| Type | Copper U-Bolt Ground Clamp |
| Conductors | 2 |
| Pipe Size | 3-1/2" |
| Wire Range | 250 MCM - #4 AWG |
| Material | Copper Alloy |
| Hardware | Stainless Steel |
| Listing | UL467 Direct Burial |
Applications
Used to bond two 250 MCM - #4 AWG ground conductors to 3-1/2" pipe, ground rod, rebar, or fencing in direct-buried grounding-electrode systems.
Installation
Set the U-bolt around the pipe, seat both conductors, and tighten the nuts to clamp them.
